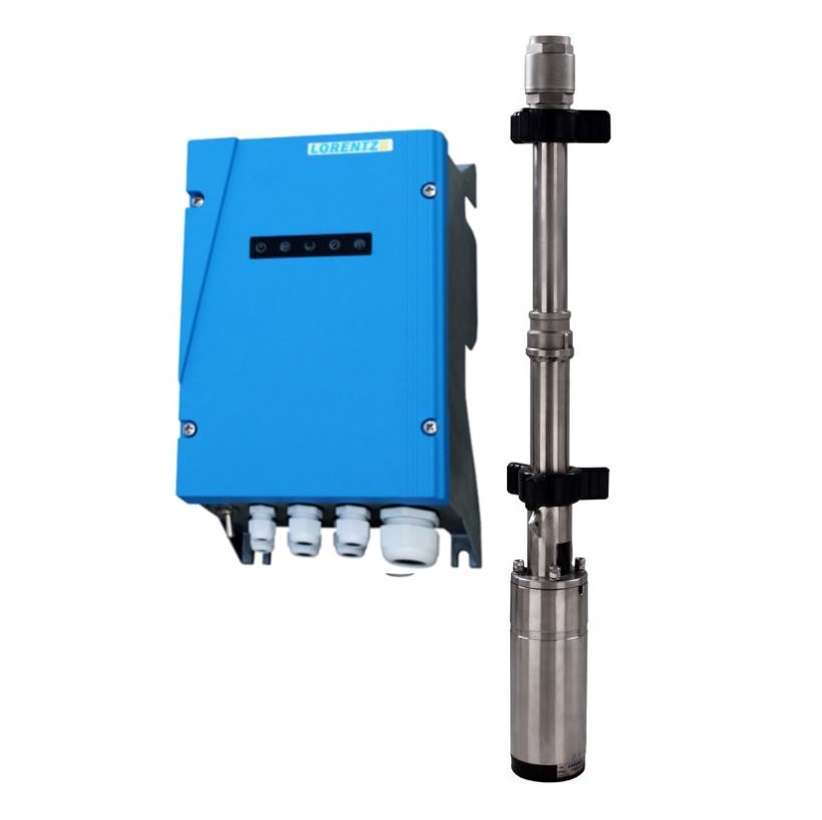

LORENTZ PS4000 HR-14HL Submersible Pump System
LORENTZ PS4000 HR-14HL Submersible Pump System are high quality products designed to supply applications High flow water, livestock watering, and irrigation tank management. Systems carry eccentric screw pump water economically,. These highly efficient pumps can achieve flow rates up to .Each system consists of a pump, a motor and a controller. This modular concept keeps all the electronics above the surface, enabling easy maintenance, easy access and low cost for the property.
LORENTZ PS4000 HR-14HL Submersible Pump System Applications
- Water supply
- Management of the water tank
- chanels
- Drinker won
- Compression systems
Features
- Quick, trouble-free
- excellent functionality
- High reliability and durability
- Short cycle return on investment (ROI)
- Lowest total cost of operation (TCO)
Specifications
-
Dynamic height max. 180 m
-
Flow max. 2,5 m³ / h
-
Vmp *> 238 V
-
Voc max. 375 V
Controller: PS4000
- Control and monitor
- Control inputs for dry run protection, remote control, etc..
- Protected against reverse polarity, overload and temperature execiva
- integrated MPPT
- Low Voltage Disconnect battery operation mode
Engine: 4000-HR ECDRIVE
- Brushless DC motor – maintenance free
- Filled with water
- Without electronic elements on the engine
- Immersion max. 250 m, IP68
Pump Head: PE HR-14HL **
- High reliability and durability
- Non-return valve
- Premium Materials
- Optional: dry run protection
9 kg controller
16 kg pump Undidad
Motor 10 kg
5,5 kg pump head
| Head | max. 180 m |
| Flow rate | max. 2,6 m³/h |
| Controller | PS2-4000 |
| Power | max. 4,0 kW |
| Input voltage | max. 375 V |
| Optimum Vmp** | > 238 V |
| Motor current | max. 14 A |
| Efficiency | max. 98 % |
| Ambient temp. | -40…50 °C |
| Enclosure class | IP68 |
| Pump Unit | PU4000 HR-14HL |
| Borehole diameter | min. 4,0 in |
| Water temperature | max. 50 °C |
| Pump end | PE HR-14HL |
| Material | AISI 304/316 |
| Motor | ECDRIVE 4000-HR |
| Rated Power | 4,0 kW |
| Motor speed | 900…3 300 rpm |
| Material | AL/AISI 304 |
| Insulation class | F |
| Enclosure class | IP68 |
| Submersion | max. 150 m |
