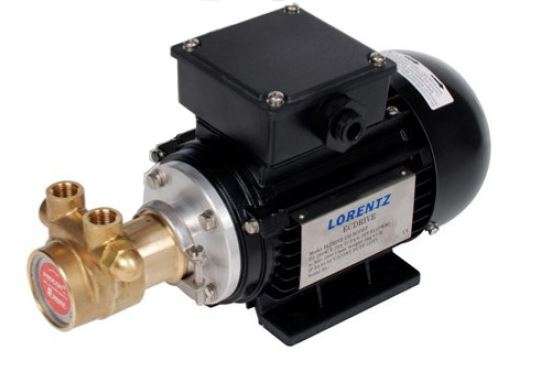

Lorentz PS 150 Boost-125 Surface Solar Pump System

Lorentz PS 150 Boost-125 Surface Solar Pump System

KSh105,000.00 KSh94,500.00

LORENTZ_PS150_boost-125_Datasheet

Pump System PS 150 Boost-125
max. total dynamic head [m] 110
max. flow rate [m³/h] 0.5
Solar Operation: Max Power Voltage (Vmp) >17
Solar Operation: Open Circuit Voltage [V DC] max. 50
Solar Operation: Nominal Voltage [V DC] 12-24
Battery Operation: Nominal Voltage [V DC] 12 and 24
Pump Type Positive Displacement
Qty:
Compare
Brand:

Description

Head max. 110m
Flow rate max. 0,50m 3/h
Controller Ps2-150
Power max. 0,30kW
Input voltage max. 50 V DC
Optimum Vmp** > 17 V
Motor current max. 22 A
Efficiency max. 98 %
Ambient temp. -40…50 °C
Enclosure class IP68
Pump Unit PU BOOST-125
Water temperature max. 80°C
Suction head max. 3m
Pump end PE BOOST-125
Material brass
Motor ECDRIVE 150-BOOST
Rated Power 0,3 kW
Motor speed 280… 1750 rpm
Input voltage 18V
Material AL/AISA 304
Insulation class F
Enclosure class IPX4

Dimensions

Controller PS2-150
Weight 5,6kg
H1 352mm
H2 333mm
W1 207mm
W2 170mm
W3 164mm
D1 124mm
Pump Unit PU BOOST-125
Weight 7,5kg
Pump end PE BOOST-125
Weight 2,0kg
Motor ECDRIVE 150-BOOST
Weight 5,5kg

Pump End

No details Available

Motor

Motor ECDRIVE 150-BOOST
Weight 5,5kg
Quantity 1pc.

Pump Chart

Controller

  • Full backward compatibility
  • Increased serviceability
  • Reduced variants
  • Additional pressure sensor input
  • New inbuilt software applications (constant flow, constant pressure)
  • Extended data protocol
