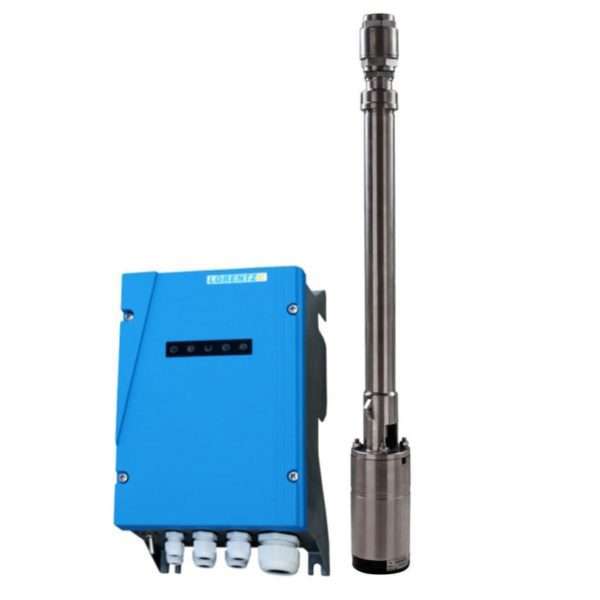

LORENTZ PS1800 HR-05HL Submersible Pump System

LORENTZ PS1800 HR-05HL Submersible Pump System

KSh228,000.00 KSh205,200.00

Pump System PS1800 HR-05HL
max. total dynamic head [m] 250
max. flow rate [m³/h] 0.97
Solar Operation: Max Power Voltage (Vmp) > 102
Solar Operation: Open Circuit Voltage [V DC] max. 200
Solar Operation: Nominal Voltage [V DC] 72-96
Battery Operation: Nominal Voltage [V DC] 96
Qty:
Compare
Brand:

Description

Head max. 250 m
Flow rate max. 0,97 m³/h
Controller Controller PS2-1800
Power max. 1,8 kW
Input voltage max. 200 V
Optimum Vmp** > 102 V
Motor current max. 14 A
Efficiency max. 98 %
Ambient temp. -40…50 °C
Enclosure class IP68
Pump Unit PU1800 HR-05HL
Water temperature max. 50 °C
Borehole diameter min. 4,0 in
Pump end PE HR-05HL
Materials AISI 304/316
Motor ECDRIVE 1200-HR / ECDRIVE 1800-HR
Rated Power 1,7 kW
Motor speed 900…3 300 rpm
Material AL/AISI 304
Insulation class F
Enclosure class IP68
Submersion max. 150 m

Dimensions

Controller Controller PS2-1800
Weight 6,0 kg
H1 352mm
H2 333mm
W1 207mm
W2 170mm
W3 164mm
D1 124mm
Pump Unit PU1800 HR-05HL
Weight 13 kg
Pump end PE HR-05HL
Weight 5,5 kg
Motor ECDRIVE 1200-C / 1800-C
Weight 7,0 kg

Pump End

Pump end PE HR-05HL
Weight 5,5 kg
Quantity 1pc.

Motor

Motor ECDRIVE 1200-HR / ECDRIVE 1800-HR
Weight 7,0 kg
Quantity 1pc.

Pump Chart

Controller

  • Full backward compatibility
  • Increased serviceability
  • Reduced variants
  • Additional pressure sensor input
  • New inbuilt software applications (constant flow, constant pressure)
  • Extended data protocol
