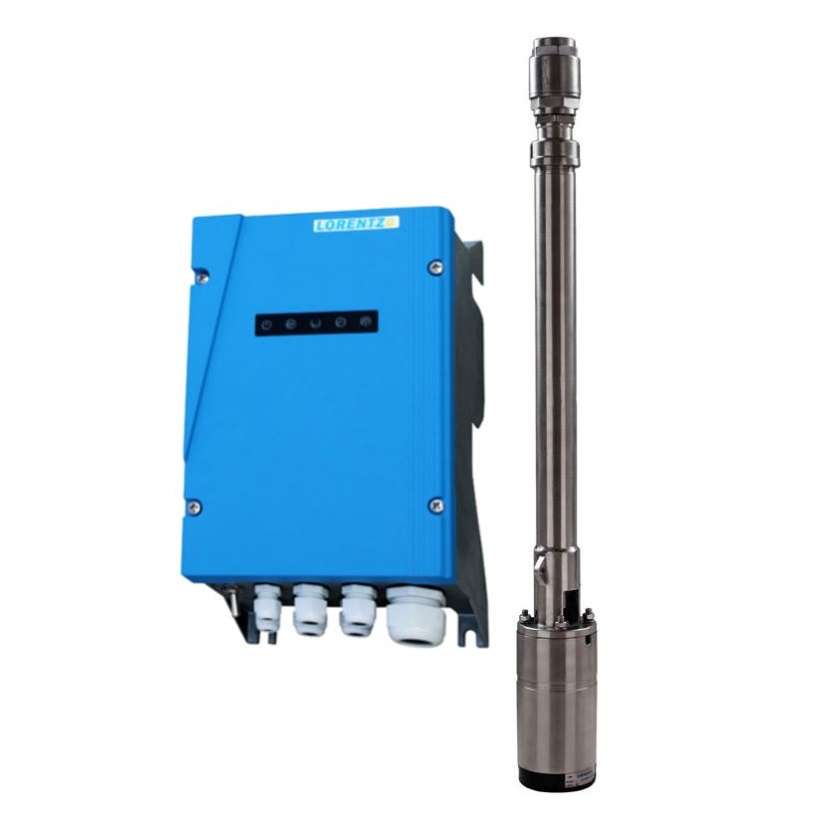

LORENTZ PS4000 HR-05HHL Submersible Pump System

LORENTZ PS4000 HR-05HHL Submersible Pump System

KSh438,750.00 KSh394,875.00

Pump System PS4000 HR-05HHL
max. total dynamic head [m] 450
max. flow rate [m³/h] 0.93
Solar Operation: Max Power Voltage (Vmp) >238
Solar Operation: Open Circuit Voltage [V DC] max. 375
Solar Operation: Nominal Voltage [V DC] 168-192

10 in stock

Qty:
Compare
Brand:

Description

Head max. 450 m
Flow rate max. 0,93 m³/h
Controller PS2-4000
Power max. 4,0 kW
Input voltage max. 375 V
Optimum Vmp** > 238 V
Motor current max. 14 A
Efficiency max. 98 %
Ambient temp. -40…50 °C
Enclosure class IP68
Pump Unit PU4000 HR-05HHL
Borehole diameter min. 4,0 in
Water temperature max. 50 °C
Pump end PE HR-05HHL
Material AISI 304/316
Motor ECDRIVE 4000-HR
Rated Power 4,0 kW
Motor speed 900…3 300 rpm
Material AL/AISI 304
Insulation class F
Enclosure class IP68
Submersion max. 150 m

Dimensions

Controller PS2-4000
Weight 6,1 kg
H1 352mm
H2 333mm
W1 207mm
W2 170mm
W3 164mm
D1 124mm
Pump Unit PU4000 HR-05HHL
Weight 16 kg
Pump end PE HR-05HHL
Weight 5,5 kg
Motor ECDRIVE 4000-HR
Weight 10 kg

Pump End

Pump end PE HR-05HHL
Weight 5,5 kg
Quantity 1pc.

Motor

Motor ECDRIVE 4000-HR
Weight 10 kg
Quantity 1pc.

Pump Chart

Controller

  • Full backward compatibility
  • Increased serviceability
  • Reduced variants
  • Additional pressure sensor input
  • New inbuilt software applications (constant flow, constant pressure)
  • Extended data protocol
