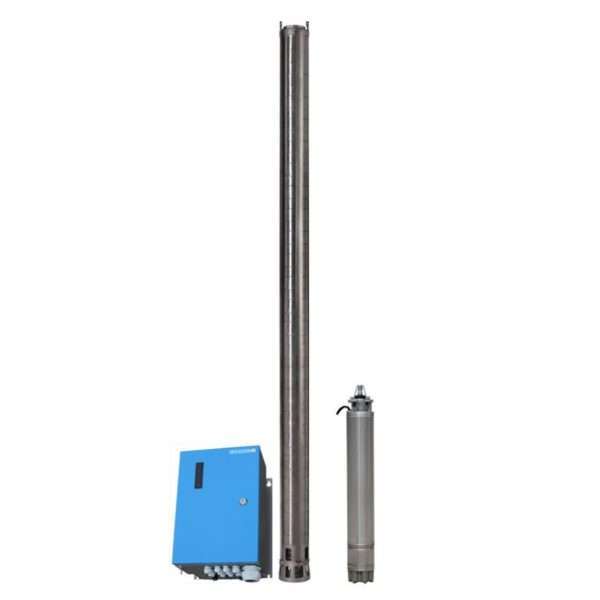

LORENTZ PS 25K2 C-SJ30-22 Submersible Pump

LORENTZ PS 25K2 C-SJ30-22 Submersible Pump

KSh1,099,875.00 KSh989,887.50

Solar Submersible Pump System for 6″ wells

System Overview

PS DataModule – Integrated Data Logger and advanced pump
management features. Allows for simple system configuration, real-time
and stored data plus provides Bluetooth communication to PumpScanner
Android ™ App and PS Communicator.

Qty:
Compare
Brand:

Description

Technical Data

Controller PS25k2
ƒControl inputs for dry running protection, remote control etc.
ƒProtected against overload and overtemperature
ƒIntegrated MPPT (Maximum Power Point Tracking)
Power max. 25 kW
Input voltage max. 850 V
Optimum Vmp** > 575 V
Motor current max. 40 A
Efficiency max. 98 %
Ambient temp. -30…50 °C
Enclosure class IP54
Motor AC DRIVE SUB 6″ 18.5kW
ƒHighly efficient 3-phase AC motor
ƒFrequency: 25…50 Hz
ƒPremium materials, stainless steel: AISI 304
ƒNo electronics in the motor
Motor speed 1,400…2,850 rpm
Power factor 0.87
Insulation class F
Enclosure class IP68
Submersion max. 300 m
Pump End PE C-SJ30-22
ƒNon-return valve
ƒPremium materials, stainless steel: AISI 304
ƒOptional: dry running protection
ƒCentrifugal pump
Standards
2006/42/EC, 2004/108/EC, 2006/95/EC
IEC/EN 61702:1995, IEC/EN 62253 Ed.1
The logos shown reflect the approvals that have been granted for this product
family. Products are ordered and supplied with the approvals specific to the market
requirements.
Pump Unit PU25k2 C-SJ30-22 (Motor, Pump End)
Borehole diameter min. 6,0 in
Water temperature max. 30 °C
