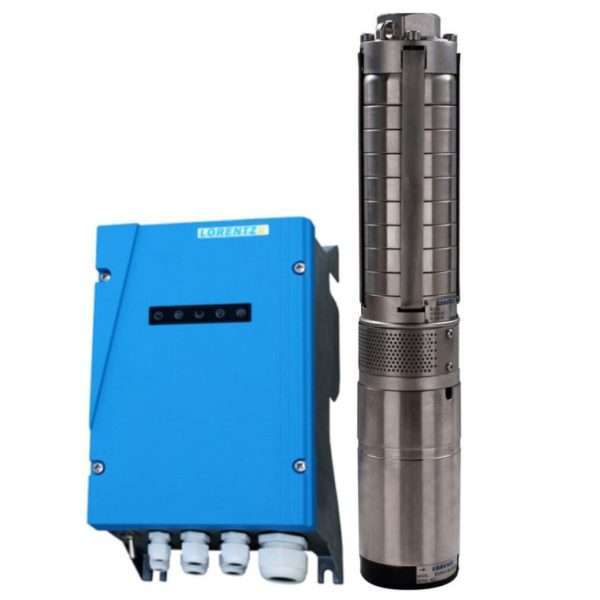

LORENTZ PS600 C-SJ5-8 Submersible Pump System

LORENTZ PS600 C-SJ5-8 Submersible Pump System

KSh217,000.00 KSh195,300.00

Pump System PS600 C-SJ5-8
max. total dynamic head [m] 30
max. flow rate [m³/h] 6.5
Solar Operation: Max Power Voltage (Vmp) > 68
Solar Operation: Open Circuit Voltage [V DC] max. 150
Solar Operation: Nominal Voltage [V DC] 48 – 72
Battery Operation: Nominal Voltage [V DC] 48

10 in stock (can be backordered)

Qty:
Compare
Brand:

Description

Head  max. 30 m
Flow rate  max. 6,5 m³/h
Controller PS2-600
Power max. 0,70 kW
Input voltage max. 150 V
Optimum Vmp** > 68 V
Motor current max. 13 A
Efficiency max. 98 %
Ambient temp. -40…50 °C
Enclosure class IP68
Pump Unit PU600 C-SJ5-8
Borehole diameter min. 4,0 in
Water temperature max. 50 °C
Pump End PE C-SJ5-8
Material AISI 304/316
Motor ECDRIVE 600-C
Rated Power 0,7kW
Motor Speed 900… 3300rpm
Input Voltage 45V
Submersion max. 150m
Material AISI 304
Insulation class F
Enclosure Class IP68

Dimensions

Controller PS2-600
Weight 5.6kg
H1 352mm
H2 333mm
W1 207mm
W2 170mm
W3 164mm
D1 124mm
Pump Unit PU600 C-SJ5-8
Weight 11kg
A 542mm
B 185mm
C 339mm
D 96mm
E 98mm
S 1,5 in
Pump end PE C-SJ5-8
Weight 4,2kg
Motor ECDRIVE 600-C
Weight 7,0kg

Pump End

Pump End PE C-SJ5-8
Weight 4,2kg
Quantity 1pc.

Motor

Motor ECDRIVE 600-C
Weight 7,0kg
Quantity 1pc.

Pump Chart

Controller

  • Full backward compatibility
  • Increased serviceability
  • Reduced variants
  • Additional pressure sensor input
  • New inbuilt software applications (constant flow, constant pressure)
  • Extended data protocol
