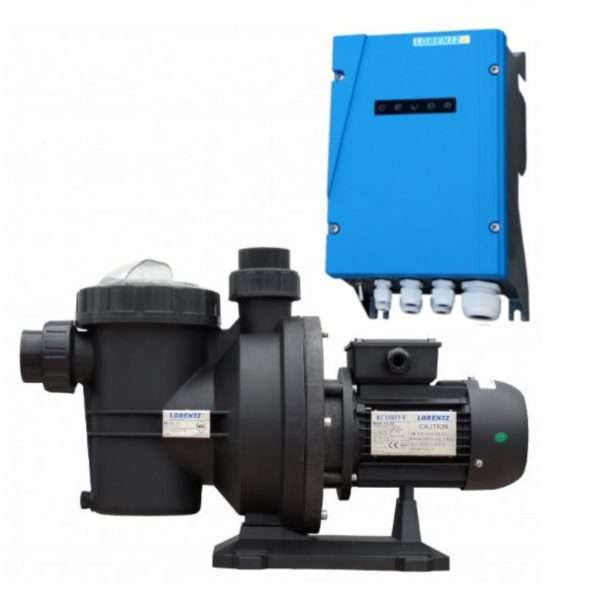

LORENTZ PS600 CS-17-1 Solar Surface Pump System

LORENTZ PS600 CS-17-1 Solar Surface Pump System

Compare
Brand:

Description

Head  max. 12 m
Flow rate  max. 18 m³/h
Controller PS2-600
Power max. 0,70 kW
Input voltage max. 150 V
Optimum Vmp** > 68 V
Motor current max. 13 A
Efficiency max. 98 %
Ambient temp. -40…50 °C
Enclosure class IP68
Pump Unit PU600 CS-17-1
Water temperature max. 60 °C
Suction Head max. 3m
Pump End PE CS-17-1
Material PP
Motor ECDRIVE 600 CS-17
Rated Power 0,7kW
Motor Speed 900… 3300 rpm
Input Voltage 45V
Material AL/AISI 304
Insulation class F
Eclosure Class IPX

Dimensions

Controller PS2-600
Weight 5.6kg
H1 352mm
H2 333mm
W1 207mm
W2 170mm
W3 164mm
D1 124mm
Pump Unit PU600 CS-17-1
Weight 6,9kg
Pump end PE CS-17-1
Weight 1,7kg
Motor ECDRIVE 600 CS-17
Weight 5,2kg

Pump End

Pump End PE CS-17-1
Weight 1,7kg
Quantity 1pc,

Motor

Motor ECDRIVE 600 CS-17
Weight 5,5kg
Quantity 1pc.

Pump Chart

Controller
