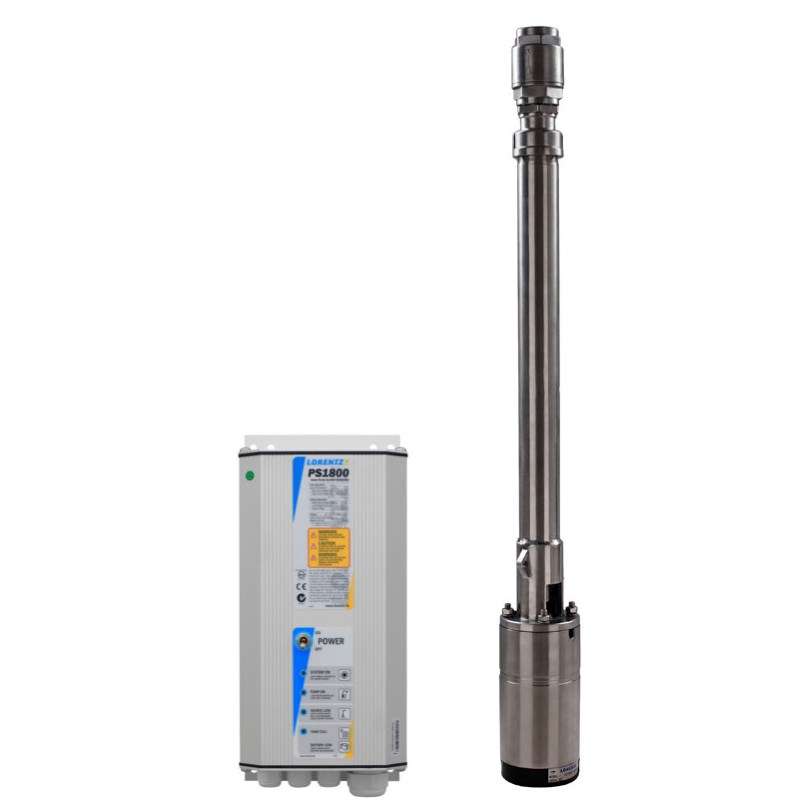

Lorentz ps1800 hr-07-2 submersible pump system
PS Lorentz ps1800 hr-07-2 submersible pump system pumps are high quality products designed to supply applications High flow water, livestock watering, and irrigation tank management. Systems carry eccentric screw pump water economically,. These highly efficient pumps can achieve flow rates up to .Each system consists of a pump, a motor and a controller. This modular concept keeps all the electronics above the surface, enabling easy maintenance, easy access and low cost for the property.
Lorentz ps1800 hr-07-2 submersible pump system Applications
- Water supply
- Management of the water tank
- chanels
- Drinker won
- Compression systems
Features
- Quick, trouble-free
- excellent functionality
- High reliability and durability
- Short cycle return on investment (ROI)
- Lowest total cost of operation (TCO)
Specifications
-
Dynamic height max. 160 m
-
Flow max. 1,4 m³ / h
-
Vmp *> 102 V
-
Voc max. 200 V
Controller: PS1800
- Control and monitor
- Control inputs for dry run protection, remote control, etc..
- Protected against reverse polarity, overload and temperature execiva
- integrated MPPT
- Low Voltage Disconnect battery operation mode
Engine: 1200-HR ECDRIVE
- Brushless DC motor – maintenance free
- Filled with water
- Without electronic elements on the engine
- Immersion max. 250 m, IP68
Pump Head: PE HR-07H **
- High reliability and durability
- Non-return valve
- Premium Materials
- Optional: dry run protection
4,5 kg controller
12 kg pump Undidad
Motor 7.0 kg
4,5 kg pump head
| Pump System | PS1800 HR-07-2 |
| max. total dynamic head [m] | 120 |
| max. flow rate [m³/h] | 1.3 |
| Solar Operation: Max Power Voltage (Vmp) | > 102 |
| Solar Operation: Open Circuit Voltage [V DC] | max. 200 |
| Solar Operation: Nominal Voltage [V DC] | 72-96 |
| Battery Operation: Nominal Voltage [V DC] | 96 |
