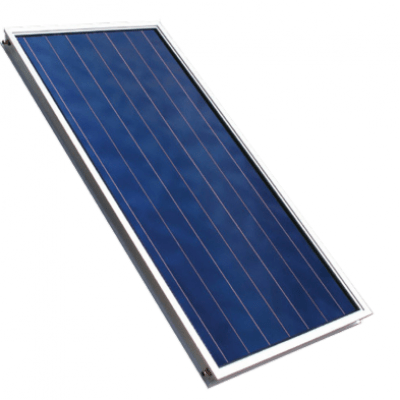

Megasun 2sq mm Collector Panel
– Megasun 2sq mm Collector Panel Absorption equipment: a single copper plate
– Heat absorption efficiency: 95% ± 2%
– Heat loss coefficient: 5% ± 3%
– Absorbent copper plate thickness: 0.2mm
– Plating technology: selective titanium
– Diameter of horizontal convection copper pipe: Φ22mm
– Diameter of vertical convection copper pipe: Φ10mm or Φ8mm
– Testing pressure: 10 bar
– Working pressure: 7 bar
Features include;
- Ultra high-efficiency solar collectors (2 Pieces) incorporating capillary copper pipes ultrasonically welded on a black chrome backplate covered by high transmittance glass Insulated copper pipe for hot water.
- Complete with necessary compression fittings, pressure release valve, and a drain cock.
- Galvanized mounting frame 2.5sq mm Megasun Direct Flat Plate Solar Water Heating system.Megasun Direct Flat Plate Solar Water Heating systems are available in three sizes to suit domestic and small scale institutional applications. They are effective and robust products designed for many years of trouble-free operation with a 5-year guarantee to demonstrate product quality.
- Gycolfluid which acts as thermal exchanging fluid between the collectors ad the tank.
