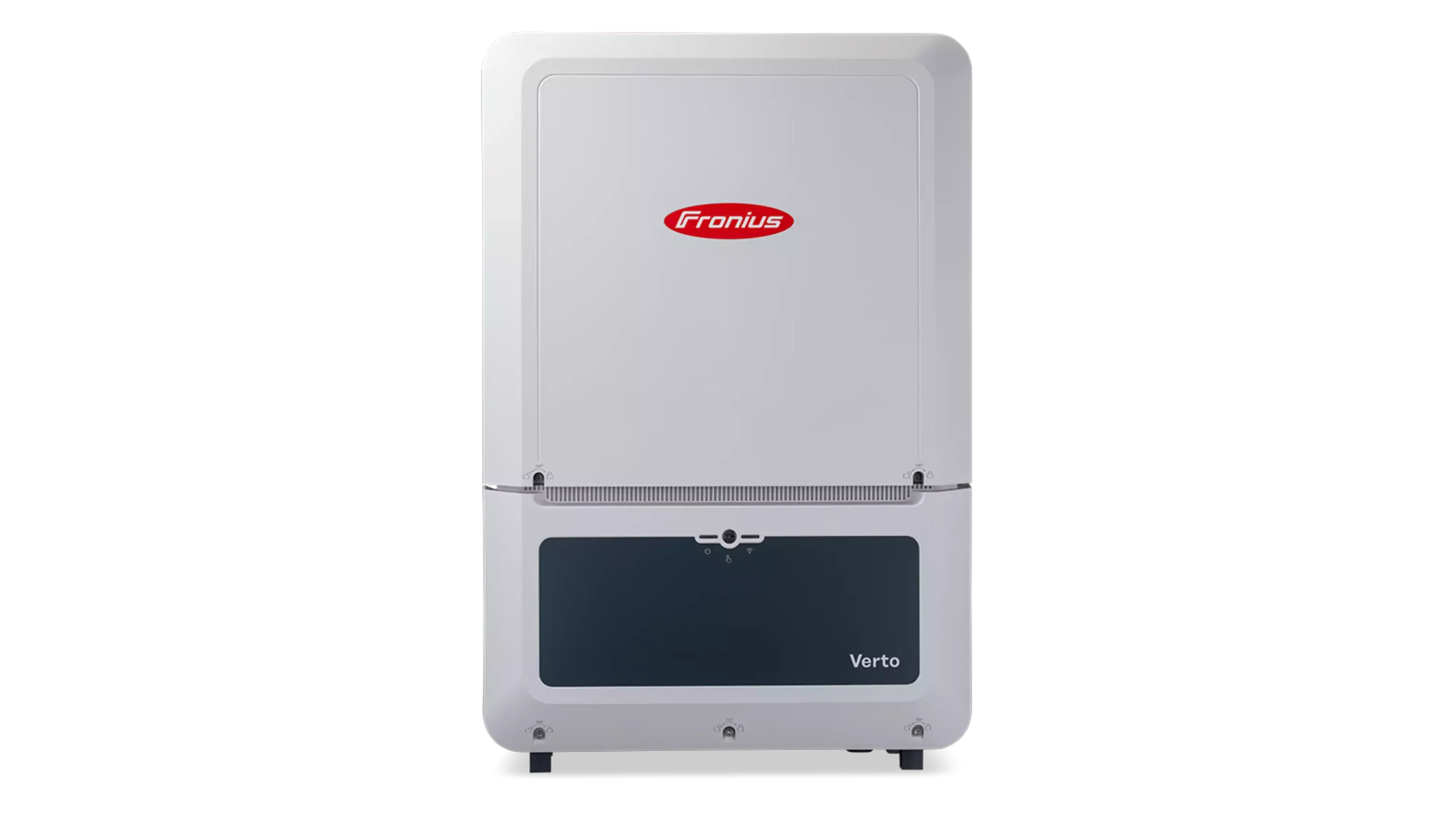

Fronius Verto 33.0 is a powerful three-phase 33 kW grid-tie PV inverter tailored for commercial, agricultural and apartment‐building solar installations. Featuring a wide DC input window, multiple MPPT trackers, integrated surge protection (SPD Type 1+2) and full connectivity (WLAN, LAN, Modbus), it excels in complex roof layouts, partial shading and high-yield environments. Built for outdoor use (IP66 rating) and backed by the Fronius safety & monitoring ecosystem, it offers both robust performance and system-integration flexibility.
Key Features
-
33 kW nominal AC output for demanding solar systems.
-
Four MPPT trackers (in the 27/30/33 kW category) allowing flexible string design and improved shading resilience.
-
Wide MPP voltage range (150 V – 870 V) and high max DC voltage (1 000 V) for high‐voltage module compatibility.
-
Integrated AC & DC surge protection (SPD Type 1+2) and arc‐fault detection (AFCI) enhance safety and reduce additional hardware.
-
Full connectivity (WLAN, LAN, Ethernet, Modbus TCP/RTU, JSON) for seamless monitoring and integration with energy‐management systems.
-
Robust IP66 outdoor‐capable housing, active cooling system and wide ambient temperature range ensure reliability in harsh conditions.
Technical Data Table
| Parameter | Specification |
|---|---|
| AC nominal output power | 33 kW (approx) |
| Number of MPPT trackers | 4 MPPTs (for Verto 27/30/33 category) |
| DC input voltage range | 150 V – 1 000 V (max) |
| MPP voltage range | 150 V – 870 V |
| Max. PV generator power | ~50 kW p (for 33.3 kW model) |
| Efficiency (max) | ~97.5 % + (European efficiency approx ~97.3 %) |
| Protection rating | IP66 (suitable for indoor & outdoor) |
| Dimensions (H×W×D) | ~865 × 574 × 279 mm |
| Weight | ~41–43 kg |
