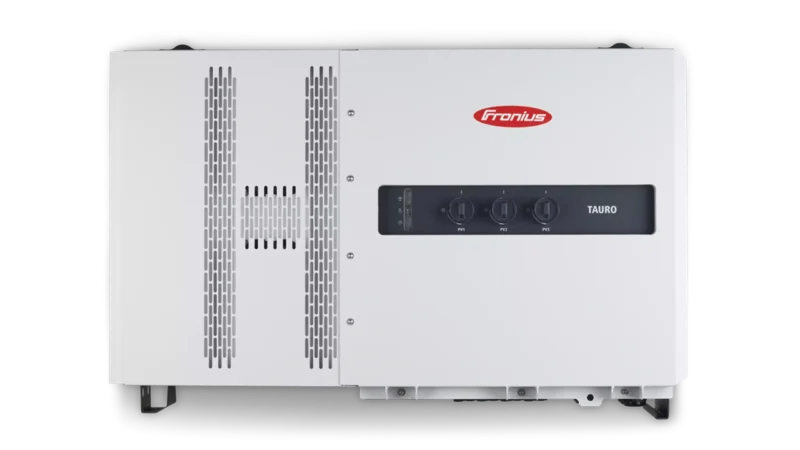

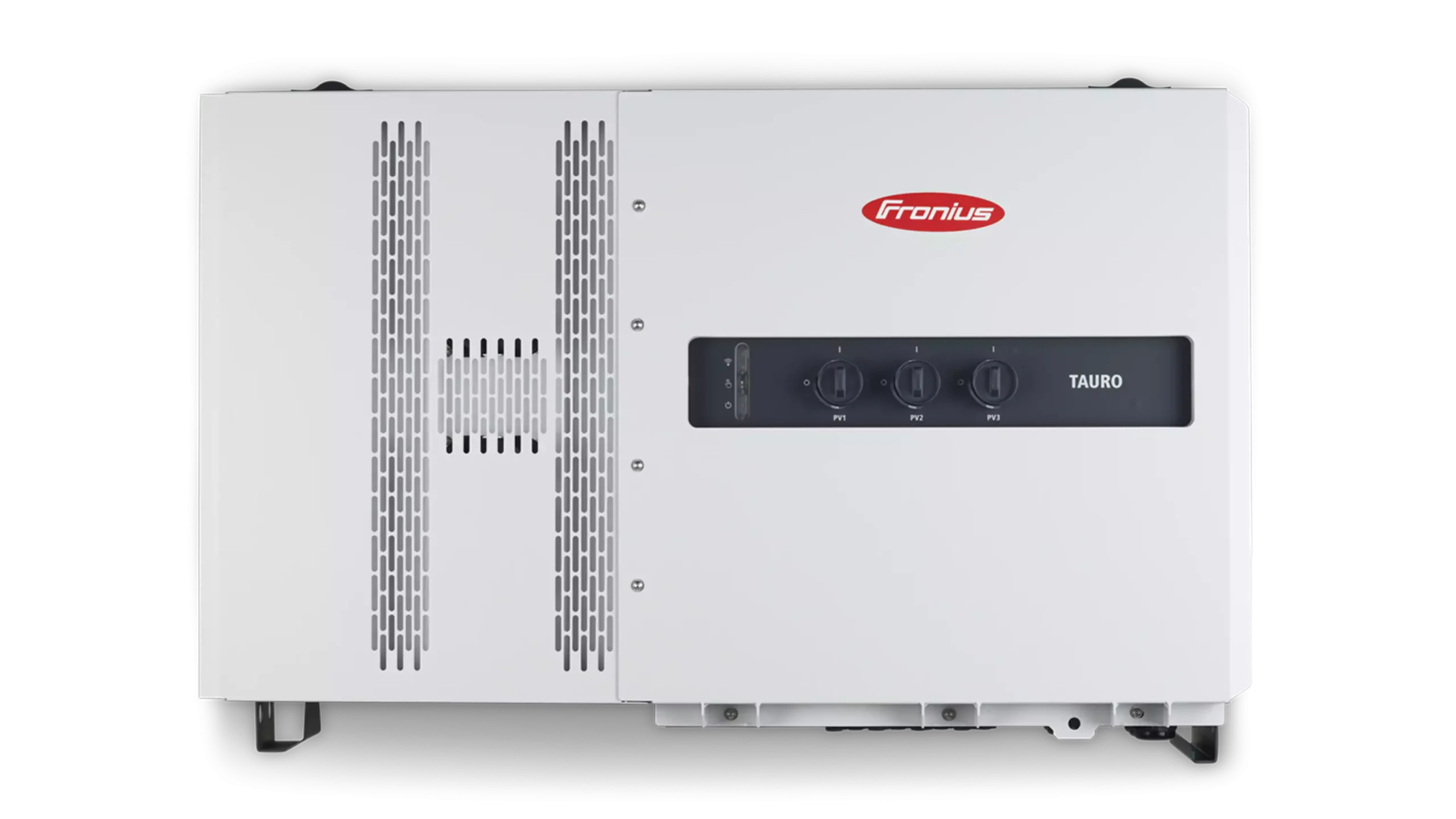

FRONIUS TAURO ECO 100-3- P (100kw) – 3P GRID TIE / PV INVERTER

KSh1,150,000.00

  • 100 kW nominal AC output for high-capacity installations.

  • Single MPP tracker design: simplifies system layout, reduces stringing complexity.

  • Wide DC input: 580-1000 V allows compatibility with modern high-voltage PV modules.

  • High efficiency: up to 98.5 % conversion, achieving European efficiencies above 98 %.

  • Outdoor-ready IP65 enclosure with active cooling and a double-walled system for heat resilience and longevity.

SKU: 10-FRO-0105 Category:

Description

Fronius Tauro ECO 100-3-P is a robust 100 kW three-phase grid-tie photovoltaic inverter tailored for large commercial and industrial PV installations. With a single MPPT tracker and a high-voltage input range, it enables streamlined string design and high BOS efficiency. Housed in an IP65-rated cabinet with active cooling and double-wall construction, this inverter thrives in demanding outdoor conditions. Advanced connectivity (Ethernet, RS485, Wi-Fi) and intelligent monitoring via Solar.web support maximise system uptime and performance.

Key Features

  • 100 kW nominal AC output for high-capacity installations.

  • Single MPP tracker design: simplifies system layout, reduces stringing complexity.

  • Wide DC input: 580-1000 V allows compatibility with modern high-voltage PV modules.

  • High efficiency: up to 98.5 % conversion, achieving European efficiencies above 98 %.

  • Outdoor-ready IP65 enclosure with active cooling and a double-walled system for heat resilience and longevity.

  • Integrated surge protection (Type 1 + 2) and full communication interfaces (LAN/WiFi/Modbus) for smart system integration.

  • Service-optimised modular design for rapid maintenance and minimal downtime.

Technical Data Table

Parameter Specification
AC nominal output power (Pₐc,r) 100 kW
Max. efficiency (PV→grid) ~98.5 %
European efficiency (ηₑₙ) ~98.2 %
DC input voltage range (U₍dc min–dc max₎) 580 – 1000 V
MPP voltage range (Umpp min–max) 580 – 930 V
Max. PV generator power (P₍dc max₎) 150 kWpeak
Output current (Iₐc nom) 151.5 A at 220 V / 144.9 A at 230 V
Grid connection 3 ~ NPE 380/220 V or 400/230 V
Frequency range 45 – 65 Hz
Protection rating IP65 (indoor/outdoor use)
Ambient temperature range –40 °C to +65 °C
Dimensions (H × W × D) 755 × 1109 × 346 mm
Weight 103 kg
