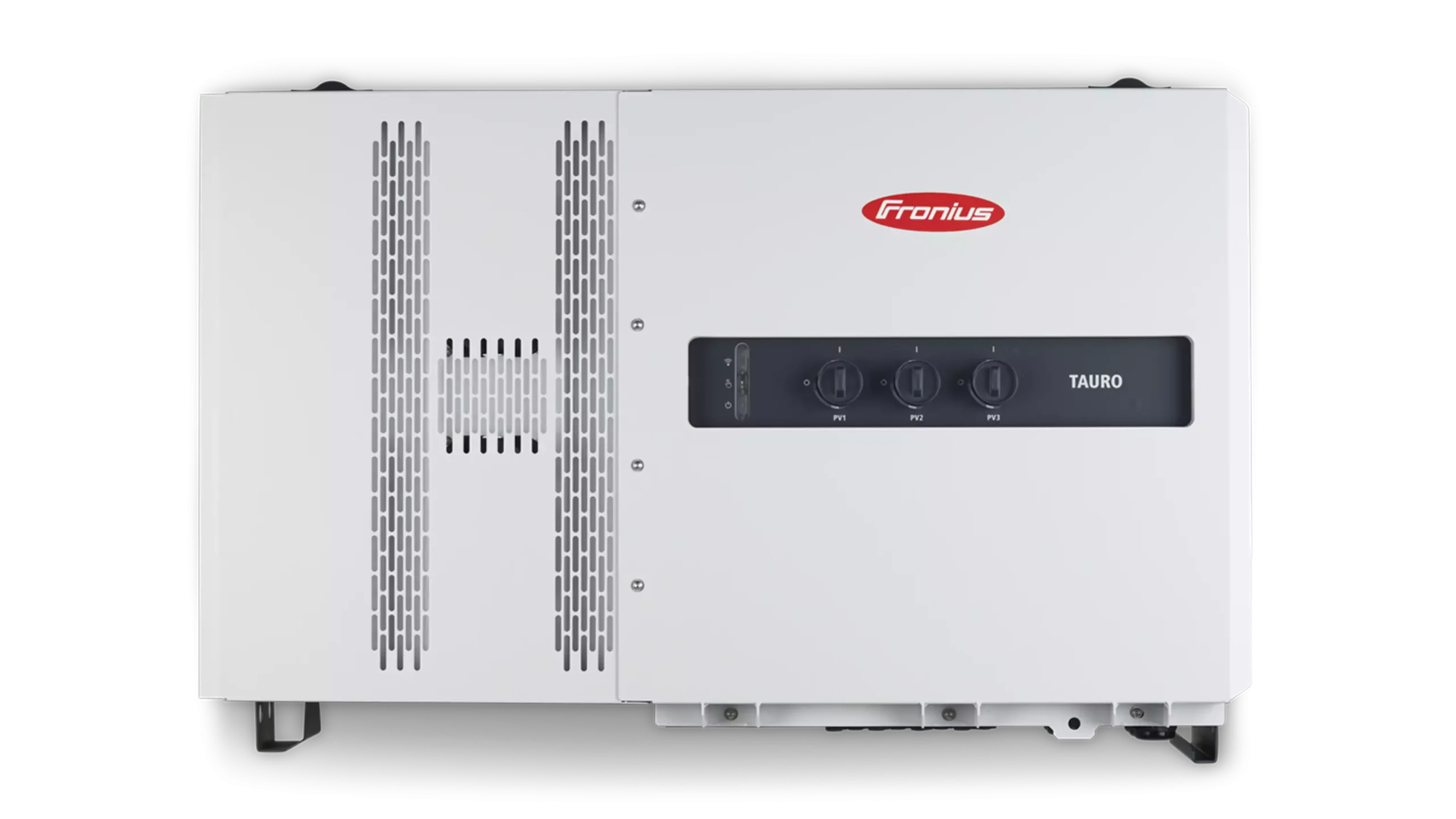

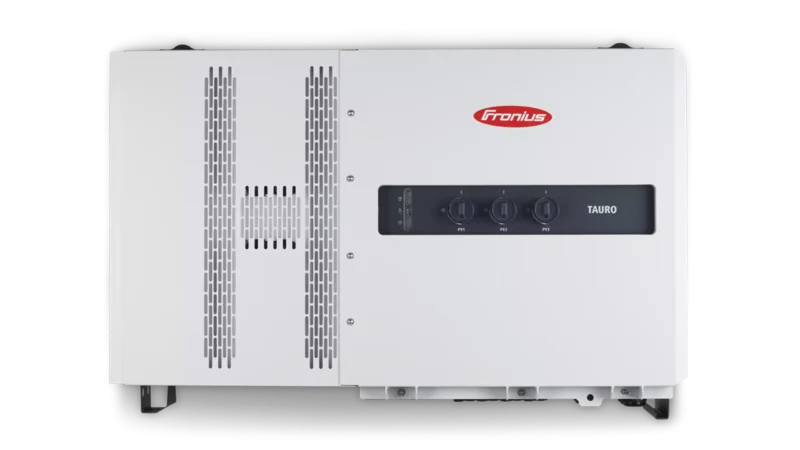

Fronius Tauro ECO 100-3-D is a 100 kW three-phase grid-tie PV inverter engineered for large-scale commercial solar installations. With a single MPP tracker for streamlined design, IP65 certified outdoor housing, double-walled active-cooling system, and integrated Type 1 + 2 surge protection, it delivers reliable high-efficiency performance even in harsh environments. Ideal for rooftop or ground-mounted systems, both horizontal and vertical, this inverter supports efficient installation, modular servicing and full integration with Fronius Solar.web monitoring.
Key Features
-
100 kW AC nominal output for commercial-scale deployment.
-
Single MPP tracker with wide DC input range (approx. 580–1000 V) enabling high-voltage PV string design.
-
IP65 rated outdoor–ready enclosure with active cooling and double-walled front cover for performance in extreme heat or direct sun.
-
Integrated surge protection (AC & DC Type 1 + 2) and AC Daisy-Chaining capability reduce BOS cost.
-
Full connectivity: WiFi, Ethernet LAN, Modbus/RS485, open-architecture for integration into monitoring and energy-management systems.
-
Service-friendly design with modular replaceable power stage and minimal downtime.
Technical Data Table
| Parameter | Specification |
|---|---|
| AC nominal output (Pac,r) | 100 kW |
| Max. efficiency | ~98.5 % |
| European efficiency (ηEU) | ~98.2 % |
| DC input voltage range (Udc min-max) | ~580 – 1000 V |
| Usable MPP voltage range (Umpp) | ~580 – 930 V |
| Max. PV generator power (Pdc max) | ~150 kW p |
| AC output current (Iac nom) | ~151 A at 220 V / ~145 A at 230 V |
| Protection rating | IP65 |
| Operating ambient temperature range | ~–40 °C to +65 °C |
| Dimensions (H×W×D) | 755 × 1109 × 346 mm |
| Weight | 103 kg |
