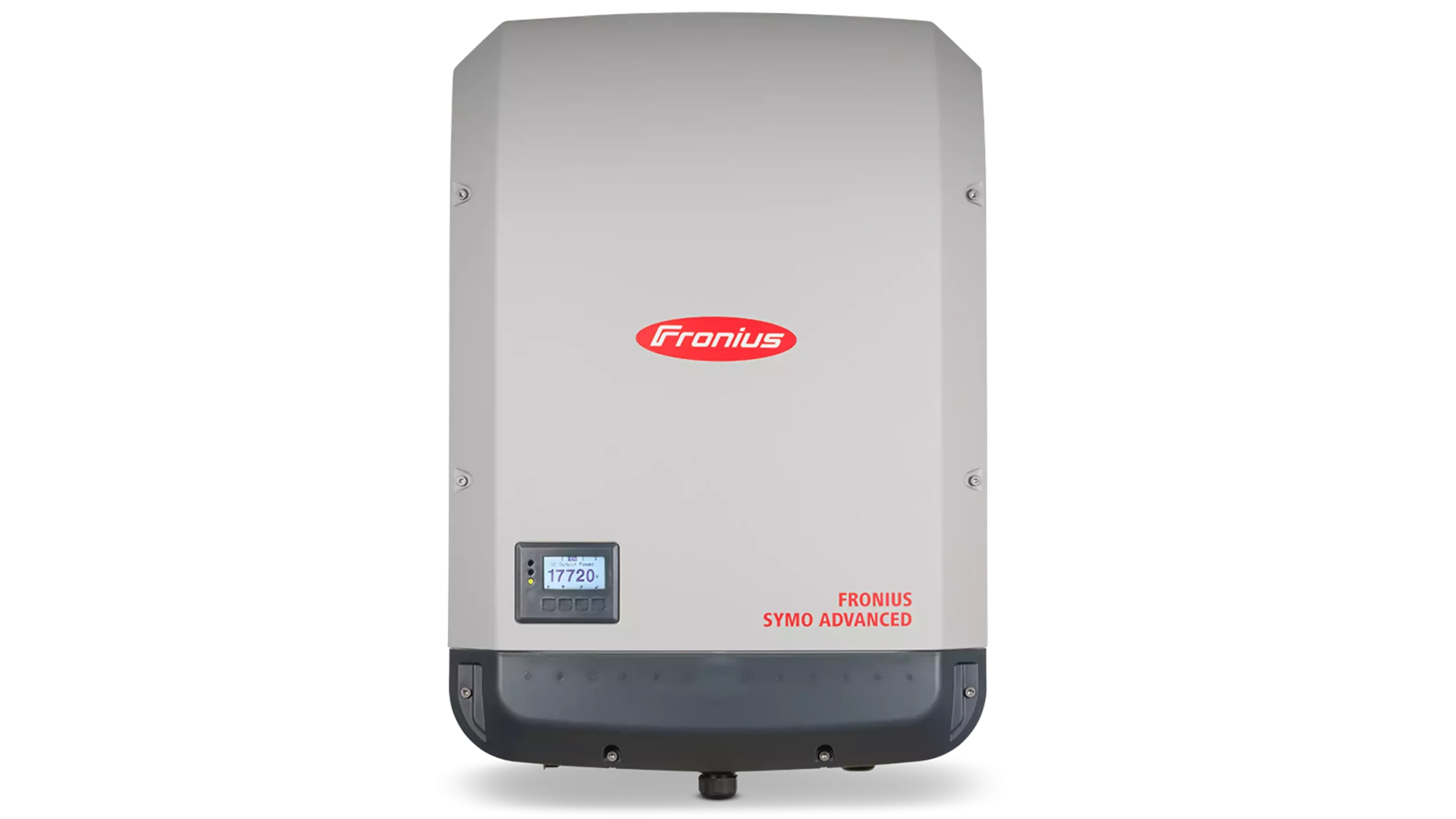

Fronius Symo Advanced 10.0-3-M is a premium 10 kW three-phase grid-tie solar inverter designed for commercial rooftop systems and light industrial installations. Featuring two MPPT trackers, a broad 200–1000 V DC input range, integrated arc-fault protection (Fronius Arc Guard) and full WiFi/Ethernet connectivity, this inverter supports flexible string layouts, high yield and future-proof grid integration. With durable IP66 outdoor rating and SnapINverter design for fast servicing, it’s built for reliable performance and long-term uptime.
Key Features
-
10 kW nominal AC output, three-phase (3~ NPE 400/230 or 380/220 V) systems.
-
Dual independent MPPT trackers increase flexibility in module string orientation and shading conditions.
-
Wide DC input range (200 V – 1000 V) and MPP range 270 V – 800 V for compatibility with high-voltage modules and flexible system design.
-
Integrated arc-fault circuit interrupter (AFCI) via Fronius Arc Guard for enhanced safety.
-
Embedded WiFi and Ethernet LAN with full communication capabilities (Modbus TCP/RTU, Fronius Solar API, Webserver) for monitoring and smart grid readiness.
-
Outdoor-capable IP66 rated enclosure with regulated air cooling, enabling both indoor and outdoor installation.
Technical Data Table
| Parameter | Specification |
|---|---|
| AC nominal output (Pac,r) | 10 kW |
| Max. output power (Pac,max) | 10 kVA |
| Number of MPPT trackers | 2 |
| DC input voltage range (Udc min–max) | 200 V – 1000 V |
| MPP voltage range (Umpp min–max) | 270 V – 800 V |
| Max. PV generator power (Pdc max) | 15 kWpeak |
| Max. efficiency | ~97.8 % |
| Euro efficiency (ηEU) | ~97.1 % |
| Protection rating | IP66 |
| Ambient temperature range | –25 °C to +60 °C |
| Dimensions (H × W × D) | 725 mm × 510 mm × 225 mm |
| Weight | ~32 kg – 35 kg |
