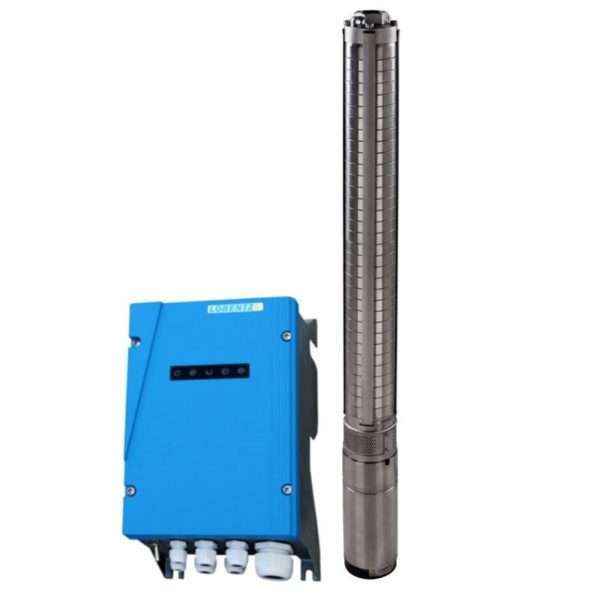

LORENTZ PS4000 C-SJ3-32 Submersible Pump System

LORENTZ PS4000 C-SJ3-32 Submersible Pump System

Pump System PS4000 C-SJ3-32
max. total dynamic head [m] 160
max. flow rate [m³/h] 4.2
Solar Operation: Max Power Voltage (Vmp) > 238
Solar Operation: Open Circuit Voltage [V DC] max. 375
Solar Operation: Nominal Voltage [V DC] 168 – 192
Compare
Brand:

Description

Head max. 220 m
Flow rate max. 4,2 m³/h
Controller PS2-4000
Power max. 4,0 kW
Input voltage max. 375 V
Optimum Vmp** > 238 V
Motor current max. 14 A
Efficiency max. 98 %
Ambient temp. -40…50 °C
Enclosure class IP68
Pump Unit PU4000 C-SJ3-32
Water temperature max. 50 °C
Borehole diameter min. 4,0 in
Pump end PE C-SJ3-32
Materials AISI 304/316
Motor ECDRIVE 4000-C
Rated Power 4,0 kW
Motor speed 900…3 300 rpm
Material AISI 304/316
Insulation class F
Enclosure class IP68
Submersion max. 150 m

Dimensions

Controller PS2-4000
Weight 6,1 kg
H1 352mm
H2 333mm
W1 207mm
W2 170mm
W3 164mm
D1 124mm
Pump Unit PU4000 C-SJ3-32
Weight 20 kg
Pump end PE C-SJ3-32
Weight 9,5 kg
Motor ECDRIVE 4000-C
Weight 10 kg

Pump End

Pump end PE C-SJ3-32
Weight 9,5 kg
Quantity 1pc.

Pump Chart

Motor

Motor ECDRIVE 4000-C
Weight 10 kg
Quantity 1pc.

Controller

No Details Available
