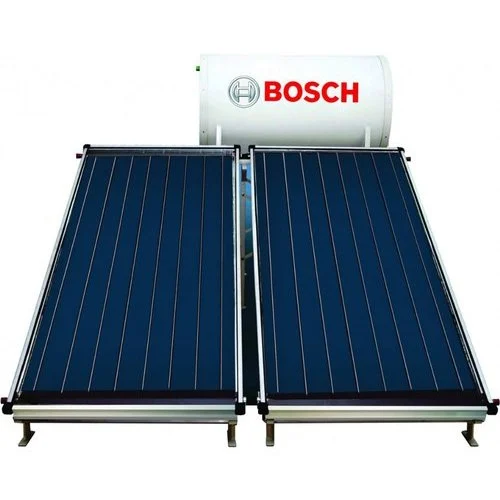

300 Liters Bosch Indirect Flat Roof Indirect (Closed Loop) Solar Water Heater Description
The Bosch solar water heater TSS comes in three different storage sizes: 150, 200 or 300 l, suitable for on-roof or flat roof installation. For the on-roof versions, you have the option of installing the storage tank and collector separately. Furthermore, the design is also flexible enough to be expanded by additional collectors. The angle of inclination ranges between 25° and 45°, adjustable in accordance with local requirements. In contrast, the flat roof versions have a fixed inclination angle of 35°.
300 Liters Bosch Indirect Flat Roof Indirect (Closed Loop) Solar Water Heater tank/Cylinder features
The storage tank of the Bosch solar water heater is made from steel and designed to last a long time. Thanks to a double wall, it is particularly well insulated against loss of heat. An inner layer of enamel maintains a safe standard of hygiene. The storage tank is protected against corrosion by a magnesium anode. This can be easily monitored, without the need for the storage tank to be emptied. It is color-coordinated with the supporting structure and the collector frame and thus visually appealing.
300 Liters Bosch Indirect Flat Roof Indirect (Closed Loop) Solar Water Heater collector features
Thanks to its sturdy aluminum frame, the TSS collector is particularly lightweight. Installers will have no trouble transporting it to your roof. Its ultrasonic-welded copper fin absorber with a highly selective coating is an impressive feature boasting first-class solar energy yield.
300 Liters Bosch Indirect Flat Roof Indirect (Closed Loop) Solar Water Heater Specifications
| Capacity | 200 Liters | 300 Liters |
| Collector(s) | 1PcX FKC-2.5, 2.5sq. M | 2PcX FKC-2.0, 4.0 sq. M |
| Model | TSS-200 | BSWH-FP -200I-F |
| System Type | Indirect system | |
| Heat Exchanger | Double wall type (horizontal) | |
| Total capacity (L) | 200 | 300 |
| Primary Curcuit Volume (L) | 13 | 20 |
| Secondary Curcuit Volume (L) | 198 | 280 |
| Primary Curcuit max Pressure (bar) | 2.5 | 2.5 |
| Secondary Curcuit max Pressure (bar) | 10 | 10 |
| Tank/Cylinder Diameter (mm) | 580 | 580 |
| Tank/Cylinder Length (mm) | 1320 | 1850 |
| Tank/Cylinder Weight (Kg) | 78 | 95 |
| Interior coating | Double Glass lined | |
| Insulation Type | Polyuterine CFC Free | |
| Type of expansion vessel | Interior | |
| Expansion Vessel Volume (L) | 3 | 3 |
| Erosion/Corrosion Protection | Magnesium Anode Electrical backup heater | |
| Electrical heater Power | 2.5Kw | 2.5 Kw |
| Support Structure | ||
| Material | Aluminium | |
| Profile Type | Angular | |
| Frame Type | Pithed roof support | |
| Hydraulic Accessories | ||
| Pipe material | UV Stabilized rubber hose | |
| Pipe connection | Copper | |
| Primary Curcuit Relief valve (bar) | 2.5 | |
| Secondary Curcuit Relief valve (bar) | 10 | |
| Other Characteristics | ||
| Approximate operating weight (kg) | 350 | 530 |
| Clearance between support (mm) | 920 | 920+920 |
| Dimensions of system installed (m) | 1.705 x 1.320 x 2.365 | 1.705 x 2.320 x 2.365 |
300 Liters Bosch Indirect Flat Roof Indirect (Closed Loop) Solar Water Heater Advantages
- Environmentally friendly hot water generation through the use of solar energy.
- An inexpensive solar system without pumps or electronic controllers.
- Double-walled, enameled steel tank with magnesium anode as corrosion protection.
- Available in a 300L storage tank.
- High-performance collector with weight-saving sturdy aluminum frame.
- Simple, quick assembly without the requirement of special tools.
- Corner protectors for safe transportation onto the roof.
- Flexible, expandable on-roof version for which the tank and collector can be separately installed.
- Suitable for installation on flat roofs.
