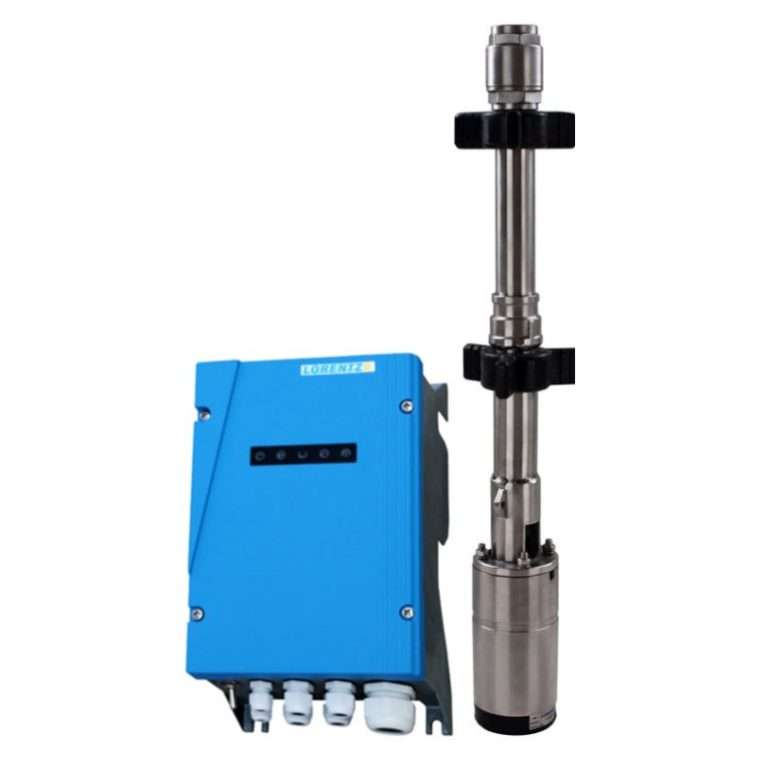

Lorentz ps1800 hr-14h submersible pump system
Lorentz ps1800 hr-14h-2 submersible pump system for 4″ wells are high quality products designed to supply applications High flow water, livestock watering, and irrigation tank management. Systems carry eccentric screw pump water economically,. These highly efficient pumps can achieve flow rates up to .Each system consists of a pump, a motor and a controller. This modular concept keeps all the electronics above the surface, enabling easy maintenance, easy access and low cost for the property.
Lorentz ps1800 hr-14h submersible pump system Applications
Water supply
Management of the water tank
chanels
Drinker won
Compression systems
Features
Quick, trouble-free
excellent functionality
High reliability and durability
Short cycle return on investment (ROI)
Lowest total cost of operation (TCO)
Specifications
Dynamic height max. 120 m
Flow max. 2,6 m³ / h
Vmp *> 102 V
Voc max. 200 V
Controller: PS1800
Control and monitor
Control inputs for dry run protection, remote control, etc..
Protected against reverse polarity, overload and temperature execiva
integrated MPPT
Low Voltage Disconnect battery operation mode
Engine: 1200-HR ECDRIVE
Brushless DC motor – maintenance free
Filled with water
Without electronic elements on the engine
Immersion max. 250 m, IP68
Pump Head: PE HR-14H **
High reliability and durability
Non-return valve
Premium Materials
Optional: dry run protection
4,5 kg controller
12 kg pump Undidad
Motor 7.0 kg
4,5 kg pump head
| Head | max. 120 m |
| Flow rate | max. 2,7 m³/h |
| Controller | Controller PS2-1800 |
| Power | max. 1,8 kW |
| Input voltage | max. 200 V |
| Optimum Vmp** | > 102 V |
| Motor current | max. 14 A |
| Efficiency | max. 98 % |
| Ambient temp. | -40…50 °C |
| Enclosure class | IP68 |
| Pump Unit | PU1800 HR-14H |
| Water temperature | max. 50 °C |
| Borehole diameter | min. 4,0 in |
| Pump end | PE HR-14H |
| Materials | AISI 304/316 |
| Motor | ECDRIVE 1200-HR / ECDRIVE 1800-HR |
| Rated Power | 1,7 kW |
| Motor speed | 900…3 300 rpm |
| Material | AISI 304/316 |
| Insulation class | F |
| Enclosure class | IP68 |
| Submersion | max. 150 m |
