LORENTZ PS1800 HR-14-2 Submersible Pump System

Availability:

Out of stock


Pump System PS1800 HR-14-2
max. total dynamic head [m] 60
max. flow rate [m³/h] 2.5
Solar Operation: Max Power Voltage (Vmp) > 102
Solar Operation: Open Circuit Voltage [V DC] max. 200
Solar Operation: Nominal Voltage [V DC] 72-96
Battery Operation: Nominal Voltage [V DC] 96

KSh 251,100.00 KSh 279,000.00 ex. TAX - KSh 251,100.00 inc. TAX

Out of stock

Compare

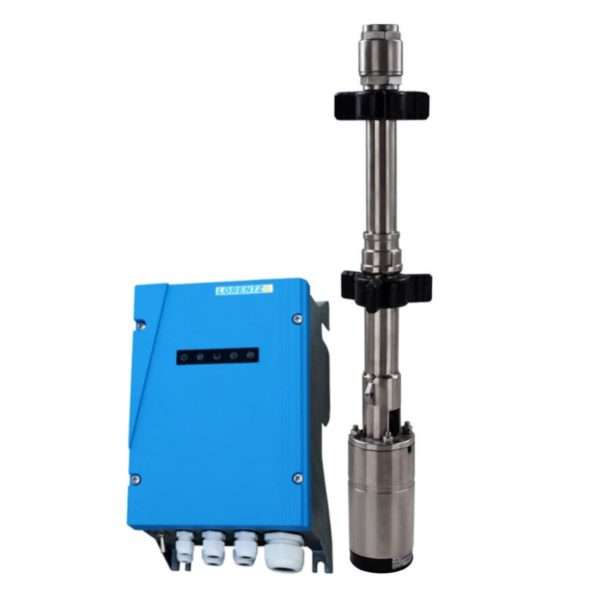

LORENTZ PS1800 HR-14-2 Submersible Pump System

LORENTZ PS1800 HR-14-2 Submersible Pump System powered helical rotor has been designed specifically to pump water efficiently using solar power

PS2-1800 HR-14 Performance

Flow rate:  10,000 litres per day @ 40 meters    panels required  2 x 330 watt solar panel
Flow rate:  12,000 litres per day @ 60 meters    panels required  3 x 330 watt solar panel

DC Controller:  Lorentz PS2-1800 DC controller max 1.8 kW
DC motor:  Lorentz ECODRIVE 1200-HR 1.7 kW IP68 3300 rpm 95mm diameter water filled motor
Pump End:  HR-14 helical rotor  304/316 ss with rubber stator
Pump connection:  32mm FI BSP

LORENTZ PS1800 HR-14-2 Submersible Pump System

Head max. 60 m
Flow rate max. 2,5 m³/h
Controller Controller PS2-1800
Power max. 1,8 kW
Input voltage max. 200 V
Optimum Vmp** > 102 V
Motor current max. 14 A
Efficiency max. 98 %
Ambient temp. -40…50 °C
Enclosure class IP68
Pump Unit PU1800 HR-14
Water temperature max. 50 °C
Borehole diameter min. 4,0 in
Pump end PE HR-14
Materials AISI 304/316
Motor ECDRIVE 1200-HR / ECDRIVE 1800-HR
Rated Power 1,7 kW
Motor speed 900…3 300 rpm
Material AISI 304/316
Insulation class F
Enclosure class IP68
Submersion max. 150 m
