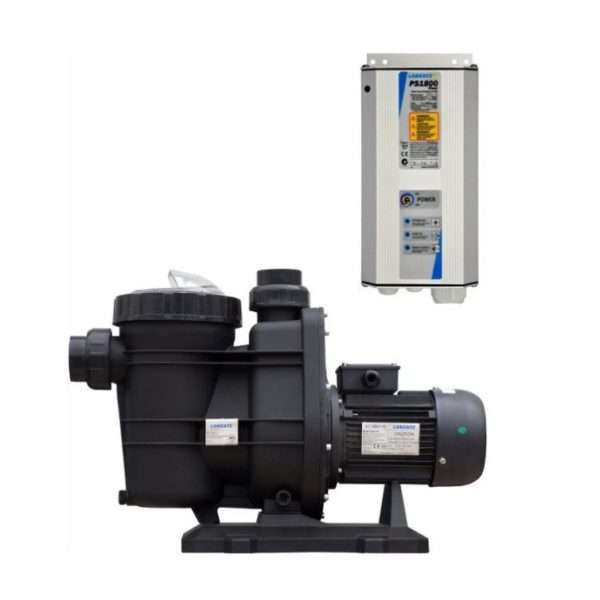

LORENTZ PS1800 CS-37-1 Solar Surface Pump System
Solar Pool Pump includes:
1 controller PS 1800
1 Pump LORENTZ PS1800 CS-17-1 Solar
PROPERTIES
- Flow up to 36 m3 / h
- Maintenance-free thanks to the use of DC motor brushless.
- High yield.
LORENTZ PS1800 CS-37-1 Solar Surface Pump System APPLICATIONS:
- Propulsion water purifying filter installations pools.
- Regulation and discharge ponds.
- Water supplies.
- Ponds.
Technical data
- Item # 2925
- Total dynamic head max. 14 m
- Flow rate max. 32 m³/h
- Vmp** > 102 V
- Voc max. 200 V
Controller: PS1800
- controlling and monitoring
- control inputs for well probe, dry running protection, remote control etc.
- protected against reverse polarity, overload and high temperature
- integrated MPPT (Maximum Power Point Tracking)
- low voltage disconnect for battery operation
Motor: ECDRIVE 1800 CS-37
- maintenance-free brushless DC motor
- no electronics in the motor
- premium materials
Pump end: PE CS-37-1
- high reliability and life expectancy
- max. Suction head 3m
- premium materials
- optional: dry running protection
Controller 4,5 kg
Pump unit 21 kg
motor 10 kg
pump end 11 kg
features:
- Control and monitoring of the pumping system indicating the operating conditions.
- Mounted at surface (no submerged electronic parts).
- Two inputs for dry running sensor, float switch, pressure switch, remote control, etc..
- New automatic reset to 20 minutes after the dry run protection.
- Protection against reverse polarity, overload and high temperature.
- Control of engine speed. The regimen may be adjusted to maximum 30% of the flow, approximately.
- Solar operation: MPPT (Maximum Power Point Tracking)
- Battery operation: deep discharge protection and automatic reset again when you reach the minimum voltage.
- Maximum efficiency of 92% (motor + controller).
- Housing: IP 54 (protection against dust and water spray
| Head | max. 14 m |
| Flow rate | max. 36 m³/h |
| Controller | PS1800 Pool |
| Power | max. 1,3 kW |
| Input voltage | max. 200 V |
| Optimum Vmp** | > 102 V |
| Motor current | max. 14 A |
| Efficiency | max. 98 % |
| Ambient temp. | -30…50 °C |
| Enclosure class | IP65 |
| Pump Unit | PU1800 Pool CS-37-1 |
| Suction head / Positive inlet head | max. 3 m |
| Water temperature | max. 60 °C |
| Pump end | PE CS-37-1 |
| Material | PP |
| Motor | ECDRIVE 1800 CS-37 |
| Rated Power | 1,7 kW |
| Motor speed | 900…3 300 rpm |
| Material | AL/AISI 304 |
| Insulation class | F |
| Enclosure class | IPX4 |
