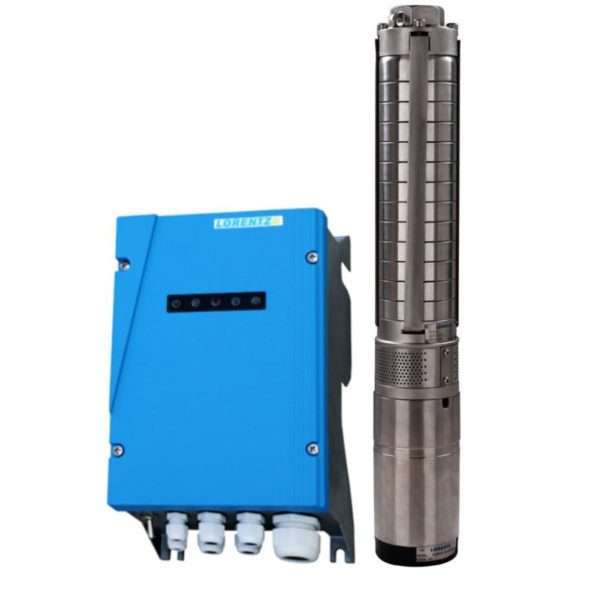

LORENTZ PS1800 C-SJ5-12 Submersible Pump System
Bomba Solar Lorentz PS1800 C-SJ5-12
LORENTZ PS1800 C-SJ5-12 Submersible Pump System are high quality products designed to supply applications High flow water, livestock watering, and irrigation tank management. They provide a large volume of water economically sustainable and anywhere using solar energy. These highly efficient pumps can achieve flow rates up to 79 m3 / h. Each system consists of a pump, a motor and a controller. This modular concept keeps all the electronics above the surface, enabling easy maintenance, easy access and low cost for the property.
Applications
- Water supply
- Management of the water tank
- chanels
- Drinker won
- Compression systems
LORENTZ PS1800 C-SJ5-12 Submersible Pump System Features
- Quick, trouble-free
- excellent functionality
- High reliability and durability
- Short cycle return on investment (ROI)
- Lowest total cost of operation (TCO)
Specifications
- Dynamic height max. 70 m
- Flow max. 7,6 m³ / h
- Vmp *> 102 V
- Voc max. 200 V
Controller: PS1800
- Control and monitor
- Control inputs for dry run protection, remote control, etc..
- Protected against reverse polarity, overload and temperature execiva
- integrated MPPT
- Low Voltage Disconnect battery operation mode
Engine: 1200-C ECDRIVE
- Brushless DC motor – maintenance free
- Filled with water
- Without electronic elements on the engine
- Immersion max. 250 m, IP68
Pump Head: PE C-SJ5-12
- High reliability and durability
- Non-return valve
- Premium Materials
- Optional: dry run protection
4,5 kg controller
14 kg pump Undidad
Motor 7 kg
6,5 kg pump head
| Head | max. 70 m |
| Flow rate | max. 7,6 m³/h |
| Controller | Controller PS2-1800 |
| Power | max. 1,8 kW |
| Input voltage | max. 200 V |
| Optimum Vmp** | > 102 V |
| Motor current | max. 14 A |
| Efficiency | max. 98 % |
| Ambient temp. | -40…50 °C |
| Enclosure class | IP68 |
| Pump Unit | PU1800 C-SJ5-12 |
| Water temperature | max. 50 °C |
| Borehole diameter | min. 4,0 in |
| Pump end | PE C-SJ5-12 |
| Material | AISI 304 |
| Motor | ECDRIVE 1200-C / 1800-C |
| Rated Power | 1,7 kW |
| Motor speed | 900…3 300 rpm |
| Material | AISI 304/316 |
| Insulation class | F |
| Enclosure class | IP68 |
