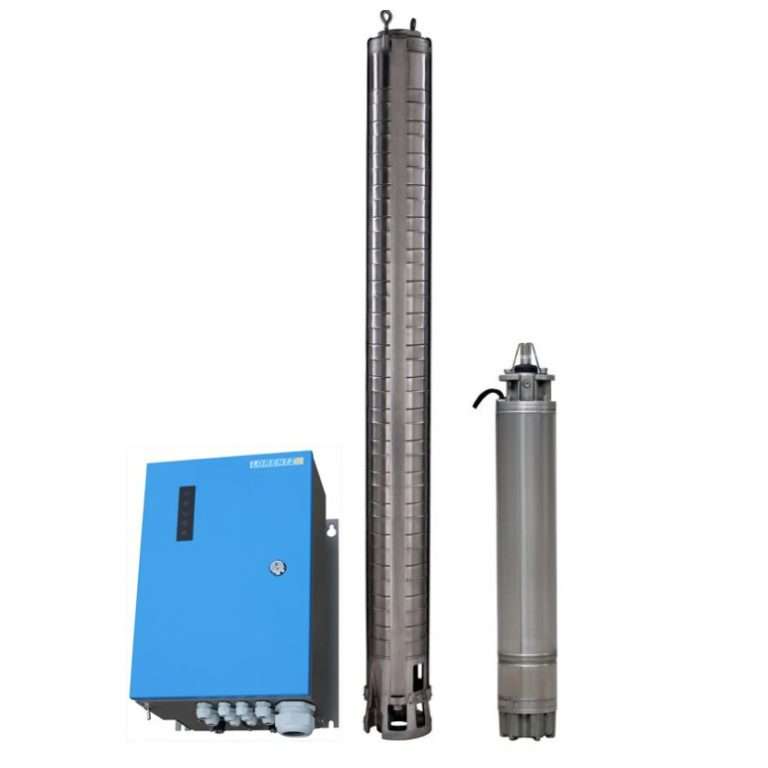

LORENTZ PS 15k2 C-SJ17-18
The LORENTZ PS 15k2 C-SJ17-18 systems are our next generation of solar water pumps designed to deliver the higher volume of water in a wide range of heights. The PSK2 pumps operate equally well in projects of irrigation and drinking water applications where wide area reliably meet the most demanding requirements, economically and without the use of fossil fuels or network connection.
PSK2 provides all the features and functions that water projects require larger scale including a wide range of sensor inputs and built-in monitoring and management. PSK2 also supports LORENTZ CONNECTED services for cost-effective remote monitoring and management. Although technically advanced, PSK2 is simple to specify, install and maintain and offers outstanding performance driven by the long experience of LORENTZ solar pumping out of network.
LORENTZ PS 15k2 C-SJ17-18 benefits
- Strong ROI compared to diesel driven pump, which reduces production costs of water and carbon footprint
- Power management techniques to deliver more water based on the available power
- Inputs and outputs comforts for a comprehensive economic solution for single unit
- Wide range of products to better correspond to each application and efficiency optimizer
- Specification, installation and quick configuration allow rapid deployment and minimal down time
- Smart Modular Design product for repair simple and profitable product
- Monitoring functions and powerful control that are incorporated provide detailed operational information and easy access to advanced features
features
- Designed in Germany to high quality non-corrosive
- Housing IP54 / NEMA 3A resistant to corrosion
- 0-60Hz control engine speed
- Wide range of inputs to influence the behavior of the pump
- Built monitoring and management including integrated data recording performance for five years, access to Android ™ App PumpScanner through smart devices and integration with remote management service LORENTZ pumpMANAGER
- Irradiation incorporated measurement and control of the pump based on the power available
- Integration with LORENTZ SmartPSU for connection to the grid / generator and a mixture of power
PS15K2 C-SJ17-18
System immersed pump for 6 “wells
Range of systems
- Height max. 140 m
- Flow max. : 22 m³ / h
Specifications
driver PS9k2
- Control inputs for dry run protection, remote control, etc.
- Protected against reverse polarity, overload and temperature exec
- MPPT (Maximum Power Point Tracking) integrated
- Max. 15 kW
- Input voltage max. 850 V
- Optimal Vmp *:> 575 V
- Motor current max. 24 A
- Efficiency max. 98%
- Temp. Environment: -30 … 50 ° C
- Type of protection: IP54
Motor AC DRIVE SUB 6 “11kW
- Motor CA-phase high efficiency
- Frequency: 25 … 50 Hz
- Premium materials, stainless steel AISI 304
- Without electronic elements on the engine
- Engine speed: 1,400 … 2850 rpm
- Power factor: 0.87
- Insulation class: F
- Type of protection: IP68
- Immersion max. : 300 m
Pump head PE C-SJ17-18
- Non-return valve
- Premium materials, stainless steel AISI 304
- Optional: protection against dry operation
- centrifugal pump
Undidad pump PU15k2 C-SJ17-18 (Motor, pump head)
- Min drilling diameter. 8.0 in
- Water temperature max. : 30 ° C
standards
- 2006/42 / EC, 2004/108 / EC, 2006/95 / EC
Meets the Requirements of:
- IEC / EN 61702: 1995
- IEC / EN 62253 Ed.1
