PUMP

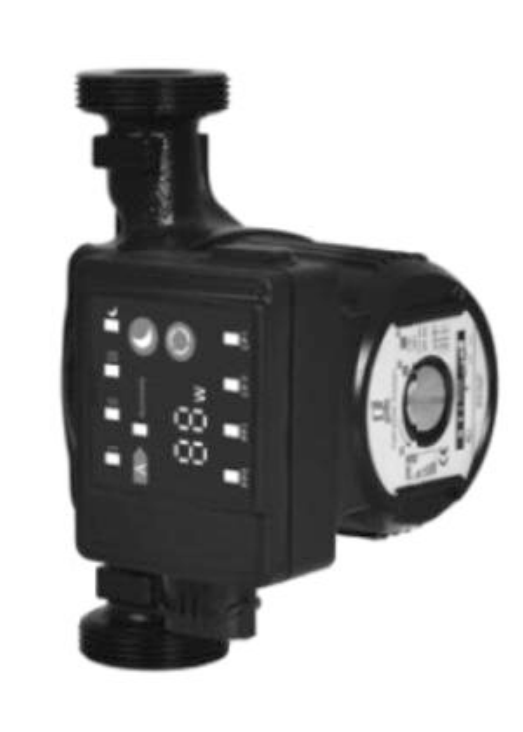

The construction of these pumps is a testament to durability and efficiency. With a cast iron pump housing, a glass fiber-reinforced polypropylene impeller, a stainless steel rotor, and a ceramic bearing support, you can trust in the reliability of DAYLIFF DQ circulator pumps. Moreover, each pump comes complete with female threaded BSP union connections, ensuring seamless integration into your setup.
Advanced Motor Technology
The integral 2-pole asynchronous squirrel-cage motor at the heart of these pumps is designed to operate across three speeds, providing you with flexibility and adaptability. The motors are thoughtfully equipped with built-in capacitors and overload protection. Plus, they can be effortlessly connected directly to the mains supply using a 5A fuse or MCB for added convenience.
Vital Technical Specifications
- Enclosure Class: IP54
- Insulation Class: F
- Voltage: 1x240V BB
- Speed: 2900rpm
Ideal Operating Conditions
To achieve optimal performance, consider the following operating conditions:
- Pumped Liquid: Suitable for thin, clean, and chemically non-aggressive liquids without solids or fibers.
- Max Fluid Temperature: Maintaining a range of -10°C to 110°C. Remember, the liquid temperature should surpass the ambient temperature.
- Max. Ambient Temperature: Operates efficiently within 10°C to 50°C.
- Max. Operating Pressure: Designed for pressures up to 6 bar.
Effortless Installation
When setting up your pumps, keep the following installation guidelines in mind:
- Orientation: Pumps should be installed with the rotor shaft in a horizontal position and vertical water flow.
Discover unparalleled efficiency and reliability with DAYLIFF DQ circulator pumps. Tailor your flow, maximize performance, and ensure your systems run smoothly—every time.
PUMP DATA
| Model | Power (kW) | Current (A) | Dimensions (mm) | Weight (kg) | ||
| L | H | W | ||||
| DQ 25/60 | 93 | 1.5 | 180 | 125 | 90 | 3 |
