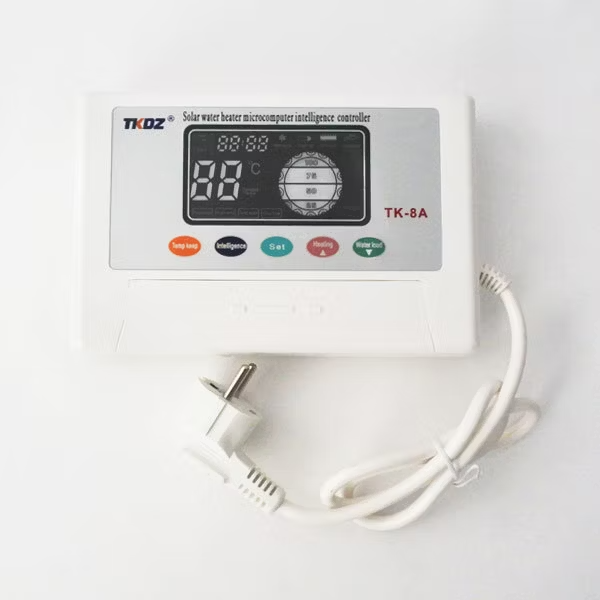

TK-8A Solar Water Heater Controller for Non Pressurized Systems

Description

TK-8A Solar Water Heater Controller for Non-Pressurized Systems

TK-8A Solar Water Heater Controller is a common intelligent Solar water heater controller used with non-pressurized systems. The controller has the intelligence to measure water level and temperature using the included sensor probe. It can refill the tank with water at certain intervals based on preset data.

The controller can also support cold weather booster heater elements. See data below for technical specifications.

TK-8A Solar Water Heater Controller Technical Data

1. Supply Volatge: Power: 220VAC±10%
2. Mechanical Size: 20x13x3.6cm
3. Temperature detective precision: ±2°C
4. Temperature detect range: 0~90°C
5. Power Consumption: <5W
6. Auto control supercharging pump/Electric heating belt ≤ 500W
7. Supported Heater Element Rating ≤ 2000W

TK-8A Solar Water Heater Controller Main Functions

1. Global time.
2. Start self-checking
3. Water temperature preset
4. Water level preset
5. Water insufficiency loading
6. Temperature loading
7. Constant water level coding
8. Manual control
9. First & Second time timing loading
10. First & Second time timing heating
11. Pipe heat keeping
12. Pipe supercharging
13. Constant temperature heating
14. Electricity leakage protection
15. Auto drainage
16. High-temperature loading protection
17. Dry heating prevent
18. Electric heating belt fire protection
19. Power off memory

Controller TK-8A For Low Pressure Solar Geyser
TK-8A Solar Controller for Solar Water Heater, suitable for integrated non pressure solar system, easy maintenance. Suitable For Integrated non pressure Solar Hot Water System!

TK-8A Solar Water Heater Controller is available for sale online at the best price from SolarShop Africa
