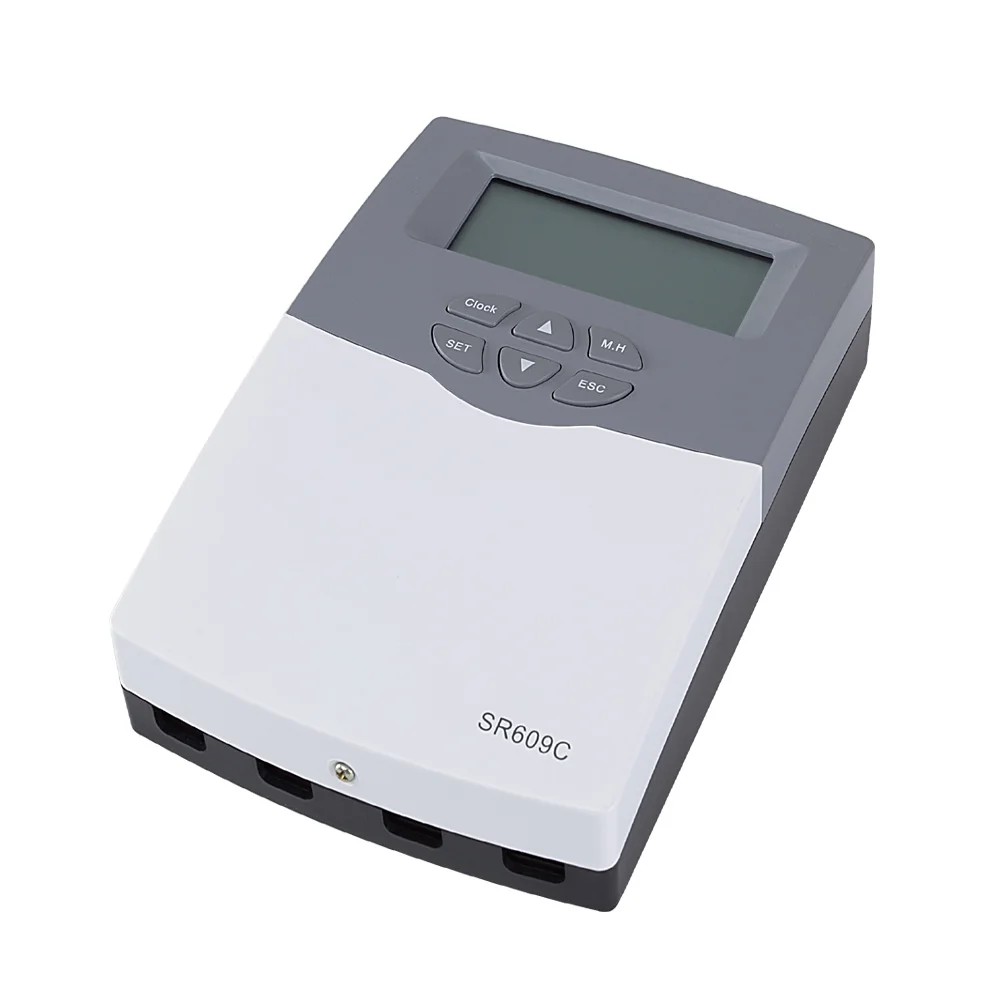

SR609C-WIFI Solar Water Heater Controller

Original price was: KSh19,500.00.Current price is: KSh14,500.00.

SR609C-WIFI Solar Water Heater Controller

  • Power supply：AC230V ±10%,50Hz
  • Power consumption：< 3W
  • Accuracy of temperature measuring： ± 2°C
  • Range of tank temperature measuring： 0 ~100 °C
  • Suitable power of electrical heater: ≤ 1.5KW or ≤ 3KW (optional)
  • Inputs:T1: NTC10K, B3950 sensor (≤ 135°C) for tank, (PVC cable ≤105°C),
  • T2: temperature sensor, optional
  • Outputs: H1 for electrical heater, R1: Relay.
  • Ambient temperature ：-10°C ~ 50°C.
  • Water proof grade： IP40.Download 3 Kilowatts SR609C Intelligent Solar Water Heater Controller operator pdf manual here >>>
Category:

Description

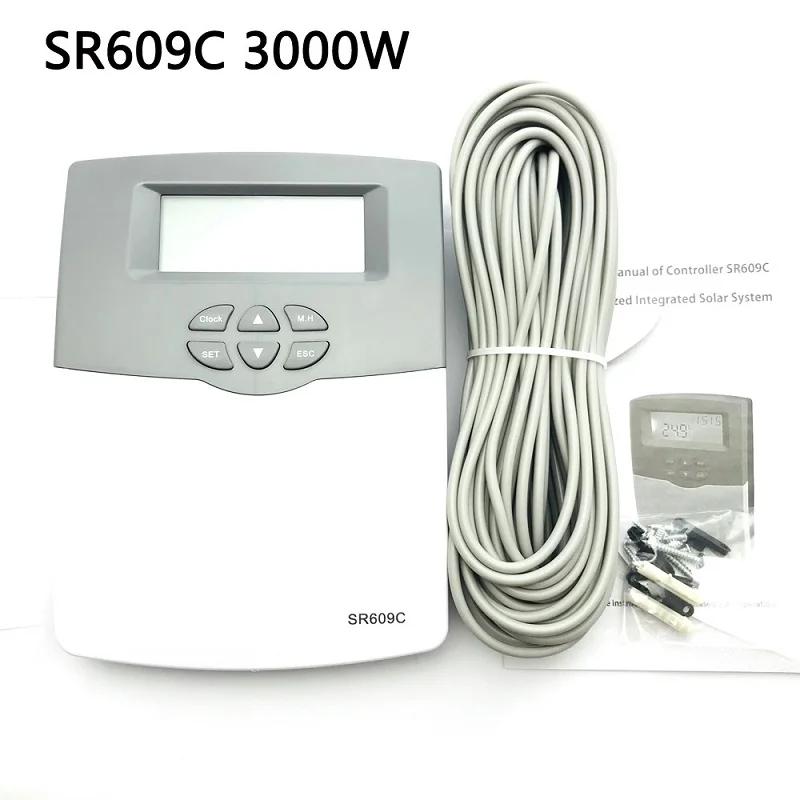

SR609C 3Kw Intelligent Solar Water Heater Controller -Pressurized

There are 2 options for SR609C, for 1500W and 3000W electric heater. The controllers come in two distinctive sizes too.

  1. Size of the controller for electrical heater of 3000W: 187mm×128mm×46mm
  2. Size of the controller for electrical heater of 3000W: 205mm×150mm×50mmSR609C-WIFI Solar Water Heater ControllerThere are 2 options for SR609C, for 1500W and 3000W electric heater. Controller size is different:
    1. Size of controller for electrical heater of 1500W: 187mm×128mm×46mm
    2. Size of controller for electrical heater of 3000W: 205mm×150mm×50mm

    Intelligent High Pressure Solar Hot Water Heater Controller Sr609c

Intelligent High Pressure Solar Hot Water Heater Controller Sr609c
Intelligent High Pressure Solar Hot Water Heater Controller Sr609c

SR609C-WIFI Solar Water Heater Controller | Technical specification

  • Power supply：AC230V ±10%,50Hz
  • Power consumption：< 3W
  • Accuracy of temperature measuring： ± 2°C
  • Range of tank temperature measuring： 0 ~100 °C
  • Suitable power of electrical heater: ≤ 1.5KW or ≤ 3KW (optional)
  • Inputs:T1: NTC10K, B3950 sensor (≤ 135°C) for tank, (PVC cable ≤105°C),
  • T2: temperature sensor, optional
  • Outputs：H1 for electrical heater, R1: Relay.
  • Ambient temperature ：-10°C ~ 50°C.
  • Water proof grade：IP40.

Buy SR609C-WIFI Solar Water Heater Controller online in Kenya at the best price on at SolarShop Africa.
