SR609C 3Kw Solar Water Heater Controller

Description

SR609C 3Kw Solar Water Heater Controller for Pressurized Systems

SR609C 3Kw Solar Water Heater Controller is Engineered with cutting-edge technology, this controller optimizes the performance of your solar water heater, ensuring efficient and reliable operation. Whether for residential or commercial use, the SR609C Series of controllers offer intuitive controls and robust functionality, making it the ideal choice for maximizing the benefits of your solar water heating system.

SR609C Series of Controllers Details

There are 3 options for SR609C Series of Solar Water heaters. The difference in usually due to the heater element they can support and the level of level of intelligence.

1. SR609C 3 Kw Pressurized Solar Water Heater Controller. This is the controller on sale here. The controller can support heater elements rated up to 3Kw. Unlike (2) below, it do not have internet connectivity. The physical dimensions of the controller are as; 205mm×150mm×50mm
2. SR609C -WiFi 3 Kw Pressurized Solar Water Heater Controller. Like (1) above, the heater supports heater elements of up to 3Kw. It also have WiFi connectivity for remote monitoring. The controller is only available for sale on SolarShop Africa.  The physical dimensions of the controller are as; 205mm×150mm×50mm
3. SR609C 1.5 Kw Pressurized Solar Water Heater Controller.  The controller can support heater elements rated up to 1.5 Kw. Unlike (2) below, it do not have internet connectivity. The physical dimensions of the controller are as; 187mm×128mm×46mm

SR609C 3Kw Solar Water Heater Controller for Pressurized Systems has the following features;

1. Efficient Performance: The SR609C controller maximizes the efficiency of your solar water heater, delivering hot water whenever you need it.
2. Intelligent Control: Equipped with advanced algorithms, the controller intelligently manages the operation of your solar water heating system for optimal performance.
3. User-Friendly Interface: With a user-friendly interface, the SR609C controller makes it easy to monitor and adjust settings according to your preferences.
4. Compatibility: Compatible with a wide range of solar water heating systems, making it a versatile choice for various applications.
5. Reliable Operation: Built to withstand harsh environmental conditions, the SR609C controller ensures reliable operation year-round.
6. Safety Features: Incorporates safety features to protect your solar water heating system and ensure peace of mind.

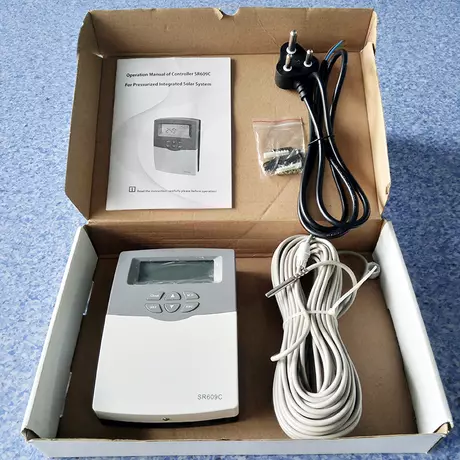

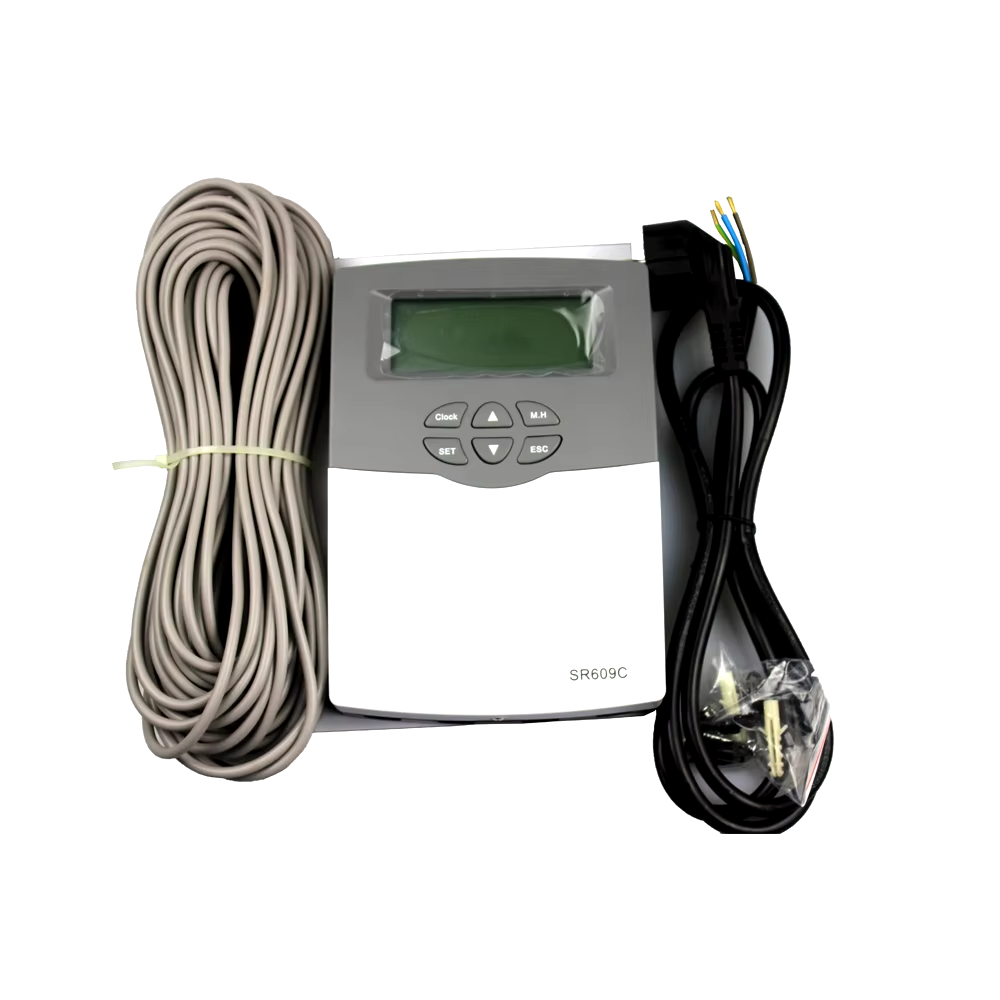

7. Easy Installation: Comes with a 20m NTC10K sensor and a 10A power cable for a hassle-free setup.
8. Customizable Heating Schedule: Features three time sections for manual heating, tailoring your solar water heater’s performance.
9. Durable Waterproof Design: IP40 waterproof grade ensures the controller withstands various weather conditions.

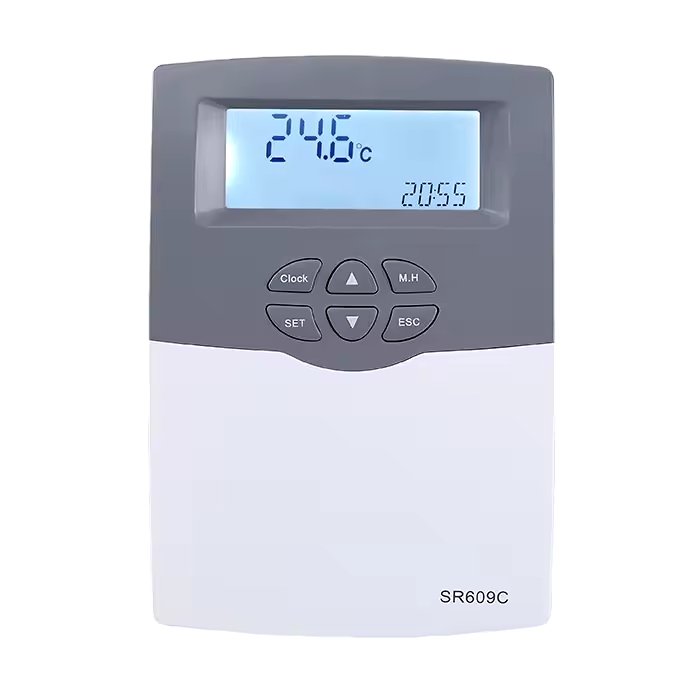

10. User-Friendly Interface: Equipped with a clear LCD screen for easy monitoring and control of your solar water heater.
11. AOC Water Heater Waterproof Solar Controller Intelligent Temperature Control: Accurate ± 2oC temperature measuring ensures precise heating, maintaining optimal water temperature.

SR609C 3Kw Solar Water Heater Controller Technical Data Table:

SR609C 3Kw Solar Water Heater Controller Mechanical data

Optional accessories for SR609C 3Kw Solar Water Heater Controller (Not included)

2.3.1 Electromagnetic relay : SR802,can control electric heating of ≤4000W.

Contactor unit of high power : SR802 When user selects electrical heater as back-up device, we recommend using SR802 unit connecting controller and electrical heater. Technical data of SR802 Dimension: 100mmx100mmx65mm Power supply:110V～240V/AC 50/60Hz Suitable power: ≤ 4000W Available ambient temperature: -10 ~ 50°C Water proof grade: IP43

SR802 CONNECTION DIAGRAM:

2.3.2 SR609C( Controllable 3000W electric heating model )

Product’s shape dimensions：205mmX150mmX50mm

SR609C 3Kw Solar Water Heater Controller  Working Principle

SR609C 3Kw Solar Water Heater Controller Basic Settings Explanation.

Upon installation of your SR609C 3Kw Solar Water Heater Controller, you need to set Time and Timed heating intervals.

To set the Time, Press the Clock button and follow the settings like the old CASIO clocks.

To set timed heating intervals, press SET button. Below are conditions to set paraments.

TH10 First heating ON conditions
TH1F First heating OFF Conditions

TH30 Third heating ON conditions
TH3F Third heating OFF Conditions

The Second (Mid-Day) Heating parameters are;
TH20 Second heating ON conditions
TH2F Second heating OFF Conditions

In most cases, you don’t need to boost at Mid day so the settings are skipped.
