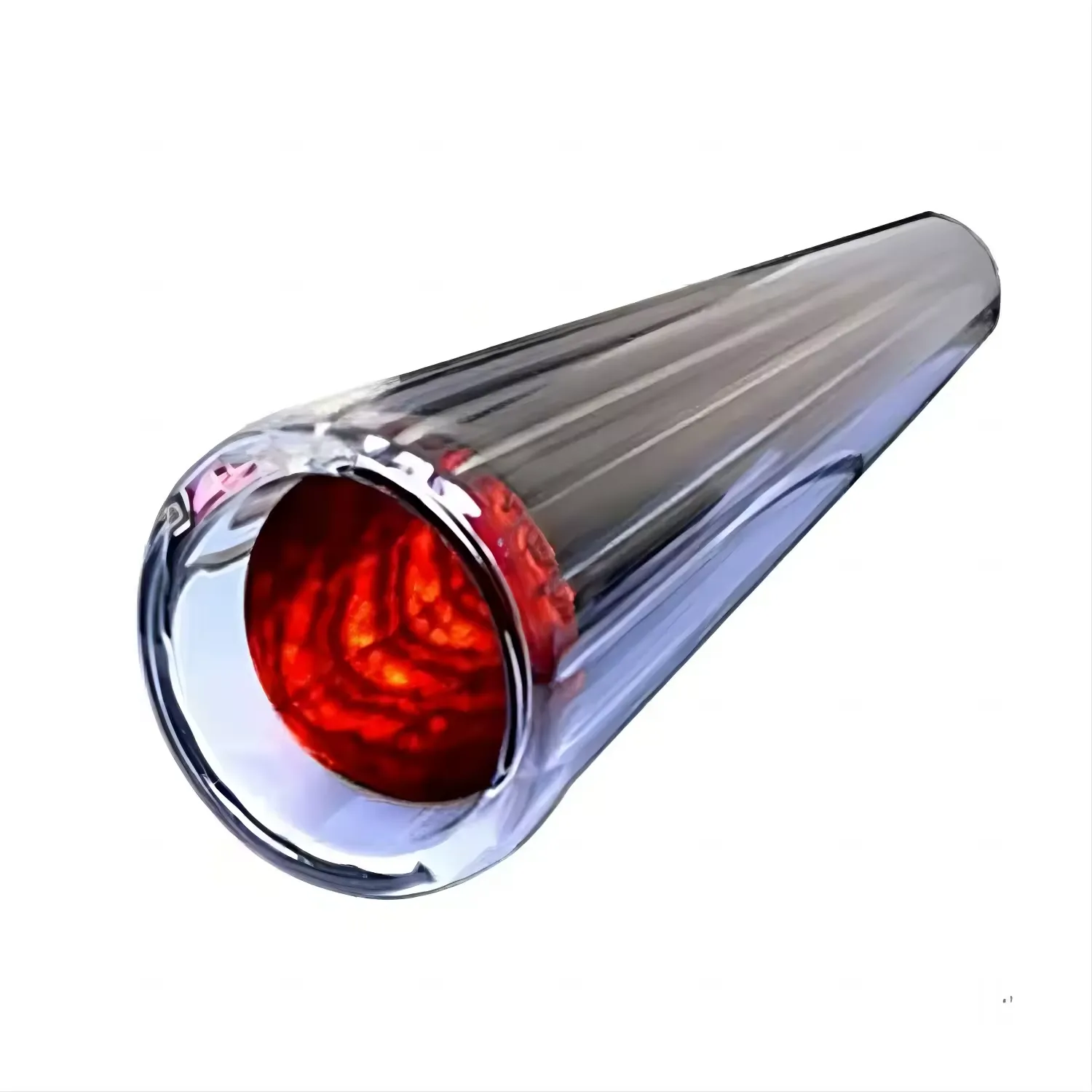

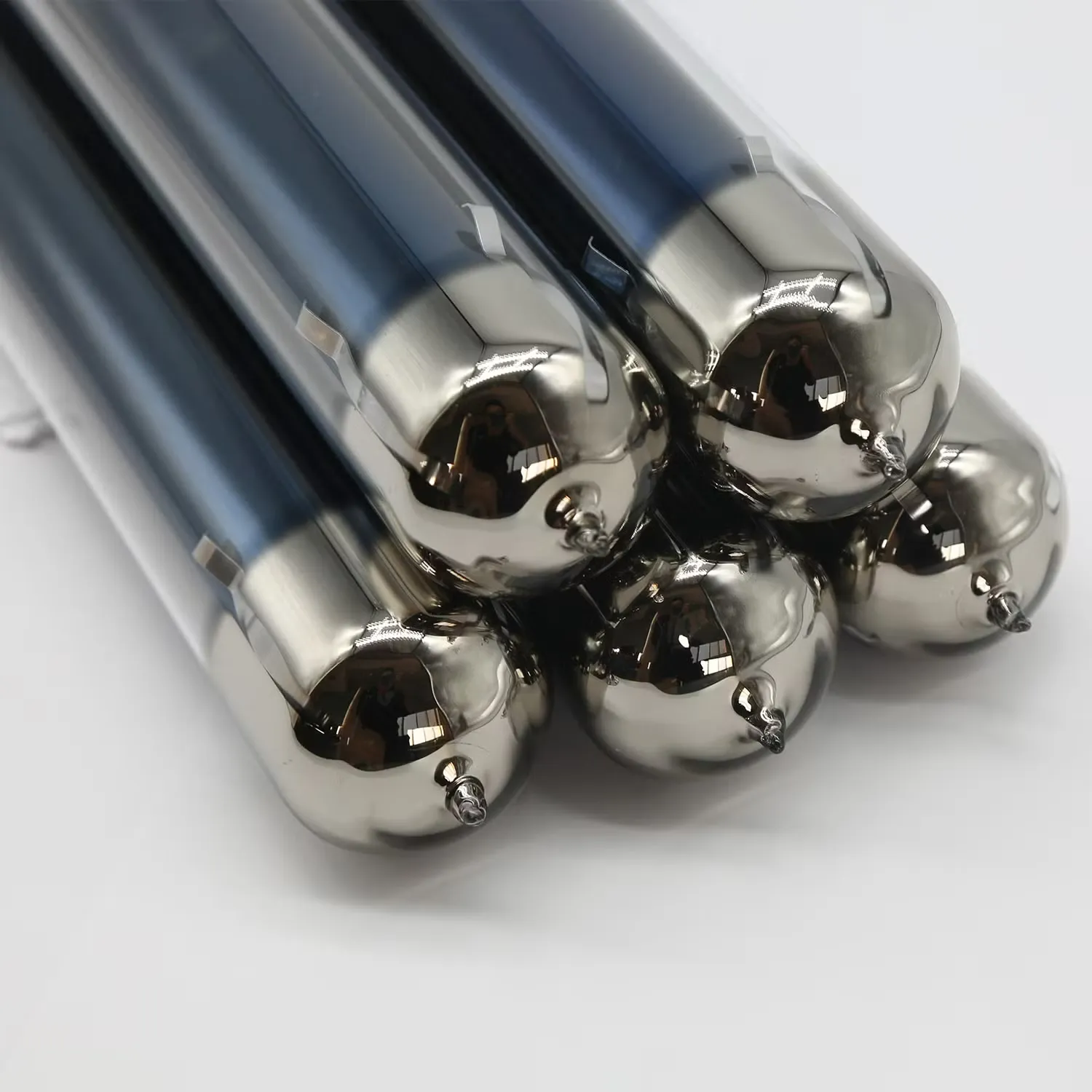

Evacuated Vacuum Tube for Solar Water Heaters

Original price was: KSh3,000.00.Current price is: KSh2,500.00.

An Evacuated Vacuum Tube is a highly efficient solar thermal collector used to absorb sunlight and convert it into heat. These tubes are designed with a vacuum layer that minimizes heat loss, providing superior insulation. Commonly used in solar water heating systems, they are known for their durability, high performance, and ability to generate heat even in low-light conditions. Ideal for both residential and commercial applications, evacuated vacuum tubes are a reliable and energy-efficient solution for sustainable heating.

Check More Technical Info about Evacuated Tubes Here >>>

Category:

Description

Evacuated Vacuum Tube for Solar Water Heaters is an innovative and energy-efficient solution for harnessing solar energy to heat water. Designed with advanced vacuum insulation and high-performance glass, these tubes maximize heat absorption while minimizing energy loss. Ideal for residential, commercial, and industrial use, they provide reliable performance in various climates, including low-temperature conditions. Their durable, weather-resistant design ensures long-lasting operation with minimal maintenance.

Key Features

  1. High Thermal Efficiency: Utilizes vacuum insulation to retain heat and reduce energy loss.
  2. Durable Construction: Made with borosilicate glass for strength and thermal stability.
  3. All-Weather Performance: Operates efficiently in low temperatures and cloudy conditions.
  4. Corrosion Resistance: Long-lasting performance in humid and challenging environments.
  5. Eco-Friendly: Reduces reliance on non-renewable energy sources by utilizing solar energy.
  6. Easy Integration: Compatible with a wide range of solar water heating systems.

Evacuated Vacuum Tube Technical Table

Feature Specification
Material Borosilicate Glass
Insulation Vacuum Sealed
Length 1800 mm  (Kenya’s Available Model)
Outer Diameter 58 mm
Inner Diameter 47 mm
Heat Retention > 95%
Operating Temperature -30°C to 250°C
Lifespan 15+ Years

Evacuated Vacuum Tube

 Features and Specifications

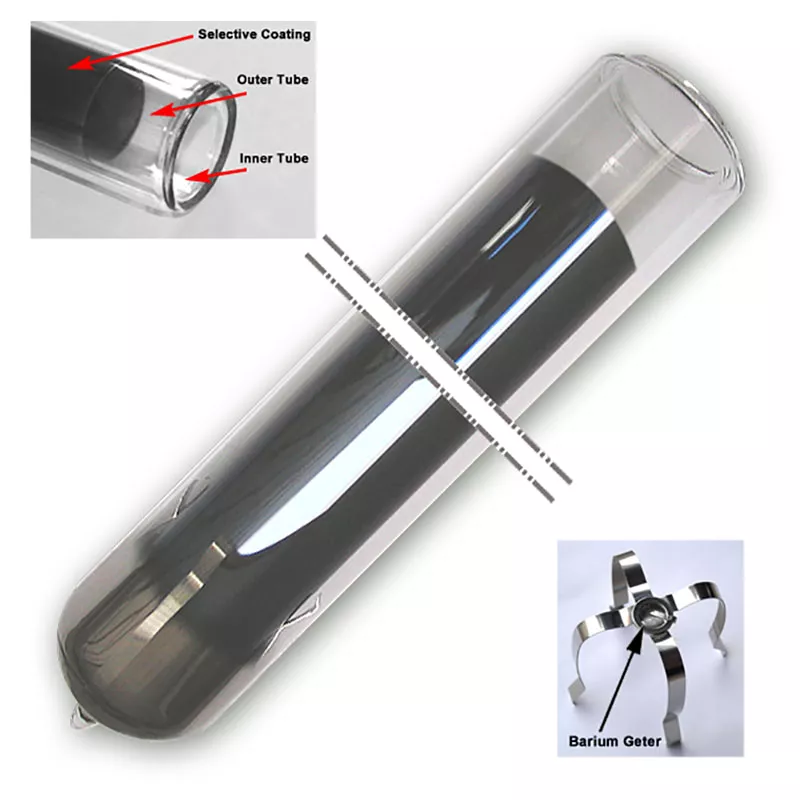

  • 3.3 borosilicate glass with good light transmission and hard strength can resist temperature difference up to 200 °C, with strong resistance to cold and heat shock, with low burst probability.

  • The circular structure automatically tracks the sunlight, which maintains high efficiency throughout the day and provides stable heat supply.

  • The vacuum between the two glass tubes reaches 5*10-4Pa with good insulation performance and small heat loss, which maintains a high efficiency for a long time.

  • AL/N/AL/SS/CU selective absorbing film coating with absorption rate >93%, reflectivity<8%, high thermal efficiency.

  • Excellent magnetic sputter coating process control, selective absorbing film adhesion, high temperature and low temperature resistance, not easy to fall off, long life.

  • 20 years service life and low cost.

Evacuated Vacuum Tube

Buy Evacuated Vacuum Tube at the best price from SolarShop Africa.
