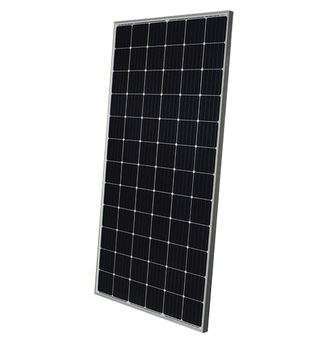

Jinko 390W Monocrystalline Solar Panel 72 Cell pv module solar panel.
390W Jinko Monocrystalline Solar Panel Physical data & specs
|
Cell Type:
|
monocrystalline 156.75*156.75mm,5BB
|
||
|
Cell number:
|
72cells (6*12)
|
||
|
Dimensions:
|
1979*1002*40mm
|
||
|
Front glass:
|
3.2mm High transmission,Low lron,Tempered ARC Glass
|
||
|
Backsheet:
|
White TPT
|
||
|
Junction box:
|
Potted.IP 67.1500VDC.3Schottky bypass diodes
|
||
|
Frame:
|
Anodized Aluminium Alloy
|
||
|
Connector:
|
MC4 Compatible
|
||
|
Cable:
|
4.0mm²/ 12AWG, 1000 mm, IP67, 900mm length
|
||
390W Jinko Monocrystalline Solar Panel Electrical data & specs
|
Electrical Data(STC)
|
|||||
|
Rated Power Watt- Pmax (W)
|
380W
|
385W
|
390W
|
395W
|
400W
|
|
Maximum Power Voltage-Vmp(V)
|
40.5V
|
40.8V
|
41.1V
|
41.4V
|
41.7V
|
|
Maximum Power Current- Imp (A)
|
9.39A
|
9.44A
|
9.49A
|
9.55A
|
9.60A
|
|
Open Circuit Voltage- Voc (V)
|
48.9V
|
49.1V
|
49.3V
|
49.5V
|
49.8V
|
|
Short Circuit Current- Isc (A)
|
9.75A
|
9.92A
|
10.12A
|
10.23A
|
10.36A
|
|
Module Efficiency (%)
|
18.69%
|
18.94%
|
19.19%
|
19.44%
|
19.69%
|
|
Power Output Tolerance (W)
|
0 ~ +3
|
||||
|
STC
|
Irradiance 800W/m², Ambient temperature 20℃,Wind speed 1m/s
|
||||
|
Operational Temperature
|
-40~+85℃
|
||||
|
Maximum System Voltage
|
1500VDC
|
||||
|
Max Series Fuse Rating
|
20A
|
||||
