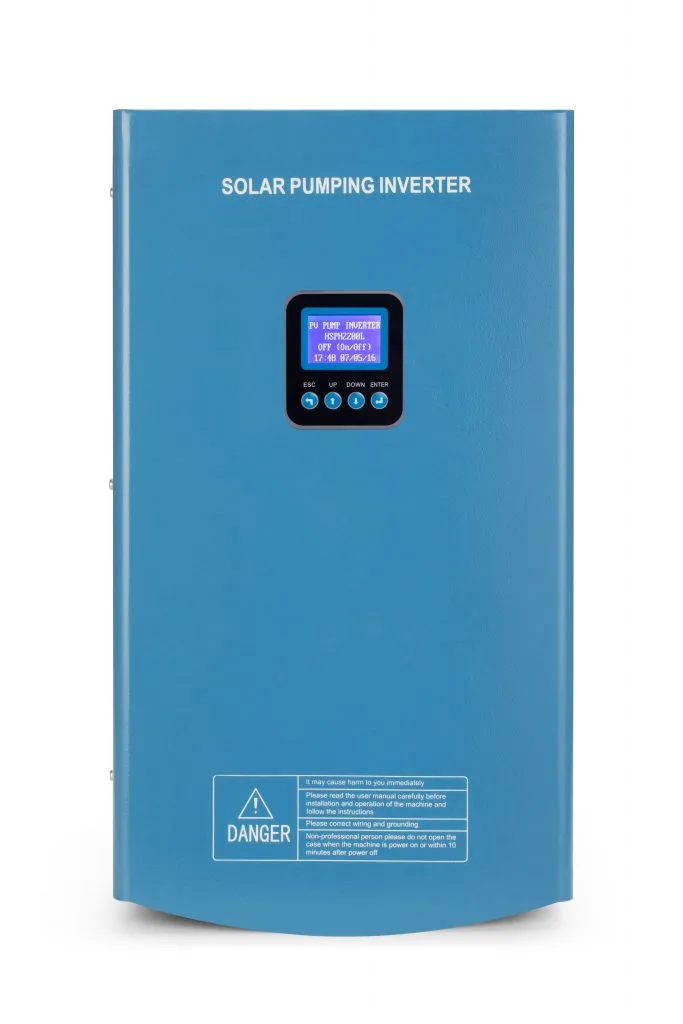

Hober 2.2 Kw Solar Water Pumping Inverter | Three-Phase
Hober 2.2Kw Three Phase Solar Pumping Inverter converts the DC power of the PV array to Three Phase-AC power and drives the pump, according to the power of PV array output, regulates output frequency and let PV output max power at all times.
Hober 2.2 Kw Solar Water Pumping Inverter | Three-Phase | Brand Introduction
Hober 2.2Kw Three-Phase Hybrid Solar Pumping Inverter Advantage:
- Hybrid (Solar, AC Power, Battery, Diesel generator)
- Automatic switching
- MPPT MEPT function
- Solar Booster for saving solar panels
- Metal Shell, Waterproof IP65
- Setting working time, Control the flow
- Film capacitor 100000 working hours
- Work with three phase 380V/415V pumps that meet its output parameters.

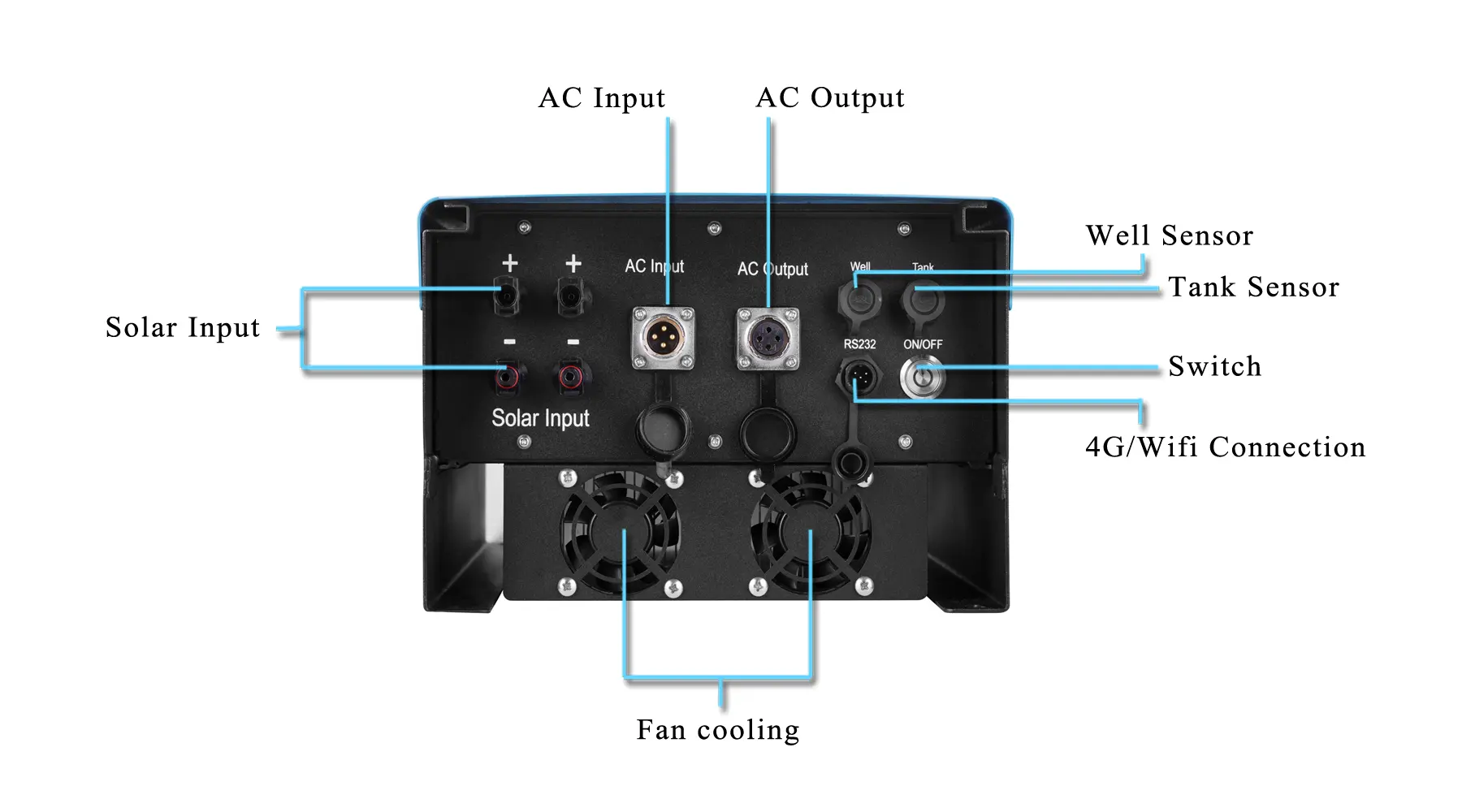

- Has accessible sensor connectors for both thank and borehole.
- Unique High PV Voltage support of up to 900V unlike most other brands in the market.
Hober 2.2 Kw Solar Water Pumping Inverter | Three-Phase | Features:
- Convert the DC power of solar array into AC power to the water pump. Soft start and Variable Frequency drive the pump.
- Second Generation of MPPT Function: Automatic /don’t need set MPPT voltage by LCD/LED. Efficiency is Max to 30% higher than the inverter who need to set the MPPT Voltage, more output water flow.
- One key for startup/Stop, support to adjust the output water flow also.
- Without battery, storing water is more efficient than storing electricity, reduce the cost of construction, operating and routine maintenance
- Protection: Over temperature, over input voltage, over input current, overrated load, input anti-reverse output short circuit, phase missing, phase unbalance, lighting, dry run protection by software/Well sensor, waterproof.
- water level detective of tank for overflow, Optional of pressure sensor for long distance between the well and tank.
- Mobile phone control or computer remote monitoring through RS485/GPRS/wifi/Ethernet(optional)
Hober 2.2 Kw Solar Water Pumping Inverter | Three-Phase | Technical Parameters
| Model | HSPH2200H | |
| DC Input | Rated Power(W) | 2200W |
| Min DC Input Voltage(V) | 460V | |
| Max DC Input Voltage(V) | 900V | |
| Rated Power of DC Input
Voltage Request(V) |
500-900V | |
| AC Output | Rated Power AC
Voltage(V) 3 phase |
380V/400V/415V |
| Rated Power AC
Current(A) |
7.2A | |
| Inverter efficiency | 99% | |
| Output frequency(Hz) | 0~50/60 | |
| Others | Water Level Sensor (Water of Well) | Yes |
| Water Level Sensor(Water of tank) | Yes | |
| AC Switcher | Optional | |
| GPRS Monitor &Controller | Optional | |
| Protection type | IP65 DC input Low/Over Voltage | |
| DC Input Anti-Reverse | ||
| Output overload, Output short circuit | ||
| Over temperature | ||
| Sensor of Water Empty/Full | ||
| Lighting | ||
| Operation Limit | Noise(1 m) | <50dB |
| Operation environment temperature | -10 to 60Degree | |
| Humidity | 15%-+95%RH | |
| Using altitude(m) | <4000Altitude higher than 1000m pls consider to use less loads | |
| Others | Prohibiting the installation location: direct sunlight, thicking dust, corrosive gas or oil mist, flammable. etc | |
| Adapted Pump | Support Pump’s HP | ≤3HP |
| Rated Power(W) | ≤2200W | |
| Rated Frequency(Hz) | 0~50/60 | |
| Rated Voltage | AC-380V-Three phase | |
