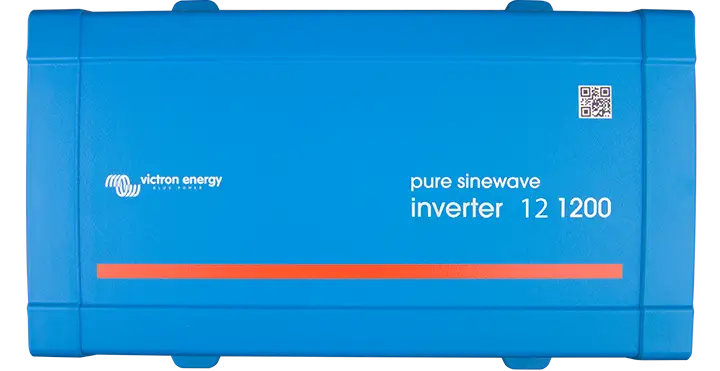

Victron Phoenix 1.2 kVA inverter VE.Direct delivers clean, reliable AC power from a 12 V DC battery source, making it ideal for off-grid, solar, recreational vehicle (RV), marine or backup power systems. With pure sine wave output, VE.Direct communication interface, and ECO mode for energy saving, this inverter handles both sensitive electronics and heavy loads with ease. Rugged construction, multiple protection features, and comprehensive configurability ensure dependable operation in varied environments.
Key Features
-
Pure sine wave output — safe for sensitive electronics (computers, TVs, medical devices)
-
1.2 kVA continuous (for non-linear loads) / 1.0 kW continuous (for linear loads)
-
High surge / peak power capability — supports start-up of motors, compressors, pumps
-
VE.Direct port — for digital monitoring, parameter adjustment, and remote diagnostics
-
ECO / standby mode — switches to low-consumption mode under light loads
-
Wide AC output voltage window (e.g. 210–245 V) and selectable frequency (50 Hz / 60 Hz)
-
Robust protections: over temperature, over load, short circuit, low battery, high battery
-
Low idle consumption (just a few watts)
-
Compact, durable design suitable for mobile or stationary installations
Technical Data Table
| Parameter | Specification |
|---|---|
| DC Input Voltage | 12 V |
| Continuous Output (linear loads) | ~1,000 W |
| Continuous Output (non-linear / peak handling) | ~1,200 VA |
| Surge / Peak Output | (2,200 W typical) |
| Output Voltage (nominal) | 230 V AC ±3 % |
| Output Frequency | 50 Hz ±0.1 % (selectable 60 Hz) |
| Efficiency (max) | High (typically > 90 %) |
| Idle / No-Load Consumption | < 10 W (or even < 1 W in ECO mode) |
| AC Output Voltage Range | 210 – 245 V |
| Protections | Overload, short circuit, over temperature, under/over voltage |
| Communication Interface | VE.Direct |
| Mode | ECO / Standby modes |
| Warranty | 5 years (typical for Victron Phoenix series) |
