Sale!
Deye

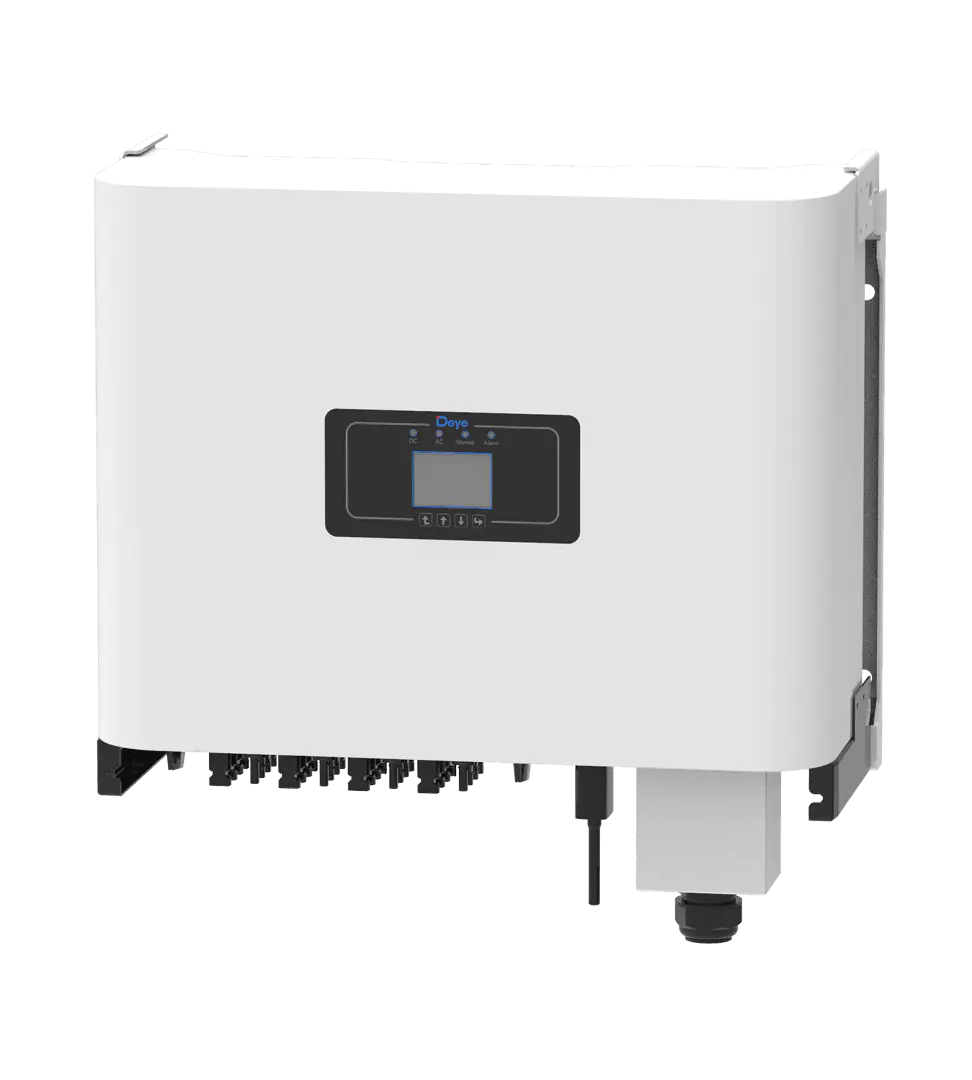

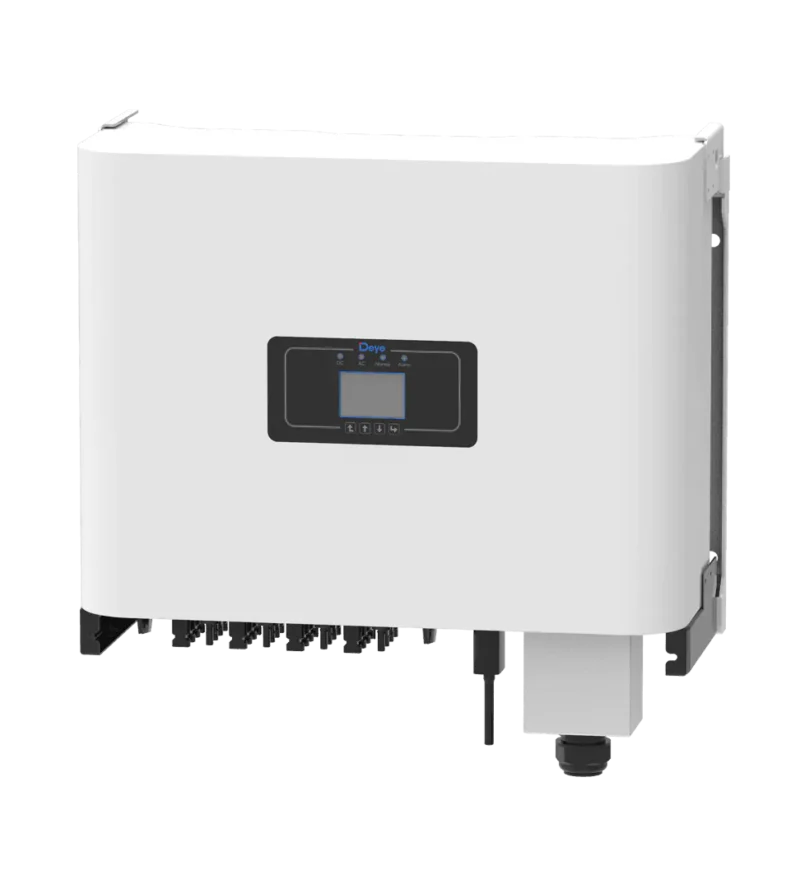

25 Kilowatts Deye Three Phase String Ongrid MPPT Solar Inverter

Original price was: KSh278,000.00.Current price is: KSh269,000.00.

Categories: ,

Description

Product Specifications

25 Kilowatts Three Phase String Ongrid Duo-MPPT Solar Inverter has the following features:

  • Model: SUN-25K-G02-LV
  • 127/220Vac and 60Hz, three phase system
  • Max 4 MPP tracker, Max. efficiency up to 98.7%
  • Zero export application, VSG application
  • String intelligent monitoring (optional)
  • Wide output voltage range
  • Type II DC/AC SPD
  • Anti-PID function (Optional)

Technical Specifications

Model SUN-20K-G02-LV SUN-25K-G02-LV SUN-30K-G02-LV
Input Side
Max. DC Input Power(kW) 26 32.5 39
Max. DC Input Voltage (V) 800
Start-up DC Input Voltage(V) 250
MPPT Operating Range(V) 200~700
Max. DC Input Current(A) 40+40 40+40+40 40+40+40+40
Max. Short Circuit Current (A) 60+60 60+60+60 60+60+60+60
Number of MPPT/Strings per MPPT 2/3 3/3 4/3
Output Side
Rated Output Power(kW) 20 25 30
Max. Active Power(kW) 22 27.5 33
Rated AC Grid Voltage(V) 127 / 220
AC Grid Voltage Range(V) 176Vac~242Vac(this may vary with grid standards)
Rated Grid Frequency(Hz) 60/50(Optional)
Operating Phase Three phase
Rated AC Grid Output Current(A) 52.5 65.6 78.7
Max. AC Output Current(A) 57.8 72.2 86.6
Output Power Factor 0.8 leading to 0.8 lagging
Grid Current THD <2%
DC Injection Current(mA) <0.5%
Grid Frequency Range 57~62
Efficiency
Max.Efficiency 98.7%
Euro Efficiency 98%
MPPT Efficiency >99%
Protection
DC Reverse-Polarity Protection Yes
AC Short Circuit Protection Yes
AC Output Overcurrent Protection Yes
Output Overvoltage Protection Yes
Insulation Resistance Protection Yes
Ground Fault Monitoring Yes
Islanding Protection Yes
Temperature Protection Yes
Integrated DC Switch Yes
Remote software upload Yes
Remote change of operating parameters Yes
Surge protection DC Type II / AC Type II
General Data
Size(mm)
362W×577H×215D
 647.5W×537H×303.5D
Weight(kg)
25.5
 44.5
Topology Transformerless
Internal Consumption <1W (Night)
Running Temperature -25~65℃
Ingress Protection IP65
Noise Emission(Typical) <45 dB
Cooling Concept Smart cooling
Max. Operating Altitude Without Derating 2000m
Designed Lifetime >20 years
Grid Connection Standard  CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11
Operating Surroundings Humidity 0-100%
Safety EMC/Standard      IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Features
DC Connection MC-4 mateable
AC Connection IP65 rated plug
Display LCD 1602
Interface RS485/RS232/Wifi/LAN

View 20 Kilowatts Three Phase String Ongrid Duo-MPPT Solar Inverter Manual

Buy Deye 25 Kilowatts Three Phase String Ongrid MPPT Solar Inverter online in Kenya at the best price from SolarShop Africa
