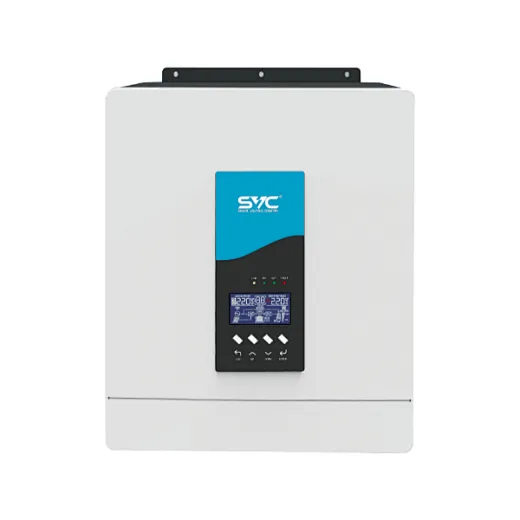

SVC Off Grid Solar Inverter Hybrid 1.2KVA/3.6KVA/6.2KVA/11KVA delivers reliable, off-grid and hybrid energy solutions for residential and commercial applications. Ranging from 1.2 kVA to 11 kVA, these inverters feature advanced MPPT charge controllers, pure sine wave output, and compatibility with various battery types. Whether you’re powering a small home or a larger installation, SVC Hybrid Inverters provide stable, efficient power conversion at an affordable price.
⭐ Key Features
-
Advanced MPPT solar charge controller for maximum efficiency
-
Pure sine wave output for sensitive electronics
-
Intelligent battery charging with wide compatibility (AGM, Lithium, Gel)
-
Built-in LCD display for real-time monitoring
-
Configurable AC input for grid or generator
-
Compact and wall-mountable design
-
Overload and short circuit protection
📊SVC Off Grid Solar Inverter Hybrid 1.2KVA/3.6KVA/6.2KVA/11KVA Technical Data:
| MODEL | VMH 1.2K | VMH 3.6 | VMH 6.2 | VMH 11 |
| Rated Capacity | 1200VA/1200W | 3600VA/3600W | 6200VA/6200W | 11000VA/11000W |
| Peak Efficiency (Battery Mode) |
≥90.5%
|
≥92.7% | ≥94% | ≥93% |
| AC INPUT | ||||
| Input Format | L+N+PE | |||
| Rated Input Voltage | 208/220/230/240VAC | |||
| Max AC Charging | 60A | 100A | 120A | 120A |
| Voltage Range | 170~264VAC(UPS MODE); 90~280VAC(For Home Appliances) | |||
| Frequency Range | 50Hz/60Hz(Auto Sensing) | |||
| OUTPUT | ||||
| Output Format | L+N+PE | |||
| Rated Output Voltage | 208/220/230/240VAC±5% | |||
| Output Frequency | 50/60Hz±0.1% | |||
| Waveform | Pure Sine Wave | |||
| Transfer Time | 10ms(For Personal Computers)，10ms(For Home Appliances) | |||
| Overload Capacity | Battery Mode: 1min@102%~110% Load 10s@110%~130%Load 3s@130%~150% Load 200ms@>150% Load |
|||
| BATTERY | ||||
| Type | Li-ion/Lead-acid | Li-ion/Lead-acid | Li-ion/Lead-acid | Li-ion/Lead-acid |
| Rated Voltage | 12 VDC | 24 VDC | 48 VDC | 48 VDC |
| Constant Charging Voltage (Can Be Set) | 14.1 VDC | 28.2 VDC | 56.4 VDC | 56.4 VDC |
| Float Charging Voltage (Can Be Set) | 13.5 VDC | 27 VDC | 54 VDC | 54 VDC |
| SOLAR CHARGER & AC CHARGER | ||||
| Solar Charger Type | MPPT | MPPT | MPPT | MPPT |
| PV Maximum Input Power | 1000W | 5000W | 9000W | 10000W |
| MPPT Tracking Range | 20~100 VDC | 40~450 VDC | 60~450 VDC | 60~500 VDC |
| Maximum PV Input Voltage | 125 VDC | 500 VDC | 500 VDC | 500 VDC |
| Maximum PV Input Current | 14 A | 18 A | 27 A | 18A*2 |
| Maximum PV Charging Current | 60 A | 100 A | 120 A | 160 A |
| Maximum Charging Current | 120 A | 100 A | 120 A | 160 A |
| COMMUNICATION INTERFACE | RS485 STANDARD | RS485/232/USB/Dry Contact | RS485/232/USB/Dry Contact | RS485/232/USB/Dry Contact |
| Expansion Slot Communication Interface | WIFI Optional | |||
| Environmental Parameters | ||||
| Operating Ambient Temperature | 0~40℃ | |||
| Operating Environment Humidity | 20%~95%（Non-Condensing） | |||
| Storage Temperature | -15~60℃ | |||
| Altitude | Altitude Should Not Exceed 1000m, Derating Above 1000m, Maximum 4000m, Refer to IEC62040 | |||
| Noise | ≤50db | |||
| PHYSICAL PARAMETERS | ||||
| D×W×H(mm) | 330 x 228 x 90 |
280 x 350 x136
|
310 x 420 x 136 | 540 x 415 x 122 |
| Weight (for Reference) | 3.2 | 6.6kg | 8kg | 15.5kg |
