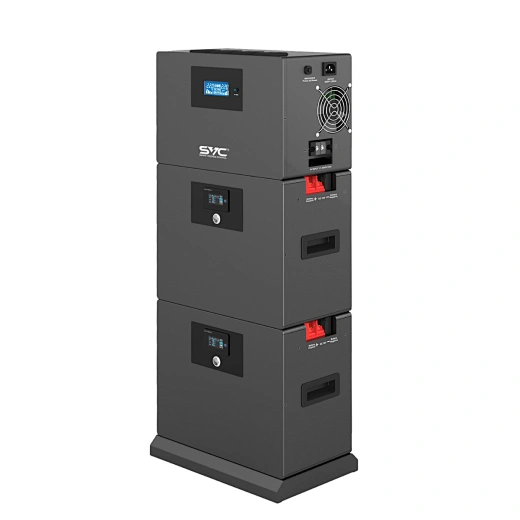

SVC 1.2kW All-in-One Solar Power Kit is a compact, plug-and-play off-grid system ideal for homes, small businesses, and mobile setups. This unit integrates a 1.2kW pure sine wave inverter, high-performance 1kW lithium battery with over 4000 life cycles, and a robust MPPT charge controller, delivering clean, reliable power in one durable package. Designed for high efficiency and easy installation, it’s your ideal energy backup or primary power source for rural or grid-scarce locations.
SVC 1.2kW All-in-One Solar Power Kit Key Features
- Light weight and compact size, easy and quick installation.
- Lower costs, safer and reliable
- High capacity and high power, can connect up to 4 batteries in series to have 5.12kwh (100Ah/pcs).
📊SVC 1.2kW All-in-One Solar Power Kit Technical Data:
| Inverter | RES 1200W |
|---|---|
| Rated Capacity | 1200VA/1200W |
| Input | |
| Rated Input Voltage | 220/230/240V AC |
| Voltage Range | 170~270V AC |
| Frequency Range | 50Hz/60Hz (Auto Sensing) |
| Output | |
| Rated Output Voltage | 220V ± 5% |
| Output Frequency | 50/60Hz ± 0.1% |
| Output Interface | AC × 3 |
| Waveform | Pure Sine Wave |
| Transfer Time | ≤ 10ms |
| Peak Power | 1200VA |
| Overload Capacity (Battery Mode) | ① LOAD < 100% ± 50W, output normal ② LOAD > 100% ± 50W, output shuts down after 55s ③ LOAD short-circuited, output shuts down immediately |
| Peak Efficiency | > 91% |
| Battery | |
| Rated Voltage | 12.8V DC |
| Constant Charging Voltage | 14.4V DC |
| Float Charging Voltage | 14.0V DC |
| MAX AC charging current | 20A |
| MPPT | |
| Solar Input Voltage | 17-80V DC |
| Solar charging current | 40A |
| Environmental Parameters | |
| Operating Ambient Temperature | 0℃ ~ 40℃ |
| Operating Environment Humidity | 20%~95% (Non-condensing) |
| Storage Temperature | -15℃ ~ 60℃ |
| Altitude | ≤ 2000m |
| Maximum Charging Current (AC+MPPT) | 60A |
| Battery | LFP12-100A |
| Rated Voltage | 12.8V |
| Nominal capacity @0.2c | 100Ah |
| Energy(wh) | 1280Vvh |
| Cell Cycle Life | >4000 Cycles @.05ccharge/Discharge at 100%D0D, End of Life 70% capacity |
| Months Self Discharge | >=3.5% per month at 25*C |
| Charge Voltage | 14.8 10.2V |
| Charge Mode (cc/cv) | At 0’C~50’C temperature, charged to 14.4V at a constant current of 0.5c, and then,changedcontinuously with constant voltage of 14.4V until the current was not more than 0.02C. |
| Max. continuous Charge Current | 100A |
| Max. Continuous Discharging Current |
100A |
| Discharge Cut-off Voltage | 8.8V |
| Maximum number of series continuous |
4Pcs (battery) |
| Communication | Bluetooth, LCD dispaly |
