SUNSYNK

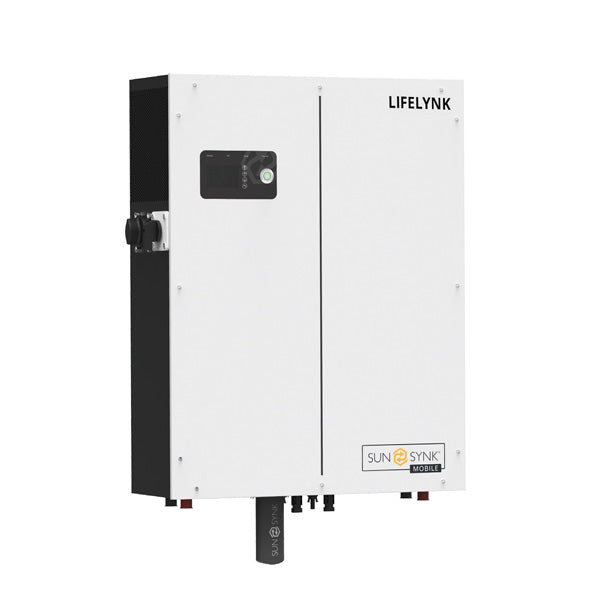

SUNSYNK LIFELYNK XL ALL-IN-ONE 48V INVERTER C/W 5.5kW AC OUTPUT & 5.22kWh LiFePO4 BATTERY

KSh315,000.00

  • Integrated All-in-One Setup: Combines a 5.5kW hybrid inverter, 5.22kWh LiFePO4 battery, and MPPT controller in a single wall-mount unit for quick, space-efficient installation.
  • Hybrid Functionality: Supports on-grid, off-grid, and UPS modes with automatic switching; maximizes self-consumption, grid export, and works with smart tariffs for cost savings.
  • Advanced Solar Optimization: Dual MPPT inputs with up to 6.8kW PV capacity and high efficiency for better energy capture in various conditions.
  • Remote Monitoring: Wi-Fi connectivity and Sunsynk Connect app for real-time data, scheduling, alerts, and remote updates.
SKU: 10-SUNS-0302 Categories: ,

Description

if you’re stepping up your home solar game, the SUNSYNK LIFELYNK XL hybrid inverter is a beefy all-in-one system that’s ideal for larger households or small businesses with bigger energy needs. It packs a 5.5kW hybrid inverter and a 5.22kWh LiFePO4 battery into one compact, wall-mounted unit, handling solar panels, grid power, and backups without needing a bunch of extra gear. Running on 48V with a single-phase 230V pure sine wave output, it optimizes your solar harvest, stores excess for later, and switches to battery mode in a flash during power cuts. Installation is a breeze with plug-and-play ports, and you get full remote control via the Sunsynk Connect app over Wi-Fi for monitoring energy flows and tweaking settings. You can expand by adding more batteries or paralleling up to six units, making it flexible for growing demands. With a 5-year warranty and tough build, it’s a reliable pick for cutting bills and going greener without the complexity.

SUNSYNK LIFELYNK XL hybrid inverter

SUNSYNK LIFELYNK XL hybrid inverter Key Features

  • Integrated All-in-One Setup: Combines a 5.5kW hybrid inverter, 5.22kWh LiFePO4 battery, and MPPT controller in a single wall-mount unit for quick, space-efficient installation.
  • Hybrid Functionality: Supports on-grid, off-grid, and UPS modes with automatic switching; maximizes self-consumption, grid export, and works with smart tariffs for cost savings.
  • Advanced Solar Optimization: Dual MPPT inputs with up to 6.8kW PV capacity and high efficiency for better energy capture in various conditions.
  • Remote Monitoring: Wi-Fi connectivity and Sunsynk Connect app for real-time data, scheduling, alerts, and remote updates.
  • Scalable Design: Add extra batteries or parallel up to 6 units; compatible with generators and external batteries like SUN-BATT-5.32.
  • Robust Battery: LiFePO4 tech with high cycle life, configurable charging up to 90A, and built-in protections for safety and longevity.

SUNSYNK LIFELYNK XL hybrid inverter Technical Data Table

Specification Value/Details
Inverter Type Hybrid All-in-One
Rated AC Output Power 5,500 W (5.5 kW)
Max. AC Output Power 5,500 VA
Nominal AC Voltage 230 V (single-phase, pure sine wave)
Nominal Frequency 50 Hz
Power Factor Range 0.8 leading to 0.8 lagging
Max. Bypass Current 40 A
Battery Type LiFePO4 (Lithium Ferro Phosphate)
Battery Capacity 5.22 kWh (5,223 Wh)
Nominal Battery Voltage 51.2 V
Battery Voltage Range 43.2 V – 57.6 V
Max. Charging Current 90 A (configurable)
Max. Discharging Current 120 A (configurable)
Battery Cycles 6,000 @ 80% DOD (estimated based on series)
Max. PV Input Power 6,800 W
Max. PV Input Voltage 500 V DC
MPPT Voltage Range 120 V – 450 V DC
Start-Up Voltage 150 V
Max. PV Input Current 16 A x 2
Number of MPPT Trackers 2
Max. Efficiency 97.6%
Euro Efficiency 97.0%
MPPT Efficiency 99.9%
Battery to Load Efficiency 94.0% (estimated based on series)
Protection Features Overload, over-temperature, short-circuit, over/under voltage, surge protection
Communication RS485, CAN, Wi-Fi (Sunsynk Connect app)
Cooling Fan-assisted
Noise Level Low (designed for quiet operation)
Operating Temperature Inverter: -25°C to +60°C; Battery Charge: 0°C to +45°C; Discharge: -20°C to +50°C (estimated based on series)
Enclosure Rating IP21 (indoor)
Parallel Capability Up to 6 units
Dimensions (H x W x D) 901 mm x 624 mm x 182 mm
Weight 82 kg
Warranty 5 years
Certifications Compliant with standard safety and EMC (e.g., IEC, G98)

Buy SUNSYNK LIFELYNK XL hybrid inverter online  in kenya at Solarshop Africa
