SUNSYNK

SUNSYNK Lifelynk L Series All-in-One Solar Generator | 3.6kW Output & 3.84kWh LiFePO4 Battery

KSh195,000.00

  • All-in-One Integrated Design: Packs a 3.6kW hybrid inverter, 3.84kWh LiFePO4 battery, and MPPT controller into a compact unit for simple wall-mount installation and minimal space use.
  • Versatile Hybrid Modes: Works on-grid, off-grid, or as UPS backup with seamless switching; boosts self-consumption, exports to grid, and supports smart tariffs like Octopus for bill savings.
  • Optimized Solar Input: Built-in MPPT with up to 4.5kW PV capacity, wide voltage range for efficient harvesting in different light conditions, and high overall efficiency.
  • Smart App Monitoring: Wi-Fi enabled with Sunsynk Connect app for remote viewing of energy flows, scheduling charge/discharge, alerts, and firmware updates.
  • Expandable Setup: Add up to 2 extra batteries per unit or parallel up to 2 more inverters for scaled capacity; compatible with generators and EV chargers.
SKU: 10-SUNS-0301 Categories: ,

Description

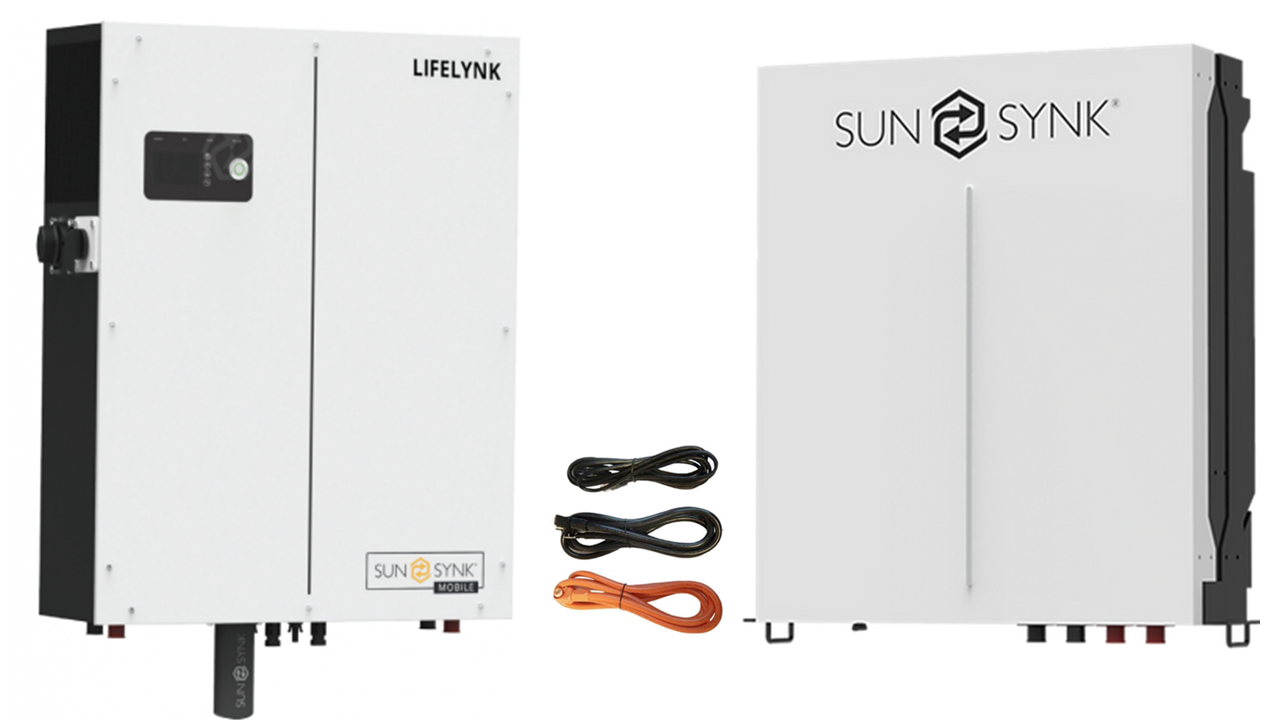

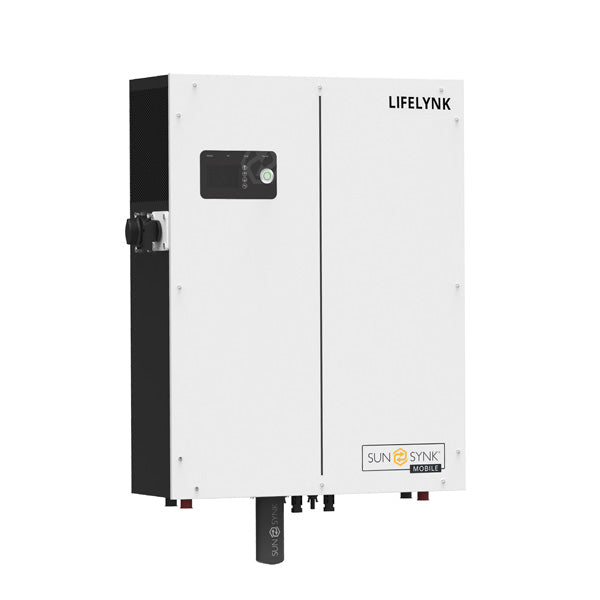

SUNSYNK LIFELYNK L hybrid inverter is basically the bigger sibling to the S model—a solid all-in-one energy storage unit that’s great for average homes or small businesses wanting to go solar without a ton of complicated wiring. It combines a 3.6kW hybrid inverter, a 3.84kWh LiFePO4 battery, and an MPPT charge controller into one wall-mounted box, handling solar input, grid tie-in, and backup power like a champ. Running on 48V with a single-phase 230V pure sine wave output, it lets you store solar energy, cut your grid dependence, and automatically kick in during outages for essential loads. Setup is plug-and-play with easy ports for everything, and you can monitor it all via the Sunsynk app over Wi-Fi for real-time stats and tweaks. Expandable with extra batteries or parallel units, it’s IP21 rated for indoor use, comes with a 5-year warranty, and is all about making green energy straightforward and budget-friendly.

SUNSYNK LIFELYNK L hybrid inverter

SUNSYNK LIFELYNK L hybrid inverter Key Features

  • All-in-One Integrated Design: Packs a 3.6kW hybrid inverter, 3.84kWh LiFePO4 battery, and MPPT controller into a compact unit for simple wall-mount installation and minimal space use.
  • Versatile Hybrid Modes: Works on-grid, off-grid, or as UPS backup with seamless switching; boosts self-consumption, exports to grid, and supports smart tariffs like Octopus for bill savings.
  • Optimized Solar Input: Built-in MPPT with up to 4.5kW PV capacity, wide voltage range for efficient harvesting in different light conditions, and high overall efficiency.
  • Smart App Monitoring: Wi-Fi enabled with Sunsynk Connect app for remote viewing of energy flows, scheduling charge/discharge, alerts, and firmware updates.
  • Expandable Setup: Add up to 2 extra batteries per unit or parallel up to 2 more inverters for scaled capacity; compatible with generators and EV chargers.
  • Durable Battery Tech: LiFePO4 with high cycle life (6000 at 80% DOD), built-in protections, and fan cooling for safe, reliable performance.

SUNSYNK LIFELYNK L hybrid inverter Technical Data Table

Specification Value/Details
Inverter Type Hybrid All-in-One
Rated AC Output Power 3,600 W (3.6 kW)
Max. AC Output Power 3,600 VA
Nominal AC Voltage 230 V (single-phase, pure sine wave)
Nominal Frequency 50 Hz
Power Factor Range 0.8 leading to 0.8 lagging
Max. Bypass Current 32 A
Battery Type LiFePO4 (Lithium Ferro Phosphate)
Battery Capacity 3.84 kWh
Nominal Battery Voltage 51.2 V
Battery Voltage Range 40 V – 60 V
Max. Charging Current 60 A (configurable)
Max. Discharging Current 80 A
Battery Cycles 6,000 @ 80% DOD
Max. PV Input Power 4,500 W
Max. PV Input Voltage 500 V DC
MPPT Voltage Range 120 V – 450 V DC
Start-Up Voltage 150 V
Max. PV Input Current 18 A
Number of MPPT Trackers 1
Max. Efficiency 97.6%
Euro Efficiency 97.0%
MPPT Efficiency 99.9%
Battery to Load Efficiency 94.0%
Protection Features Overload, over-temperature, short-circuit, over/under voltage, surge protection
Communication RS485, CAN, Wi-Fi (Sunsynk Connect app)
Cooling Fan-assisted
Noise Level Low (designed for quiet operation)
Operating Temperature Inverter: -25°C to +60°C; Battery Charge: 0°C to +45°C; Discharge: -20°C to +50°C
Enclosure Rating IP21 (indoor)
Parallel Capability Up to 2 additional units
Dimensions (H x W x D) 700.6 mm x 534.6 mm x 182.2 mm
Weight 57.4 kg
Warranty 5 years
Certifications Compliant with standard safety and EMC (e.g., IEC, G98)



Buy SUNSYNK LIFELYNK L hybrid inverter online  in kenya at Solarshop Africa
