SUNSYNK

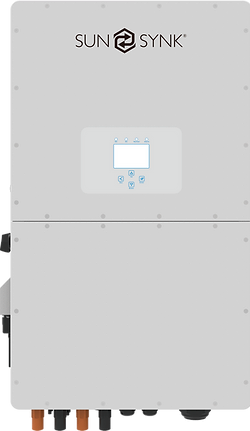

SUNSYNK 50KW HV THREE PHASE HYBRID INVERTER

KSh695,000.00

  • Multi-Source Power Management: Seamlessly integrates solar PV, high-voltage batteries, grid, generators, and wind for optimized self-consumption, grid export, backup power, and peak shaving—can cut energy costs significantly.
  • Quad MPPT Trackers: Four independent MPPTs with a 150-850V range (full load 450-850V), handling up to 65kW PV input and high DC/AC ratios for top performance in varied conditions (max efficiency 97.6%).
  • High-Voltage Battery Compatibility: Supports Li-Ion batteries from 160-800V with dual inputs, 50A+50A max charging/discharging, and smart BMS adaptation for fast, efficient energy storage and release.
  • Scalable System Design: Parallel up to 10 units for massive three-phase setups; AC/DC coupling for easy retrofits; auto-restart after outages; peak power 1.5x rated for 10 seconds.
  • Advanced Monitoring and Controls: Wi-Fi/GSM connectivity, intuitive app for real-time power flow tracking, programmable timers (6 periods for charging/discharging), and remote firmware updates.
SKU: 10-SUNS-0201 Categories: ,

Description

SUNSYNK 50KW HV hybrid inverter — this thing is a powerhouse for serious commercial or large-scale residential setups where you need to handle big energy demands. It’s a high-voltage beast that juggles power from solar panels, batteries, the grid, generators, and even wind turbines if you’ve got ’em. Running on a three-phase 230V/400V pure sine wave output, it works flawlessly in on-grid, off-grid, or hybrid modes, helping you slash electricity costs, store excess energy, and keep things running smooth during blackouts with automatic failover. With four MPPT trackers to max out your solar input (up to 65kW), dual battery inputs for quick 50A+50A charging/discharging, and smart remote monitoring through Wi-Fi or an app, it’s all about efficiency and control. You can parallel multiple units for even bigger systems, and its rugged IP65 design means it can handle tough environments indoors or out. If you’re aiming for energy independence in a factory, office, or big home, this inverter delivers reliability, scalability, and some serious savings on your power bill.

3 Phase 50kw Hybrid Inverter | Sunsynk

Key Features

  • Multi-Source Power Management: Seamlessly integrates solar PV, high-voltage batteries, grid, generators, and wind for optimized self-consumption, grid export, backup power, and peak shaving—can cut energy costs significantly.
  • Quad MPPT Trackers: Four independent MPPTs with a 150-850V range (full load 450-850V), handling up to 65kW PV input and high DC/AC ratios for top performance in varied conditions (max efficiency 97.6%).
  • High-Voltage Battery Compatibility: Supports Li-Ion batteries from 160-800V with dual inputs, 50A+50A max charging/discharging, and smart BMS adaptation for fast, efficient energy storage and release.
  • Scalable System Design: Parallel up to 10 units for massive three-phase setups; AC/DC coupling for easy retrofits; auto-restart after outages; peak power 1.5x rated for 10 seconds.
  • Advanced Monitoring and Controls: Wi-Fi/GSM connectivity, intuitive app for real-time power flow tracking, programmable timers (6 periods for charging/discharging), and remote firmware updates.
  • Durable and Safe Build: IP65-rated for dust/water resistance, wide operating temp (-40°C to 60°C with derating >45°C), integrated protections like anti-islanding, lightning, and overcurrent; quiet intelligent cooling (<65 dB).

Technical Data Table

Specification Value/Details
Rated AC Output Power 50,000 W (50 kW)
Max. AC Output Power 55,000 W
Peak Power (Off-Grid) 1.5 times rated power for 10 seconds
AC Output Rated Current 75.8 A / 72.5 A
Max. AC Current 83.3 A
Max. Continuous AC Passthrough 200 A
Power Factor 0.8 leading to 0.8 lagging
Output Frequency/Voltage 50/60 Hz; 3L/N/PE 220/380 V, 230/400 V AC
Grid Type Three Phase
Battery Type Li-Ion
Battery Voltage Range 160 V – 800 V
Max. Charging/Discharging Current 50 A + 50 A
Number of Battery Inputs 2
Charging Strategy Self-adaption to BMS
Max. DC Input Power (PV) 65,000 W
Max. DC Input Voltage 1,000 V
Start-Up Voltage 180 V
MPPT Voltage Range 150 V – 850 V
Full Load DC Voltage Range 450 V – 850 V
Rated DC Input Voltage 600 V
PV Input Current 36 A + 36 A + 36 A + 36 A
Max. PV Isc 55 A + 55 A + 55 A + 55 A
Number of MPPT Trackers 4
Number of Strings per MPPT 2 + 2 + 2 + 2
Max. Efficiency 97.60%
Euro Efficiency 97.00%
MPPT Efficiency >99%
Protection Features PV lightning, anti-islanding, reverse polarity, insulation detection, residual current, overcurrent, short circuit, overvoltage (DC Type II / AC Type III), battery fuses
Operating Temperature -40°C to 60°C (>45°C derating)
Cooling Intelligent air cooling
Noise Level ≤65 dB
Communication RS485, CAN for BMS; Wi-Fi/GSM optional
Dimensions (W x H x D) 527 mm x 894 mm x 294 mm
Weight 75 kg
Enclosure Rating IP65
Installation Wall-mounted
Warranty 5 years
Certifications VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0-21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150; EMC/Safety: IEC62109-1/-2, EN61000 series
