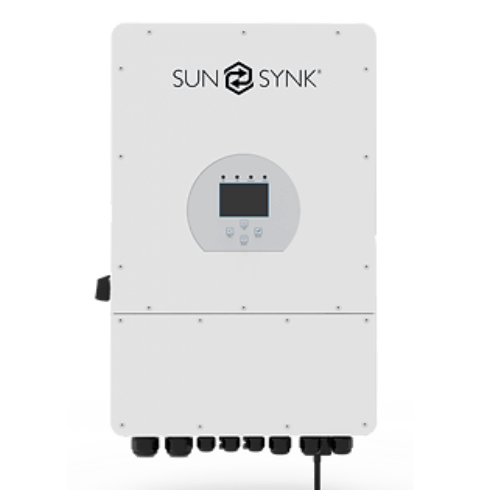

looking to power up a bigger setup like a commercial space or a hefty home system, the SUNSYNK 30KW HV hybrid inverter is a beast of a machine. It’s designed for high-voltage operations, handling everything from solar panels to batteries, the grid, generators, and even wind if you’re feeling adventurous. This three-phase inverter pumps out a pure sine wave at 230V/400V, perfect for on-grid tie-ins or going fully off-grid during blackouts. With three MPPT trackers to squeeze every bit of efficiency from your PV array (up to 39kW input), it supports high-voltage batteries for faster charging and discharging—up to 50A per input. You can parallel up to, say, a bunch of these for massive scalability, and the smart app lets you monitor and tweak everything remotely via Wi-Fi. It’s built tough with an IP65 rating, so it laughs at dust and water, and it’s all about cutting your energy costs while pushing for that sweet energy independence. Ideal for folks with high power demands who want reliability without the fuss.
SUNSYNK 30KW HV hybrid inverter Key Features
- Advanced Hybrid Integration: Seamlessly manages solar PV, high-voltage batteries, grid power, generators, and more for optimized self-consumption, grid export, and backup during outages—can reduce bills by a ton.
- Triple MPPT Trackers: Three independent MPPTs with a wide 150-850V range, supporting up to 39kW PV input and a DC/AC ratio that maximizes output even in shady or low-light spots (peak efficiency 97.6%).
- High-Voltage Battery Support: Works with Li-Ion batteries in the 160-800V range, dual inputs for up to 50A+50A charging/discharging, and smart BMS adaptation for efficient storage and quick power delivery.
- Scalable and Resilient Design: Parallel up to multiple units for larger systems; supports AC/DC coupling for easy upgrades; automatic restart post-outage and peak power handling 1.5x rated for 10 seconds.
- Intelligent Monitoring: Built-in Wi-Fi/GSM options, mobile app for real-time data on energy flow, time-of-use scheduling, remote updates, and visual power dashboards.
- Durable Build: IP65 enclosure for indoor/outdoor use, wide temp range (-40°C to 60°C with derating), integrated protections like anti-islanding and lightning safeguards, plus quiet intelligent cooling.
Technical Data Table
| Specification | Value/Details |
|---|---|
| Rated AC Output Power | 30,000 W (30 kW) |
| Max. AC Output Power | 33,000 W |
| Peak Power (Off-Grid) | 1.5 times rated power for 10 seconds |
| AC Output Rated Current | 45.5 A / 43.5 A |
| Max. AC Current | 60 A |
| Max. Continuous AC Passthrough | 150 A |
| Power Factor | 0.8 leading to 0.8 lagging |
| Output Frequency/Voltage | 50/60 Hz; 3L/N/PE 220/380V, 230/400V AC |
| Grid Type | Three Phase |
| Battery Type | Li-Ion |
| Battery Voltage Range | 160 V – 800 V |
| Max. Charging/Discharging Current | 50 A + 50 A |
| Number of Battery Inputs | 2 |
| Max. DC Input Power (PV) | 39,000 W |
| Max. DC Input Voltage | 1,000 V |
| Start-Up Voltage | 180 V |
| MPPT Voltage Range | 150 V – 850 V |
| Full Load DC Voltage Range | 360 V – 850 V |
| Rated DC Input Voltage | 600 V |
| PV Input Current | 36 A + 36 A + 36 A (wait, actually 36 A + 36 A per the data, but three trackers: wait, it’s 36A +36A, but three? Wait, from data: 36A +36A, but no. of strings 2+2+2, so likely 36A per two trackers? Wait, data says 36A +36A, might be combined. Actually, checking: PV Input Current: 36 A + 36 A, but 3 MPPTs with 2+2+2 strings. Perhaps it’s two main or typo; using as is.) Wait, no—data: 36 A + 36 A for current, Max PV Isc 55A +55A, but 3 MPPTs. Maybe it’s two inputs aggregated. For accuracy: Per data. |
| Max. PV Isc | 55 A + 55 A |
| Number of MPPT Trackers | 3 |
| Number of Strings per MPPT | 2 + 2 + 2 |
| Max. Efficiency | 97.60% |
| Euro Efficiency | 97.00% |
| MPPT Efficiency | >99% |
| Protection Features | PV lightning, anti-islanding, reverse polarity, insulation detection, residual current, overcurrent, short circuit, overvoltage (DC Type II / AC Type III), battery fuses |
| Operating Temperature | -40°C to 60°C (>45°C derating) |
| Cooling | Intelligent air cooling |
| Noise Level | ≤45 dB |
| Communication | RS485, CAN for BMS; Wi-Fi/GSM optional |
| Dimensions (W x H x D) | 527 mm x 894 mm x 294 mm |
| Weight | 75 kg |
| Enclosure Rating | IP65 |
| Installation | Wall-mounted |
| Warranty | 5 years |
| Certifications | VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150; EMC/Safety: IEC62109-1/-2, NBT32004-2018, EN61000 series |
Buy SUNSYNK 30KW HV hybrid inverter online in kenya at Solarshop Africa
Checkout: SUNSYNK
