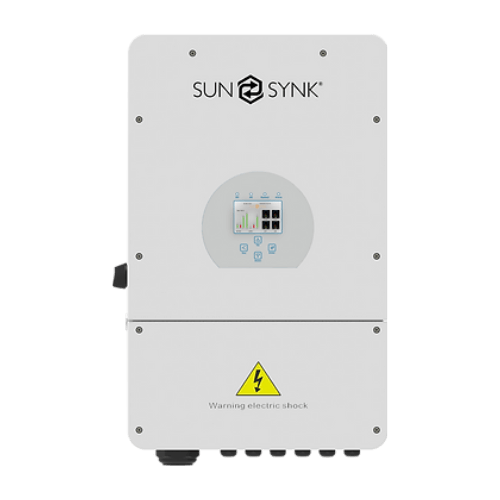

SUNSYNK 16 kW 48 V Single Phase Hybrid Inverter gives you high-capacity solar plus battery and grid integration in one unit. You get up to 16 kW output with a low-voltage (48 V) battery system. It supports multiple energy sources: solar panels, grid power, battery storage and generator. The design suits homes or small commercial sites in Kenya where you need backup, self-consumption, or grid-tie with battery storage. The unit includes WiFi monitoring, IP65 protection and a 5-year warranty (confirm local terms).
Key Features
• 16 000 W rated AC output power.
• Works with 48 V nominal battery bank (battery voltage range approx. 40-60 V).
• Up to 18 000 W of PV (solar) input power, with 3 MPPTs for flexible string design.
• Wide PV voltage window (start-up ~150 V; range ~250-450 V DC; max input ~450-500 V DC).
• High efficiency (max ~97.6 %) and MPPT efficiency ~99.9 %.
• Multiple operating modes: on-grid, off-grid, hybrid, UPS, AC-couple and DC-couple.
• Built-in WiFi for remote monitoring & control.
• IP65 rated enclosure for indoor or sheltered outdoor installation.
• Parallel up to 3 units for single phase or up to 15 units for three-phase configuration.
• Suitable for both lead-acid and lithium-ion battery systems (with BMS integration).
Technical Data Table
| Parameter | Specification |
|---|---|
| Rated AC Output Power | 16 000 W (single phase) |
| Max On-Grid AC Power | 16 000 W |
| Battery Nominal Input Voltage | 48 V nominal (range approx 40-60 V) |
| Max Battery Charge/Discharge Current | ~275-300 A |
| Max PV Input Power | ~18 000 W |
| MPPT Input Voltage Range | ~250-450 V DC (start-up ~150 V) |
| Number of MPPTs | 3 |
| Max Efficiency | ~97.6 % |
| Protection Rating | IP65 |
| Operating Temperature Range | approx -25 °C to +55 °C |
| Dimensions (W×H×D) | ~422 × 702 × 281 mm |
| Weight | ~34.5 kg |
| Warranty | 5 years (local terms apply) |
