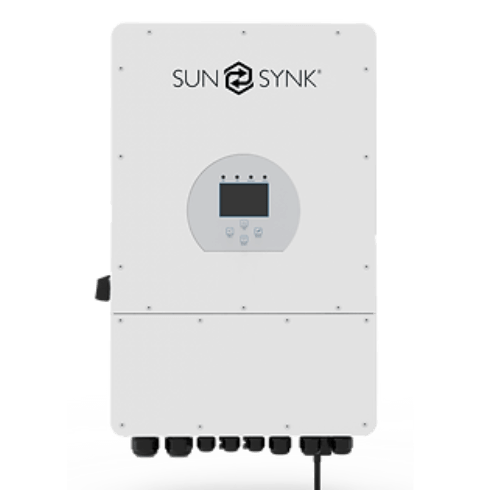

SUNSYNK 12KW Three phase 48V hybrid inverter is a cutting-edge, all-in-one power management solution designed for residential, commercial, and industrial applications. This robust inverter seamlessly integrates solar PV arrays, battery storage, grid power, generators, and even wind turbines to deliver reliable, efficient energy. With its three-phase 230V/400V pure sine wave output, it supports both on-grid and off-grid operations, enabling users to maximize self-consumption, reduce electricity bills by up to 80%, and achieve energy independence. Featuring dual MPPT trackers for optimized solar harvesting, high-efficiency energy storage (up to 240A charging/discharging), and intuitive remote monitoring via Wi-Fi or app, the SUNSYNK inverter ensures seamless power flow, automatic failover during outages, and future-proof scalability for up to 16 units in parallel. Built with an IP65-rated enclosure for indoor/outdoor durability, it’s the ideal choice for high-demand setups seeking sustainability and cost savings.
SUNSYNK 12KW Three phase 48V hybrid inverter Key Features
- Hybrid Power Management: Intelligently balances inputs from solar, grid, generators, and wind turbines for optimal energy utilization, supporting self-consumption, grid feed-in, and off-grid backup.
- Dual MPPT Trackers: Two independent MPPTs with a wide 200-650V input range and DC/AC ratio up to 1.3, ideal for bifacial PV modules and maximizing yields even in low-light conditions (max efficiency 97.6%).
- High-Capacity Battery Integration: Compatible with 48V low-voltage lithium-ion (e.g., Pylontech) and lead-acid batteries; supports up to 240A max charging/discharging for rapid energy storage and release.
- Scalable and Flexible Operation: Up to 16 inverters in parallel for grid-tied or off-grid systems; AC/DC coupling for retrofitting existing solar setups; auto-restart after grid recovery.
- Smart Monitoring and Control: Built-in Wi-Fi dongle and mobile app for real-time visualization of power flow, load shifting, time-of-use optimization, and remote firmware updates.
- Robust Design: IP65 weatherproof enclosure, operating temperatures from -45°C to 60°C, and essential/non-essential load outputs for prioritized power during outages.
Technical Data Table
| Specification | Value/Details |
|---|---|
| Rated Power | 12,000 W (12 kW) |
| Maximum AC Output Power (1s) | 24,000 W |
| DC Voltage | 48 V DC (40-60 V range) |
| Maximum Charging/Discharging Current | 240 A |
| Number of MPPT Trackers | 2 (Dual MPPT) |
| Maximum PV Input Power | 15,600 W |
| MPPT Voltage Range | 200-650 V DC |
| Maximum PV Input Voltage | 550 V DC |
| Maximum PV Input Current | 26 A + 13 A (per MPPT) |
| Number of Strings per MPPT | 2 / 2 |
| Maximum Efficiency | 97.6% |
| AC Output | Three-phase 230 V / 400 V, pure sine wave; Max pass-through 45 A |
| Battery Compatibility | 48 V low-voltage lithium-ion (e.g., Pylontech US3000C, US2000C, UP5000) and lead-acid |
| Parallel Capability | Up to 16 units |
| Enclosure Rating | IP65 (indoor/outdoor) |
| Operating Temperature | -45°C to 60°C (>45°C derating) |
| Protection Level | Class I |
| Dimensions (L x W x H) | 673 mm x 462 mm x 265 mm |
| Weight | Approximately 45 kg (varies by model) |
| Connectivity | Wi-Fi dongle included; RS485, CAN for BMS; GSM optional |
| Certifications | NRS approved (City of Cape Town); CE, IEC compliant |
Buy SUNSYNK 12KW Three phase 48V hybrid inverter online in kenya at Solarshop Africa
