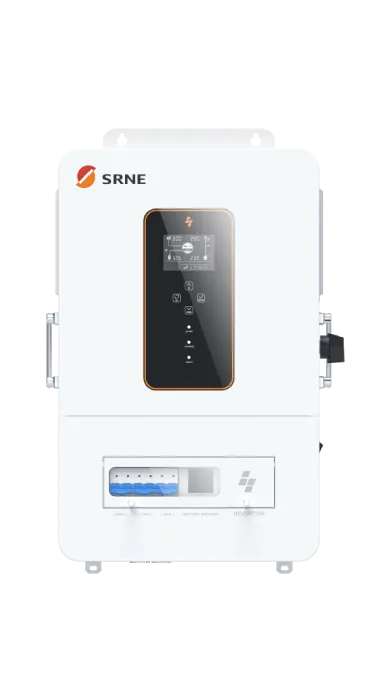

SRNE 6 kW Hybrid Solar Inverter | 48 V HYP4860S100‑H is a robust, all‑in‑one energy solution tailored for medium to large solar setups. It combines dual-MPPT solar charge control, hybrid inverter capabilities, and IP65 durability in a compact design. With a powerful 6 kW output and 100 A charging capacity, it delivers reliable, clean, and uninterrupted power optimized for off‑grid homes, farms, and commercial systems. Its parallel scalability and multi-mode charging make it ideal for both current and future energy needs.
🔧SRNE 6 kW hybrid solar inverter | 48 V HYP4860S100‑H Key Features
-
6 kW Continuous + 12 kVA Peak Output – Handles high-powered appliances like motors, pumps, fridges, and air conditioners .
-
Dual MPPT (500 V DC each) – Enables efficient solar input with high tracking accuracy and flexible panel configurations.
-
100 A Hybrid Charging – Fast combined PV/grid/generator charging ensures quick replenishment of storage systems.
-
IP65-rated Rugged Enclosure – Fully dust- and waterproof for indoor or outdoor installations.
-
Multiple Charging Modes – Solar‑only, grid/generator priority, solar priority, and hybrid modes offer flexible energy management.
-
Parallel Ready (Up to 6 Units) – Scalable design supports power growth up to 36 kW.
-
Pure Sine-Wave Output – Clean, stable AC power for sensitive electronics.
-
Comprehensive Protections & Cooling – Overload, short circuit, reverse polarity guard; fan-cooled for reliable performance.
-
Remote Monitoring Support – RS485/CAN/USB ports with optional Wi‑Fi/GPRS modules.
📊 SRNE 6 kW hybrid solar inverter | 48 V HYP4860S100‑H Technical Data
Specification | Details |
---|---|
Model | SRNE HYP4860S100‑H (6 kW / 48 V system) |
Rated Output | 6 000 W continuous; 12 000 VA peak |
Battery Voltage | 48 V DC |
Solar Input | Dual MPPT, up to 500 V DC each |
Hybrid Charging Current | 100 A combined (PV + grid/generator) |
Protection Rating | IP65 – dustproof & waterproof enclosure |
Operating Temperature | −25 °C to 60 °C |
Parallel Capability | Up to 6 units (max 36 kW) |
Waveform | Pure sine wave |
Transfer Time | ~10 ms for seamless backup switching |
Protections | Over-/under-voltage, short-circuit, reverse polarity, thermal, surge |
Cooling | Intelligent fan-cooled |
Weight | ~19–20 kg |
Dimensions | Approx. 556 × 345 × 182 mm |
Battery Compatibility | Lead-acid / Li-ion (user-defined settings supported) |
