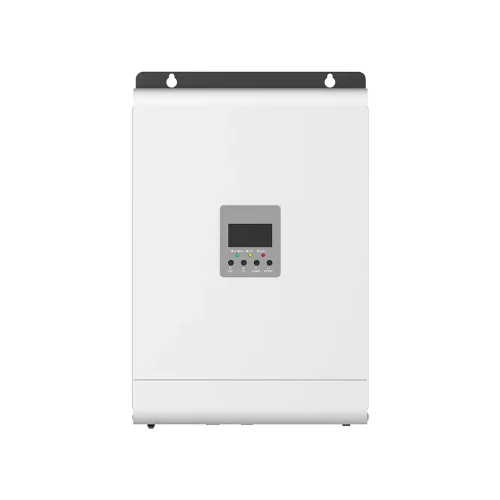

SOSEN 3.6 kW Hybrid Offgrid Solar Inverter delivers reliable power for residential and small commercial solar systems. It supports both solar and battery input, ensuring stable energy supply even without grid access. The inverter provides high conversion efficiency, user-friendly operation, and robust protection features for long-term performance.
Key Features
-
Rated power output: 3.6 kW for offgrid solar systems
-
Pure sine wave output for stable and safe power supply
-
Compatible with lithium and lead-acid batteries
-
Built-in MPPT solar charge controller for higher efficiency
-
Supports solar, battery, and generator input
-
LCD display with real-time monitoring and settings
-
Multiple protection features: overload, short-circuit, and over-temperature
-
Compact design for easy installation
Technical Data
| Specification | Details |
|---|---|
| Model | SSA-HL3K6-P1EU |
| Rated Power | 3600 W (3.6 kW) |
| Output Voltage | 230 V AC, Single Phase |
| Output Frequency | 50/60 Hz |
| Output Waveform | Pure Sine Wave |
| Solar Charge Controller | MPPT, Efficiency ≥ 98% |
| Battery Voltage | 48 V DC |
| Max PV Input Voltage | 450 V DC |
| Max Charging Current | 80 A |
| Communication Interface | RS485 / WiFi (optional) |
| Operating Temperature | -10°C to 50°C |
| Protection Features | Overload, Short-Circuit, Over-Temperature, Battery Reverse Polarity |
| Dimensions (L x W x H) | 400 x 300 x 120 mm |
| Weight | Approx. 12 kg |
