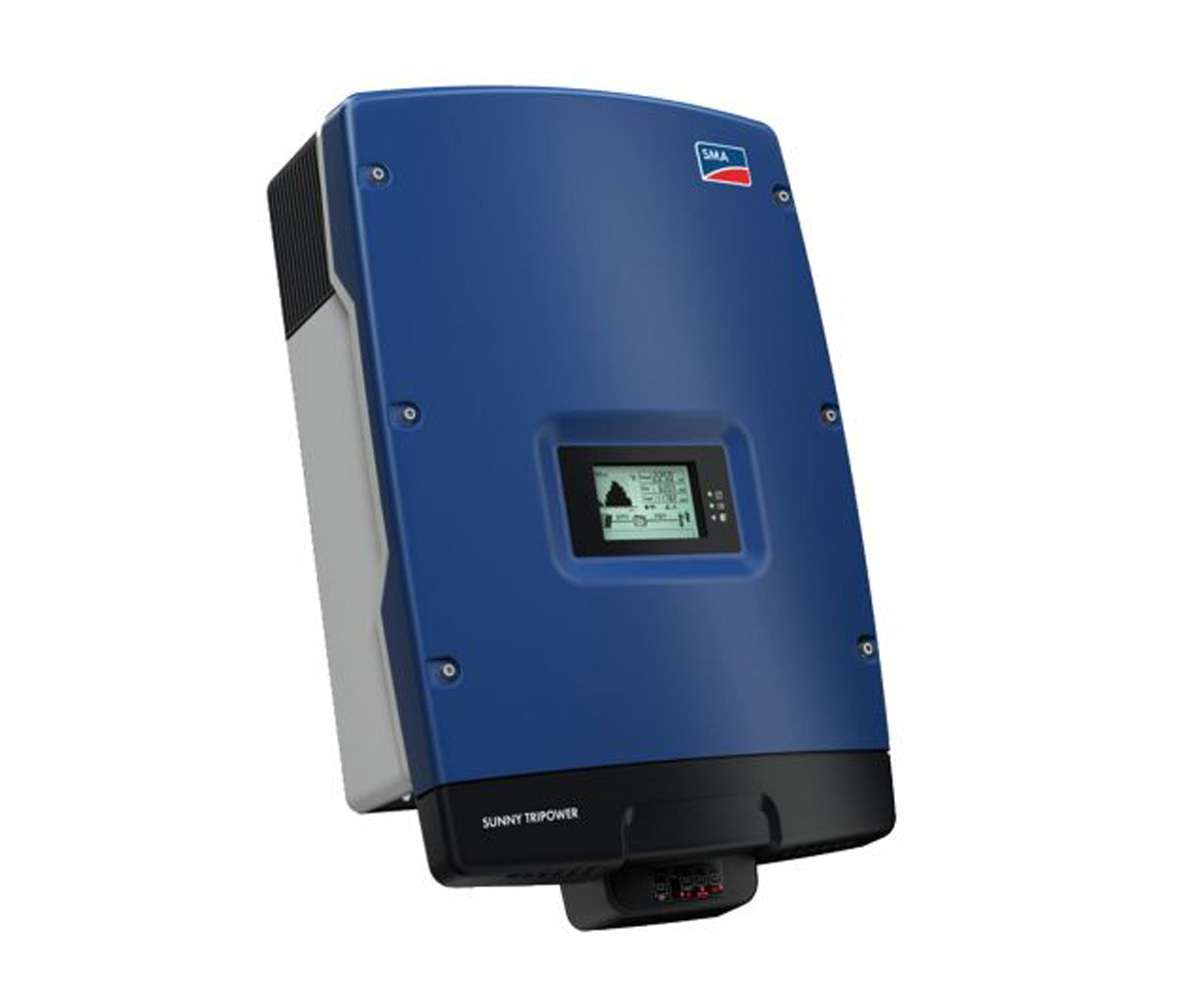

SMA Sunny Tripower 8000TL

SMA Sunny Tripower 8000TL

The Three-Phase Inverter – Not Only for Your Home…

…but also perfectly suited to the design of the traditional residential PV system up to the higher power outage range. After all, with the addition of the new 10 kVA and 12 kVA versions to the portfolio, the Sunny Tripower product range covers a broad spectrum of applications. Users benefit from numerous tried-and-tested product features. Highly flexible with its proven Optiflex technology and asymmetrical multistring, it delivers maximum yields with a top efficiency rating and OptiTrac Global Peak.

SMA Sunny Tripower 8000TL Solar inverter is flexible

In addition to Bluetooth communication, it also comes standard with a direct Sunny Portal connection via SMA Webconnect. Other standard features include integrated grid management functions, reactive power supply and suitability for operation with a 30 mA RCD. In summary, when it comes to system design in the 5 to 12 kW power classes, the Sunny Tripower is the optimum product solution – for applications ranging from use in your own home and larger PV rooftop systems to implementation of smaller-scale PV farms.

Flexibility

DC input voltage up to 1,000 V
Integrated network management functions
Reactive power injection
Installation design adapted to each module with Optiflex
Communicative

SMA Webconnect Communication with Sunny Portal
Communication ®Bluetooth
Easy configuration by country
Multifunction relay as standard
Simple

Three-phase injection
Wiring connection without tools
SUNCLIX DC connection system
Integrated DC power switch-disconnector ESS
Simple wall mounting

Specifications
Sunny Tripower
8000TL
Input (CC)
Max power of CC (cos φ = 1) 8200 W
Input voltage max. 1000 V
MPP voltage range / rated input voltage 330 V – 800 V / 580 V
Input voltage min. / start 150 V / 188 V
Max current of entry (entry A / B) 15 A / 10 A
Max current input per string (input A / B) 15 A / 10 A
Number of independent inputs / strings per maximum power point input (MPP) 2 / A: 2; B: 2

Output (CA)
Rated power (230 V, 50 Hz) 8000 W
Apparent power of AC max. 8000 VA
Nominal voltage of AC 3 / N / PE; 220/380 V
3 / N / PE; 230/400 V
3 / N / PE; 240/415 V
Nominal voltage range of AC 160 V – 280 V
AC mains frequency / 50 Hz range, 60 Hz / -5 Hz … +5 Hz
Rated frequency / voltage of the network 50 Hz / 230 V
Max. Output current 11.6 A
Power factor assigned to power 1
Adjustable phase shift factor 0.8 inductive … 0.8 capacitive
Injection / connection phases 3/3

performance
Max performance / European 98% / 97.6%

Protection devices
Disconnection point on the input side As standard
Earthing monitoring / network Serial / Standard
DC reverse bias protection / AC short circuit resistance / with galvanic separation Serial / Serial / –
Residual current monitoring unit sensitive to universal current Standard
Protection class (according to IEC 62103) / overvoltage category (according to IEC 60664-1) I / III

General data
Dimensions (width / height / depth) 470/730/240 mm
(18.5 / 28.7 / 9.5 in)
Weight 37 kg / 81.6 lb
Service temperature range -25 ° C … +60 ° C /
-13 ° F … +140 ° F
Noise emissions (typical) 40 dB (A)
Self-consumption (night) 1 W
Topology / cooling system Without transformer / OptiCool
Type of protection (according to IEC 60529) IP65
Climate class (according to IEC 60721-3-4) 4K4H
Maximum value allowed for relative humidity (without condensation) 100%

characteristics
SUNCLIX DC / AC connection / Spring-loaded connection terminal
Graphic Screen
Interface: RS485 / Bluetooth / Webconnect – / Serial / Standard
Multifunction relay / Power Control Module Standard / Optional
