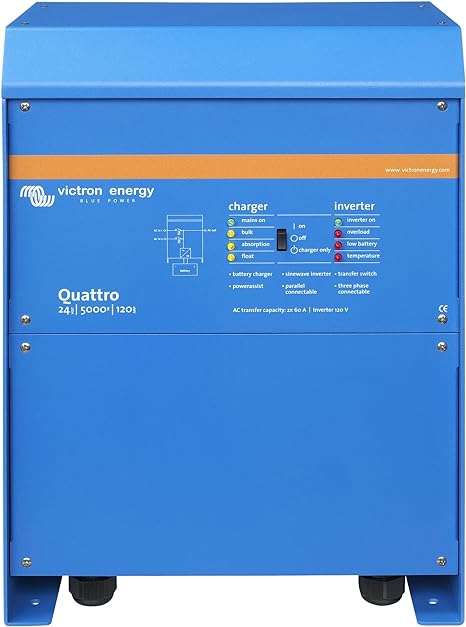

VICTRON QUATTRO-II 5kVA 24V INVERTER CHARGER

Original price was: KSh265,900.00.Current price is: KSh254,500.00.

• Dual AC inputs that auto switch to the active source
• PowerAssist function prevents overload of shore power or generator
• Two AC outputs: one with no-break backup, one for non-critical loads
• True sine wave inverter output for sensitive electronics
• Parallel operation (up to 6 units) or three-phase/split-phase for higher power needs

SKU: 10-VIC-0301 Categories: ,

Description

victron quattro-ii 5kva 24v inverter charger supplies reliable 230 VAC power from a 24 V DC battery bank. You get clean sine-wave power, fast switching between inputs, and battery charging when AC input is present. It handles generator or grid inputs automatically. You can scale by using several units in parallel or in three-phase. It supports lead-acid and lithium battery systems.

Key Features
• Dual AC inputs that auto switch to the active source
• PowerAssist function prevents overload of shore power or generator
• Two AC outputs: one with no-break backup, one for non-critical loads
• True sine wave inverter output for sensitive electronics
• Parallel operation (up to 6 units) or three-phase/split-phase for higher power needs

Technical Data Table

Specification Detail
Nominal DC Input Voltage 24 V
Continuous Output Power (25 °C) 5 000 VA (≈ 4 000 W)
Max Output Power at Higher Temp (40 °C) ≈ 3 700 W
Peak / Surge Power ≈ 9 000 W
Efficiency (Max) ~ 95-96 %
AC Input Voltage Range 187-265 VAC, 45-65 Hz
Charger Max Current 120 A
Transfer Switch Rating 50 A
Output Voltage / Frequency 230 VAC ±2 %, 50 Hz ±0.1 %
Operating Temperature Up to ~65 °C, derated above 25 °C
