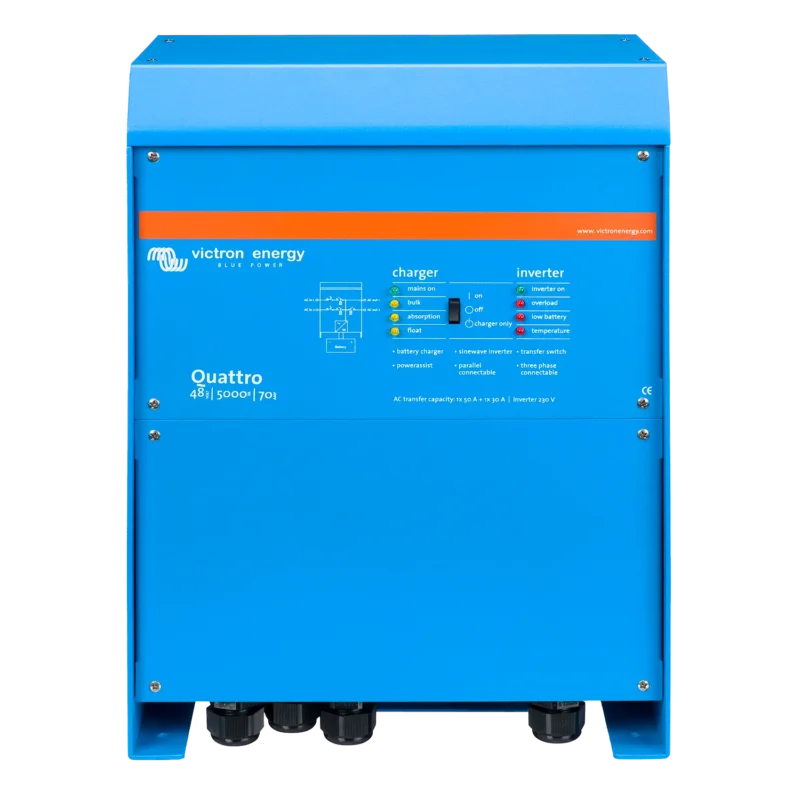

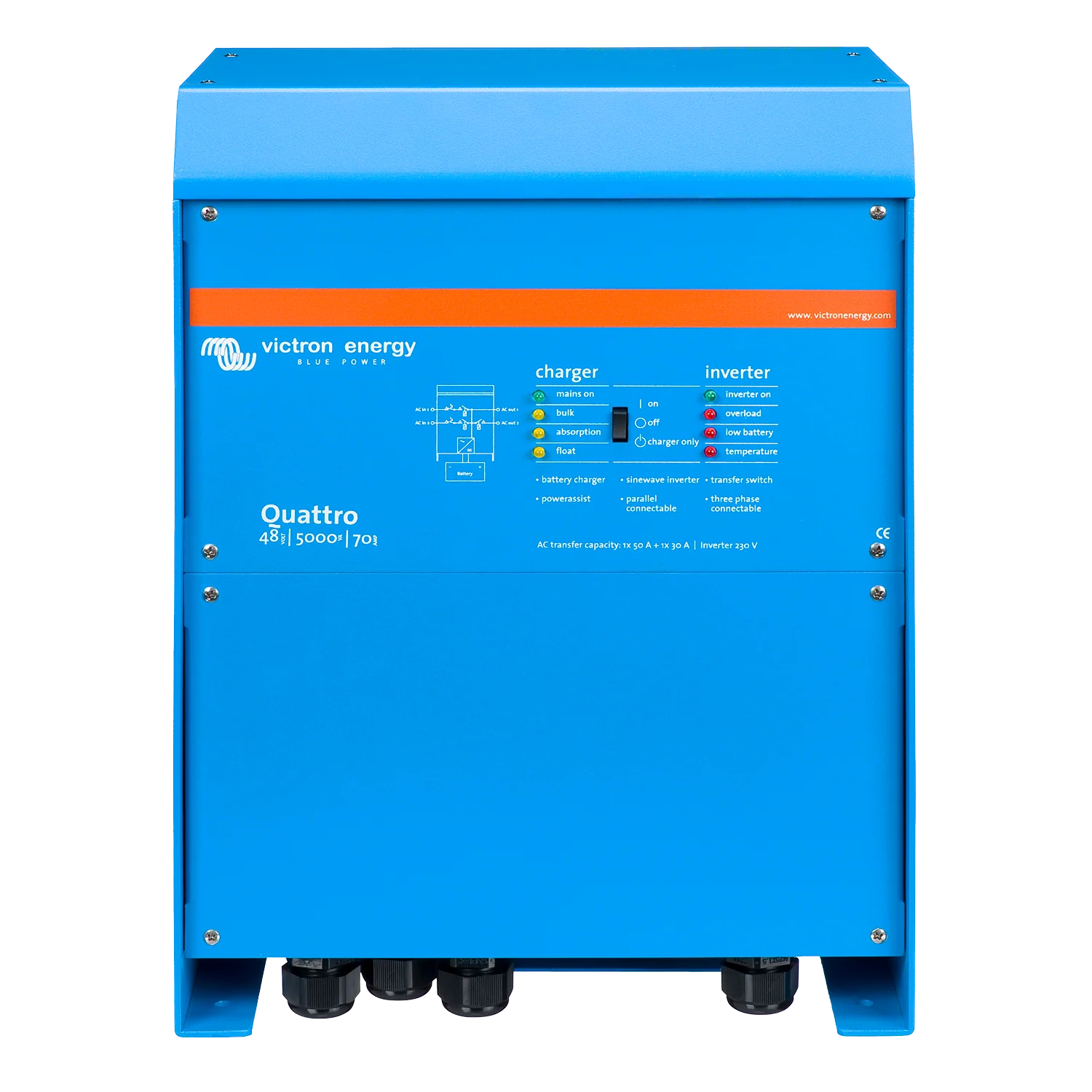

Victron Quattro 5 kVA 48 V Inverter-Charger gives you reliable backup and hybrid power for off-grid, solar or generator-linked systems. It converts battery DC power to clean AC power. It charges your batteries when AC input is available. It switches between AC sources automatically. It protects sensitive loads during grid failures. It works with lead-acid and lithium batteries.
Key Features
• Dual AC inputs to accept grid and generator power without manual switching
• Two AC outputs: one backed up (“no-break”) load for critical appliances, the other for non-critical loads
• PowerAssist and PowerControl functions to prevent overload on AC sources
• Pure sine wave output for sensitive electronics
• Parallel or three-phase operation for scaling up power
victron quattro 5kva 48v Technical Data Table
| Specification | Detail |
|---|---|
| Nominal DC Input Voltage | 48 V (range ~38-66 V) |
| Continuous Output Power (25 °C) | 5,000 VA / ~4,000 W |
| Peak Power | ~10,000 W |
| AC Output Voltage | 230 V AC ±2 % |
| AC Input Voltage & Frequency | 187-265 VAC, 45-65 Hz |
| Charge Current | 70 A |
| Efficiency (max) | ~94-95 % |
| Dimensions (HxWxD) | 470 × 350 × 280 mm |
| Weight | ≈ 30 kg |
| Operating Temperature | -20 to +60 °C |
Buy victron quattro 5kva 48v Inverter-Charger from SolarShop Africa
