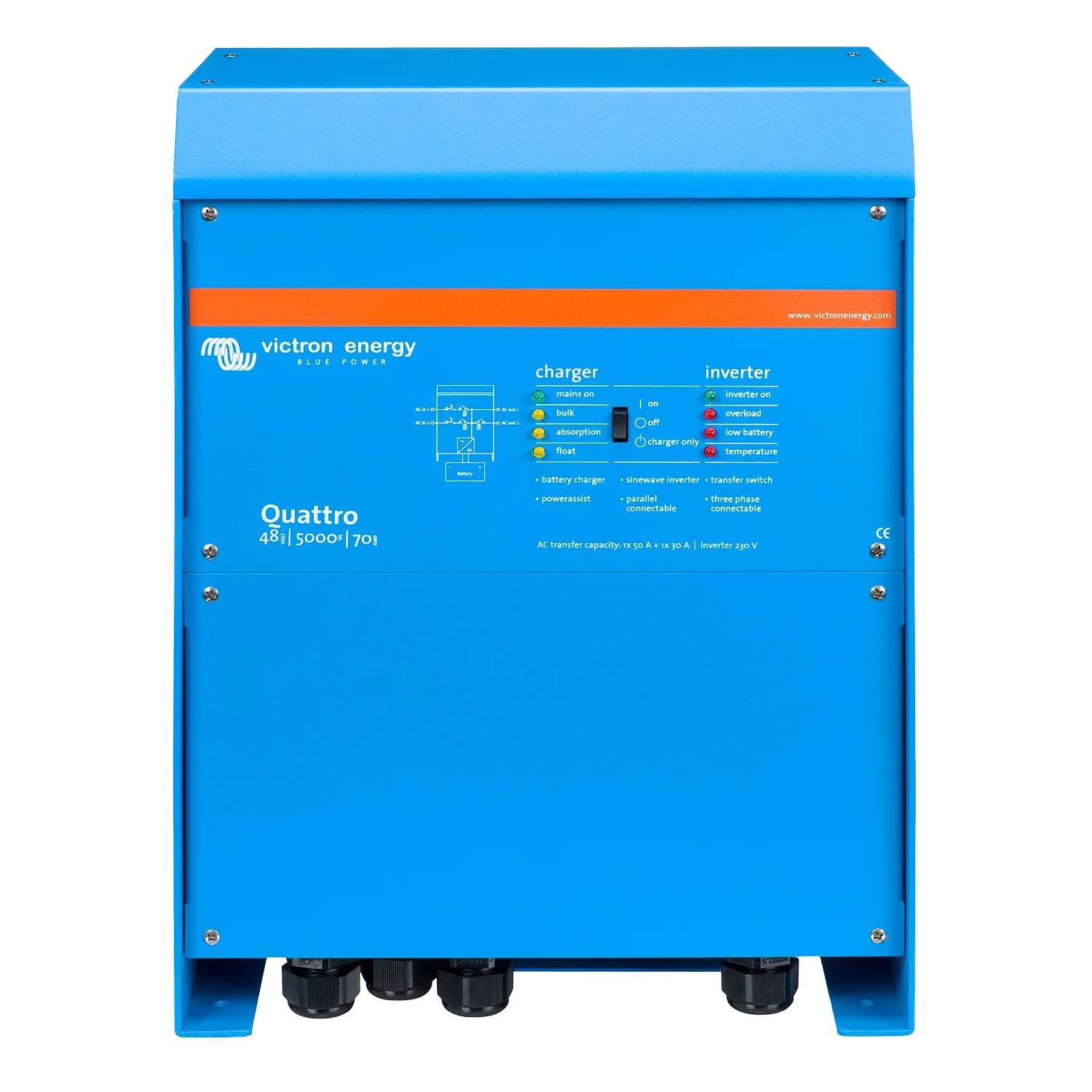

VICTRON QUATTRO 10kVA 48V INVERTER CHARGER gives your system strong backup and hybrid power. It delivers 10,000 VA continuous output at 230 VAC. It switches automatically between grid, generator and battery power. It charges your batteries with adaptive multi-stage charging. It supports parallel, split-phase or three-phase configurations. Comfortable for both lithium and lead-acid batteries.
Key Features
• Dual AC inputs for grid and generator with automatic source selection
• Pure sine wave output for sensitive electronics
• PowerAssist and PowerControl to avoid overloads on external AC sources
• Dual AC outputs, one for critical loads with no-break transfer‐time <20 ms
• High capacity charger (≈ 140 A) to refill battery bank quickly
• Scalable: multiple units in parallel, split- or three-phase setup possible
Technical Data Table
| Specification | Detail |
|---|---|
| Nominal DC Input Voltage | 48 V DC |
| DC Input Voltage Range | 38-66 V |
| Continuous Output Power (25 °C) | 10,000 VA / ~8,000 W |
| Output Voltage | 230 VAC ±2 % |
| AC Input Voltage Range | 187-265 VAC |
| AC Input Frequency Range | 45-65 Hz |
| Peak / Surge Power | ≈ 20,000 W |
| Efficiency (max) | ≈ 96 % |
| Charger Current | 140 A |
| Dimensions (HxWxD) | 470 × 350 × 280 mm |
| Weight | ~ 45 kg |
