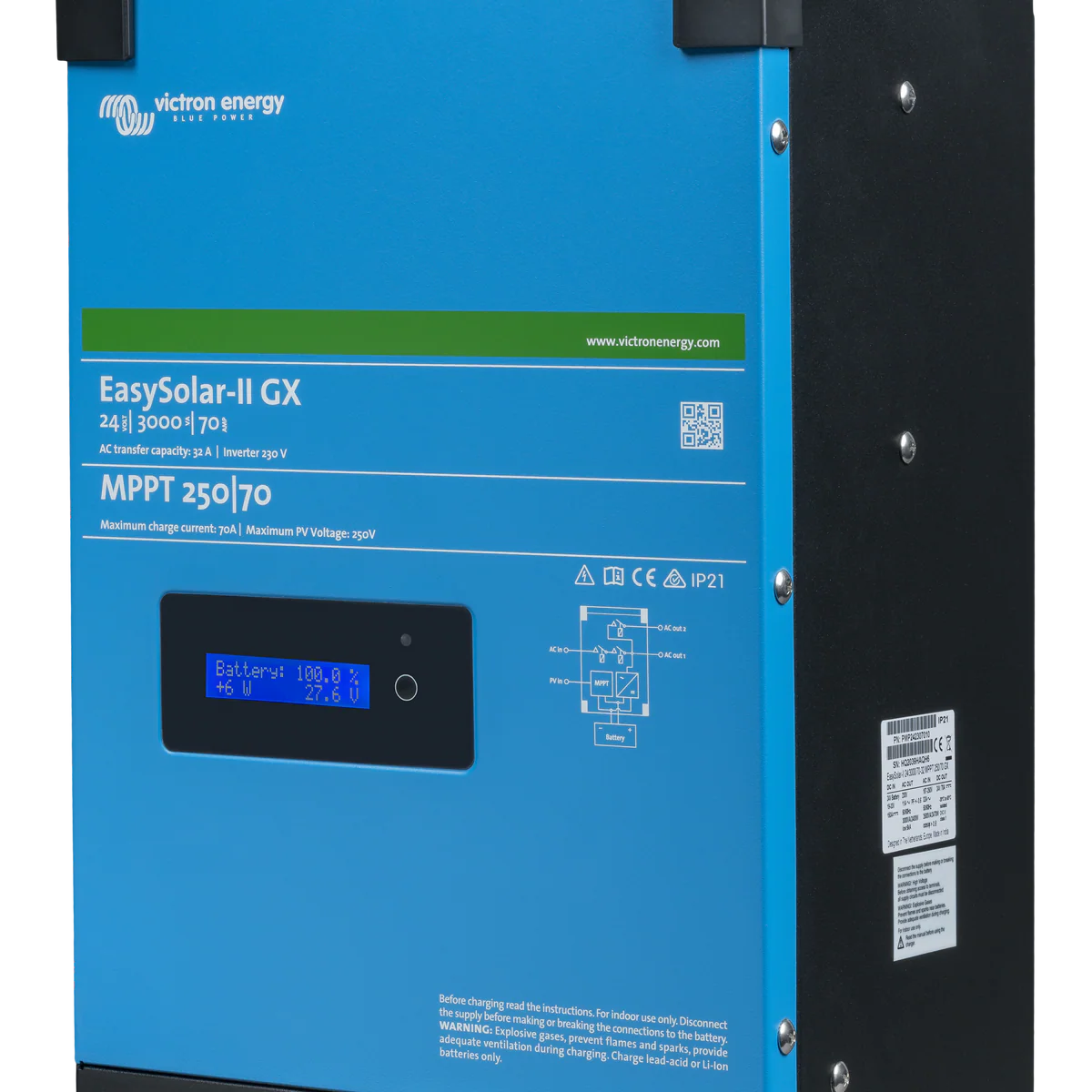

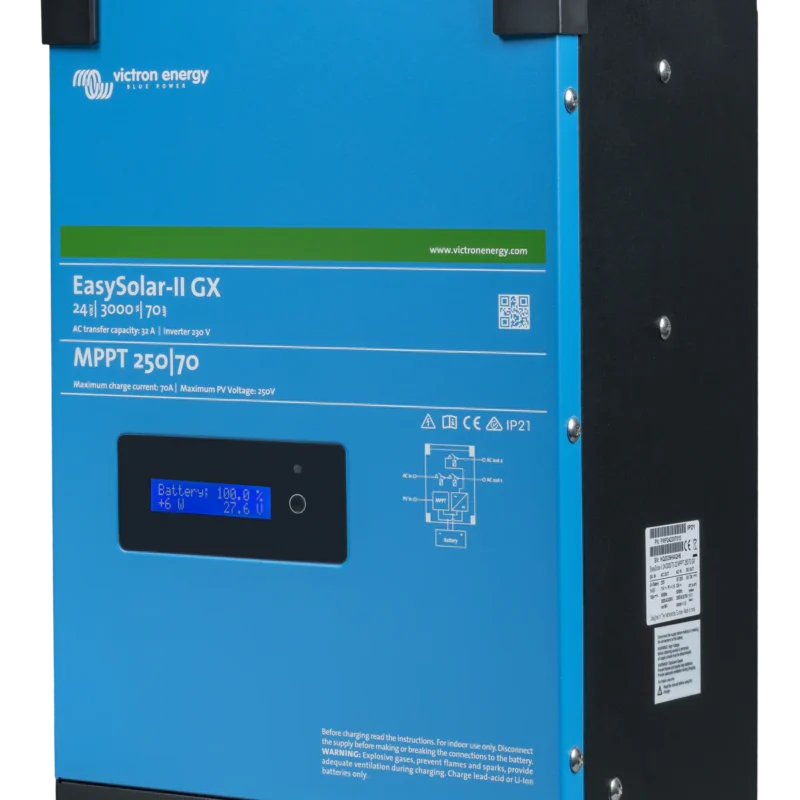

victron easysolar-ii 3kva 24v hybrid inverter charger, solar charger, inverter/charger, and a control unit in one case. You get 2,400 W continuous AC output, automatic transfer between solar, battery, and AC grid or generator input, MPPT solar tracking for up to 2 kW PV, and full remote monitoring via GX device. You manage battery charging intelligently, protect loads, and reduce wiring complexity.
victron easysolar-ii 3kva 24v hybrid inverter charger Key Features
• 3 kVA / 2.4 kW AC output at 25 °C, drops at higher temps
• SmartSolar MPPT 250/70-Tr charge controller, supports up to 2,000 W PV input, max 250 V open-circuit
• PowerControl & PowerAssist: limits AC input current, avoids overload when grid or generator is weak
• Full GX interface: display, remote monitoring, VRM support, USB, Ethernet, VE.Direct etc
• Automatic transfer switch 32 A, surge power ≈ 5,500 W
• Charging current up to 70 A, supports absorption / float / storage charge profiles
Technical Data Table
| Specification | Value |
|---|---|
| Nominal DC Battery Voltage | 24 V |
| Input Voltage Range DC | 19-33 V |
| Continuous AC Output Power (25 °C) | 3,000 VA / ~2,400 W |
| AC Output at 40 °C / 65 °C | ~2,200 W / ~1,700 W |
| Peak / Surge AC Power | ~5,500 W |
| Max PV Input Power | 2,000 W |
| MPPT Max Input Voltage (open circuit) | 250 V |
| Max MPPT Current | 70 A |
| AC Input Voltage Range | 187-265 VAC, 45-65 Hz |
| Transfer Switch Rating | 32 A |
| Efficiency (max) | ≈ 94% |
| Zero Load Power Consumption | ~13 W, less in AES / search modes |
| Operating Temperature Range | -40 to +65 °C, fan-cooled |
| Dimensions (HxWxD) | 499 × 268 × 237 mm |
| Weight | ~25-26 kg |
