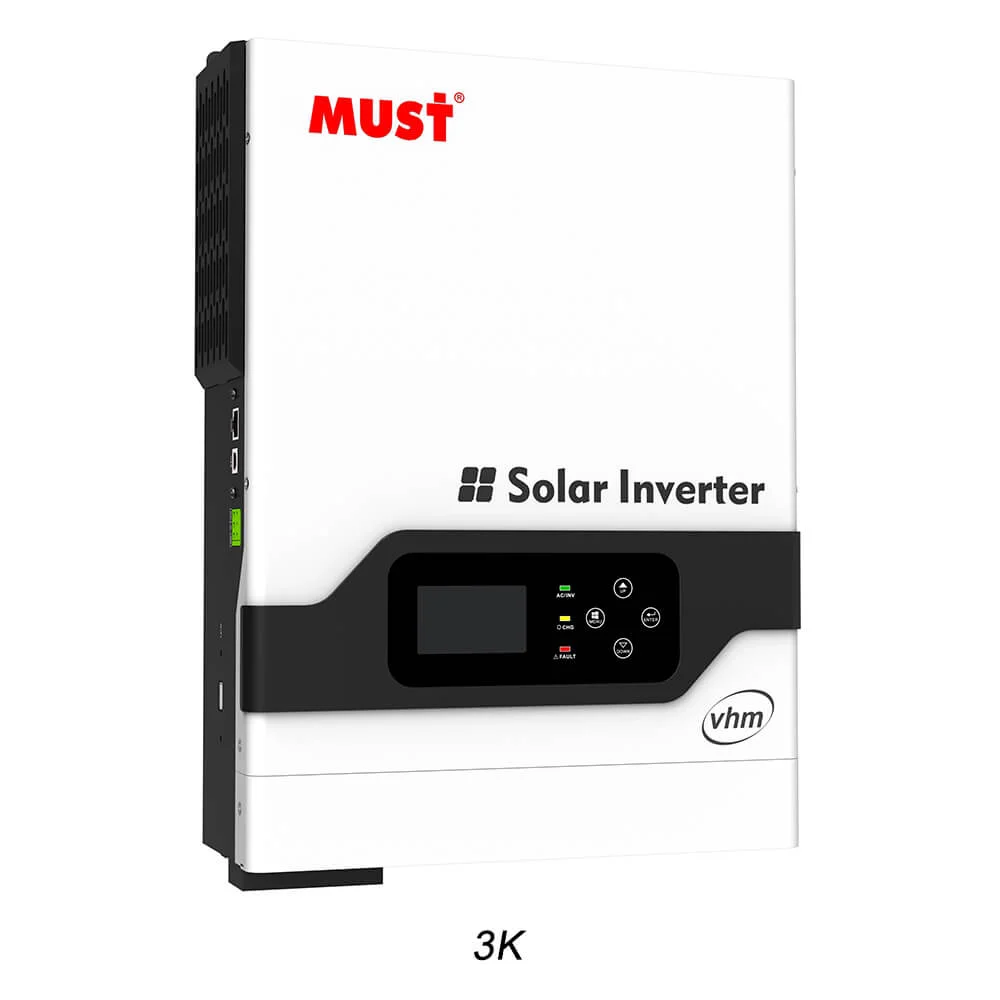

MUST 3KW 24V/80A Hybrid Solar Inverter description
MUST 3KW 24V/80A Hybrid Solar Inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support in portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
MUST 3KW 24V/80A Hybrid Solar Inverter Features:
- Pure sine wave solar inverter
- Output power factor
- Built-in 80A MPPT solar charger
- Built-in anti-dust kit for harsh environment
- Optional: Support parallel operation up to 3 units (available for 3KW-5.5KW 48V)
- WIFI remote monitoring (optional)
- Compatible to generator
MUST 3KW 24V/80A Hybrid Solar Inverter Technical data
| MODEL | PV18-2024 VHM | PV18-3024 VHM | PV18-3048 VHM | PV18-4048 VHM | PV18-5048 VHM | PV18-5548 VHM |
|---|---|---|---|---|---|---|
| Nominal Battery System Voltage | 24VDC | 48VDC | ||||
| INVERTER OUTPUT | ||||||
| Rated Power | 2000W | 3000W | 3000W | 4000W | 5000W | 5500W |
| Surge Power | 4000W | 6000W | 6000W | 8000W | 10000W | 11000W |
| Waveform | Pure Sine Wave | |||||
| AC Voltage Regulation (Batt.Mode) | (220VAC~240VAC)±5% | |||||
| Inverter Efficiency(Peak) | 93% | |||||
| Transfer Time | 10ms (UPS / VDE4105) 20ms (APL) | |||||
| AC INPUT | ||||||
| Voltage | 230VAC | |||||
| Selectable Voltage Range | 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VDE4105) | |||||
| Frequency Range | 50Hz / 60Hz(Auto sensing) | |||||
| BATTERY | ||||||
| Normal Voltage | 24VDC | 48VDC | ||||
| Floating Charge Voltage | 27.4VDC | 54.8VDC | ||||
| Overcharge Protection | 30VDC | 60VDC | ||||
| SOLAR CHARGER & AC CHARGER | ||||||
| Maximum PV Array Open Circuit Voltage | 145VDC | |||||
| PV Array MPPT Voltage Range | 30~130VDC | 60~130VDC | ||||
| Standby Power Consumption | 2W | |||||
| PV Input Power | 2000W | 4000W | ||||
| Maximum Solar Charge Current | 80A | |||||
| Maximum Effciency | 98% | |||||
| Maximum AC Charge Current | 20A/30A | 60A | ||||
| Maximum Charge Current | 80A | 140A | ||||
| MECHANICAL SPECIFICATIONS | ||||||
| Machine Dimensions(W*H*D)(mm) | 272*355*100 | 297.5*468*125 | ||||
| Package Dimensions(W*H*D)(mm) | 540*395*241 | 638*395*241 | ||||
| Net Weight(kg) | 10 | 11 | 13.3 | |||
| Gross Weight(kg) | 11.7 | 12 | 16.4 | |||
| OTHER | ||||||
| Humidity | 5% to 95% Relatiy Humidity (Non-condensing) | |||||
| Operating Temperature | 0°C~50°C | |||||
| Storage Temperature | -15°C ~60°C | |||||
