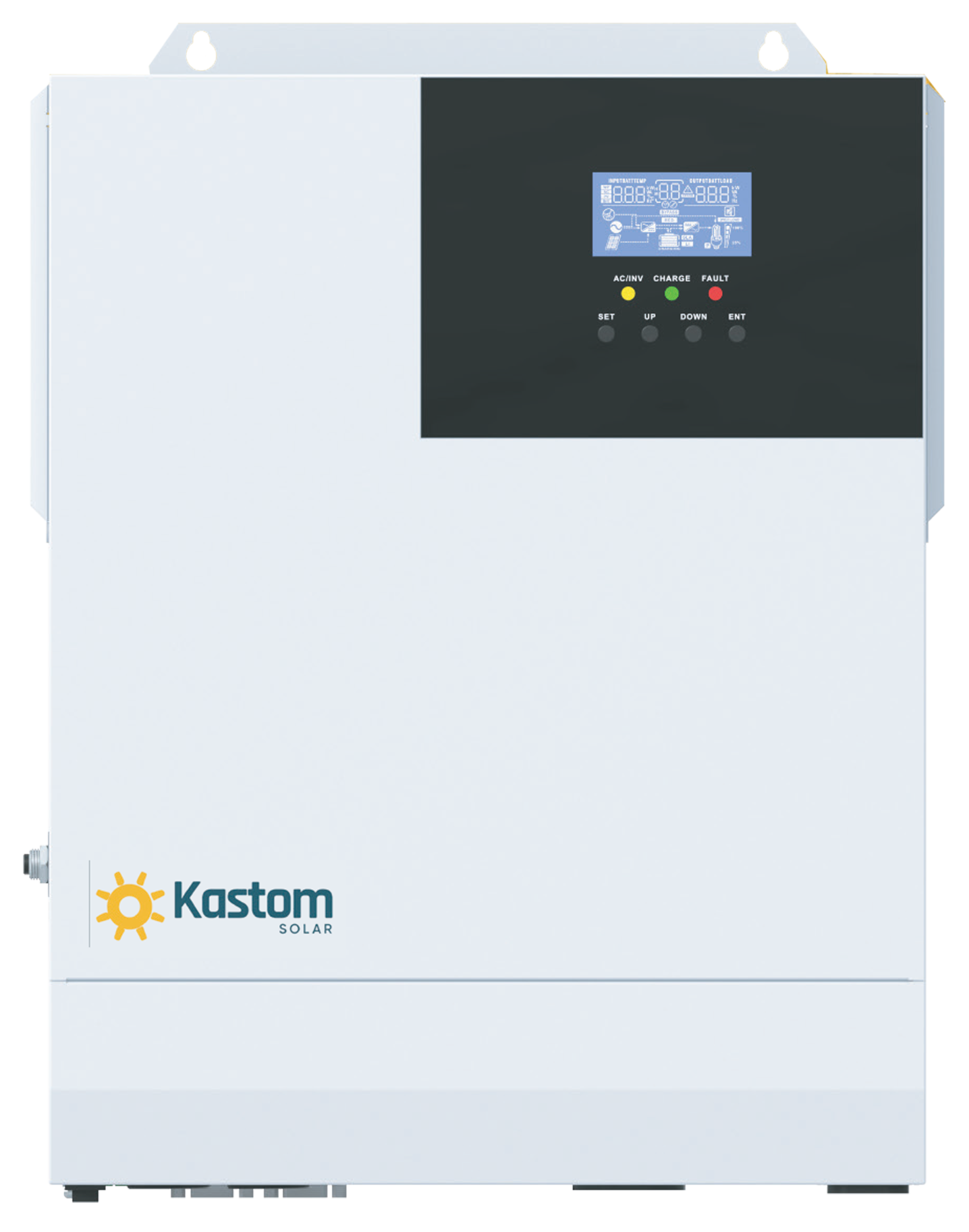

Kastom Solar 48V/5kW Parallel Connection Off-Grid Solar Charge Inverter
Kastom Solar 48V/5kW Solar Inverter is a robust and efficient solution for off-grid solar systems. It offers reliable power conversion and management, allowing users to harness solar energy effectively.
Key Features:
- High Power Output: With a 5kW output capacity, it can support various household and small-scale industrial applications.
- Parallel Connection: Enables scalability and redundancy by allowing multiple units to work together.
- Battery Compatibility: Compatible with a wide range of battery types, offering flexibility to users.
- MPPT Charging: Maximizes solar power utilization for efficient charging.
- Surge Power: Provides extra power for brief high-demand situations, ensuring smooth operation.
- Advanced Protection: Incorporates multiple protection mechanisms to safeguard the system and connected devices.
- Communication Options: Offers multiple communication interfaces for easy monitoring and control.
Kastom Solar 48V/5kW Solar Inverter Technical Specifications:
| Feature | Description |
|---|---|
| Input Voltage | 48V |
| Output Power | 5kW |
| Charging Mode | MPPT |
| Parallel Connection | Supported, up to 6 units |
| Battery Type Compatibility | Lead-acid, Gel, AGM, Lithium, etc. |
| AC Output | 220V/230V/240V, 50Hz/60Hz (Adjustable) |
| Surge Power | 10kW (for 10 seconds) |
| Efficiency | >93% |
| Operating Temperature Range | -20°C to 60°C |
| Protection | Overload, Short Circuit, Over Voltage, Over Temperature, etc. |
| Communication Interface | RS485, USB, WiFi (optional) |
| Display | LCD Display |
