Growatt is the No.1 residential solar inverter supplier and is also one of the top 3 PV inverter suppliers for distributed generation solar energy since 2018 and ranks among global top 10 PV inverter suppliers.
The World’s Manufacturer provides of residential, commercial and utility photovoltaic inverters, energy storage, microgrid systems and smart energy management solutions.
Growatt SPF 2000-5000TL HVM series off grid solar inverter is integrated with a MPPT solar charge controller. Transformerless design provides reliable power conversion in compact size.

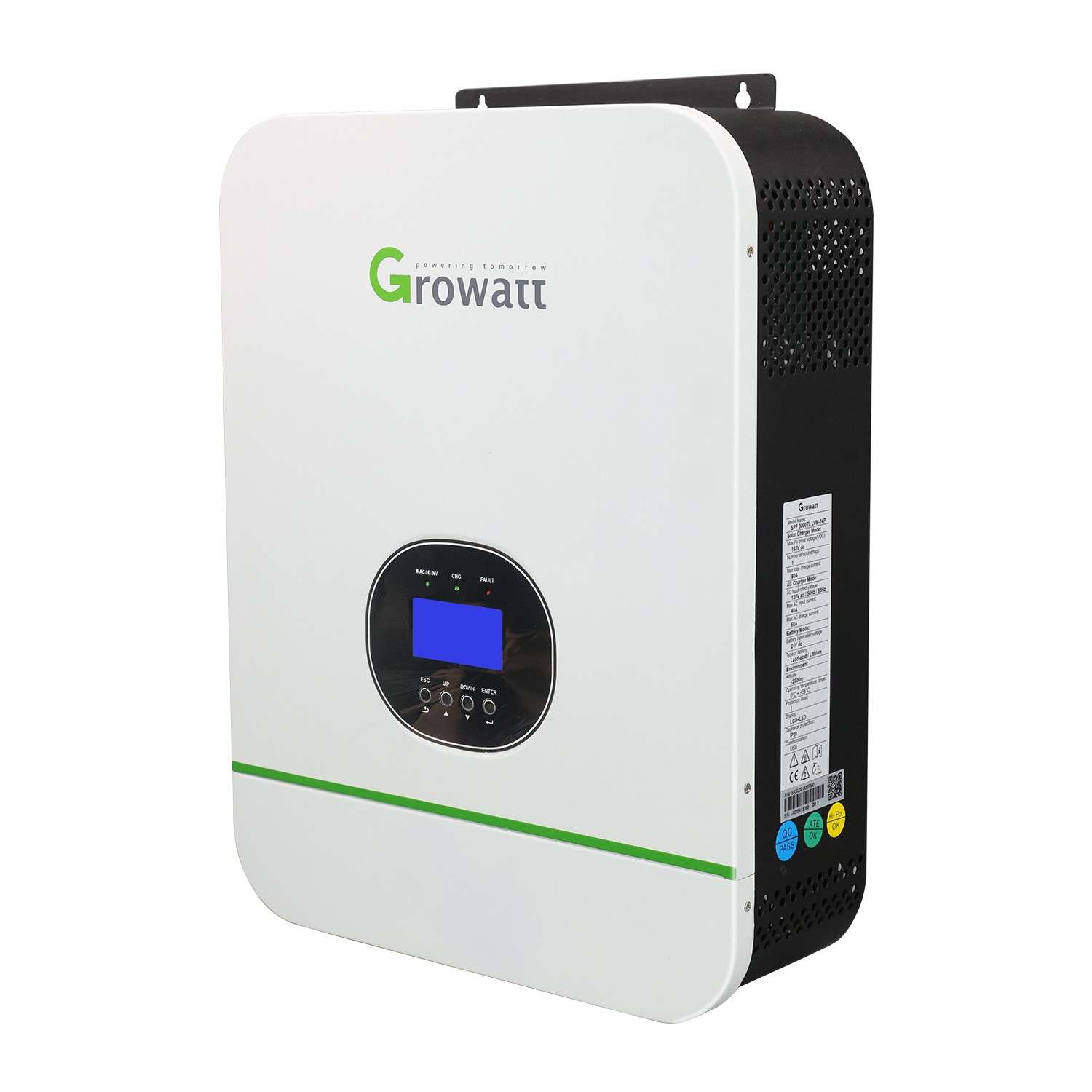

Off-grid inverter Growatt SPF 3000TL HVM-24 for backup power and self-consuption application
- Battery type Lead-acid
- Integrated MPPT charge controller
- Battery charging priority can be set
- Load supply priority can be set
- Optional WIFI/ GPRS remote monitoring
- Parallel operation up to 6 units only available for 4-5KVA
Download
Growatt SPF 3000TL HVM-24 – Datasheet
Technical Data
Model | Growatt SPF 3000 TL HVM-24 |
Battery Voltage | 24VDC |
Battery Type | Lithium/Lead-acid |
Rated Power | 3000VA/3000W |
Parallel Capability | No |
AC Voltage Regulation (Battery Mode) | 230VAC ± 5% @ 50/60Hz |
Surge Power | 6000VA |
Efficiency | 93% |
Waveform | Pure sine wave |
Maximum PV Array Power | 1800W |
MPPT Range @ Operating Voltage | 60VDC ~ 115VDC |
Number of Independent MPP Trackers/Strings Per MPP Tracker | 1/1 |
Maximum PV Array Open Circuit Voltage | 145VDC |
Maximum Solar Charge Current | 30A |
AC Charge Current | 15A |
AC Input Voltage | 230 VAC |
Dimensions | 315x400x130mm | 8.5kg |
Operating Temperature | 0°C – 55°C |
Storage Temperature | -15°C – 60°C |
