Product Details and Features.

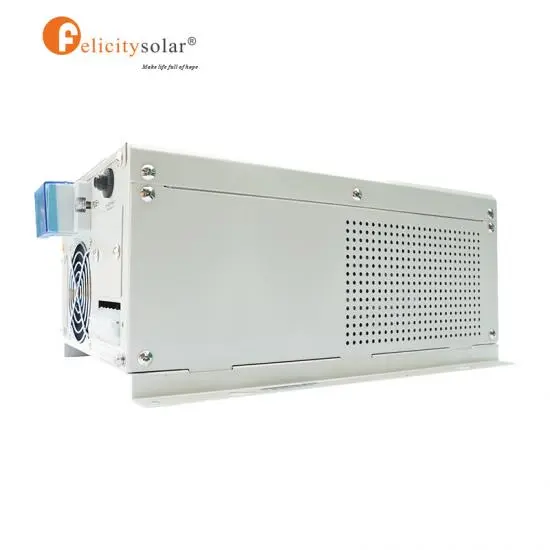

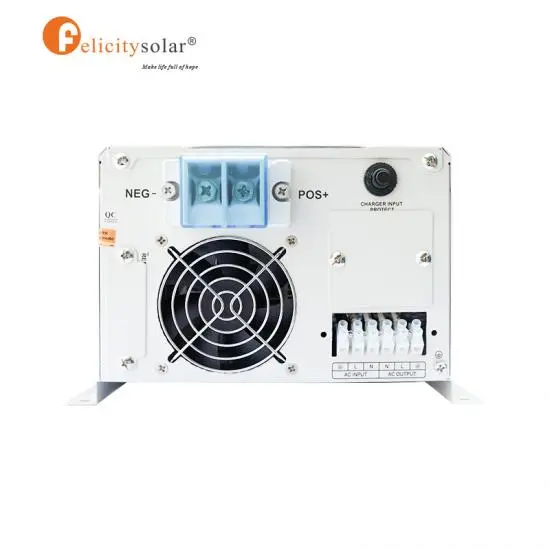

FelicitySolar Inverter Charger 3.5KVA 24V (3KW) comes along with several features and advantages as outlined below:-
- Low decibel cooling fan, high efficiency no noise.
- Fault alarm warning.
- Easy installation.
- Remote control.
- Pure sine wave output voltage.
- Widely voltage frequency range.
- FelicitySolar Inverter Charger 3.5KVA 24V (3KW) Three stages charge, prolong battery lifespan.
Technical Specifications.
| Solar Inverter IVPS | |||||||||||||||||
| Model | 3524 | ||||||||||||||||
| 3500VA | |||||||||||||||||
| RatedOutputPower(W) | 3500va/3000w | ||||||||||||||||
| Norminal DC Input Voltage | 24v | ||||||||||||||||
| Charge & Line Mode Specification | |||||||||||||||||
| Norminal Input Voltage | 220Vac | ||||||||||||||||
| Low Line Disconnect | 90Vac±7Vac | ||||||||||||||||
| Low Line Re-connect AC Input Range | 100Vac±7Vac | ||||||||||||||||
| High Line Disconnect | 280Vac±7Vac | ||||||||||||||||
| High Line Re-connect | 270Vac±7Vac | ||||||||||||||||
| Output Voltage Waveform | As same as input waveform | ||||||||||||||||
| Efficiency(Line mode) | ≥95%(Rated R load, and battery is full charged) | ||||||||||||||||
| Transfer switch Rating | AC 40A | ||||||||||||||||
| Transfer time(AC to DC) | 15ms(typocal) | ||||||||||||||||
| Transfer time(DC to AC) | 15ms(typocal) | ||||||||||||||||
| Pass Through Without Battery | Yes | ||||||||||||||||
| Input Overload Current | AC 40A | ||||||||||||||||
| Norminal Output Voltage | Dependent on battery type | ||||||||||||||||
| Max Charge Voltage | DC 40A | ||||||||||||||||
| Charge Current Regulation | Charge current adjustable:0A,10A,20A,30A,40A | ||||||||||||||||
| Breaker Size | Dependent on battery type or Self-defined | ||||||||||||||||
| Over Charge protection | Yes | ||||||||||||||||
| Algorithm | AGM | ||||||||||||||||
| Flood | |||||||||||||||||
| Self | |||||||||||||||||
| Inverter Mode Specification | |||||||||||||||||
| Output Voltage Waveform | Pure Sine Wave | ||||||||||||||||
| Power Factory | 1 | ||||||||||||||||
| Nominal Output Voltage | 220Vac±5% | ||||||||||||||||
| Nominal Output Frequency(Hz) | 50±0.3Hz/60±0.3Hz(adjustable) | ||||||||||||||||
| Over-load Protection(SMPS) | 60s@≥150% load; 120s@105%-150% load | ||||||||||||||||
| Surge Rating | 2*rated power for 5 seconds | ||||||||||||||||
| Capable of starting electric | Yes | ||||||||||||||||
| Output Short Circuit Protection | Yes | ||||||||||||||||
| Output overlaod current | AC 30A | ||||||||||||||||
| Nominal DC Input Voltage | 24Vdc | ||||||||||||||||
| Low Battery Alarm | 11.5V/23V/46Vdc@load<50%;11V/22V/44Vdc@load>=50% | ||||||||||||||||
| Low battery Recovery | 11.75V/23.5V/47Vdc@load<50%;11.5V/23V/46Vdc@load>=50% | ||||||||||||||||
| Low DC Input Shut-down | 10.75V/21.5V/43Vdc@load<50%;10.5V/21V/42Vdc@load>=50% | ||||||||||||||||
| High DC Input Alarm& Fault | 15.75Vdc±0.4/31.50Vdc±0.4V/63Vdc±0.4V | ||||||||||||||||
| High DC Input Recovery | 15.5Vdc±0.4/31.0Vdc±0.4V/62Vdc±0.4V | ||||||||||||||||
| Oprating Temperate | 0℃ to 40℃ | ||||||||||||||||
| Range Storage temperate | -15℃-60℃ | ||||||||||||||||
| Dimension(mm) | 570*315*300mm | ||||||||||||||||
