Deye 12 kW Hybrid Solar Inverter | Three phase Ongrid Low Voltage

Description

Deye 12Kw Hybrid Solar Inverter Three Phase 48V SUN-12K-SG04LP3-EU | Hybrid On-grid 2 -MPPT

Deye 12Kw Hybrid Solar Inverter Three Phase 48V is a heavy duty machined designed for commercial small systems or big residences. The inverter features multiple power supply models making it one of the most admired inverter in 2024. It features advanced Duo MPPT technology for optimal energy conversion and efficiency. This inverter is designed to maximize solar power utilization in residential and commercial applications, ensuring reliable performance and seamless integration with the grid.

Deye 12Kw Hybrid Solar Inverter Three Phase 48V SUN-12K-SG04LP3-EU General Specifications

Feature	Description
Model	Deye 12kW Three Phase Hybrid Ongrid Solar Inverter
Phase	Three
Battery Voltage	48V
Maximum DC Input Power	15000W
Rated AC Output Power	12000W
Maximum AC Output Power	13200W
MPPT Trackers	Duo
Battery Type	Lead-acid or Lithium-ion
Operating Temperature	-20°C to 60°C
Dimensions (mm)	600 x 650 x 200
Weight	85 kg

Deye 12Kw Hybrid Solar Inverter Three Phase 48V | Hybrid On-grid Features

1. Duo MPPT Technology: Maximizes energy harvesting efficiency by optimizing the performance of multiple solar arrays.
2. High Power Output: With a rated AC output power of 12kW and maximum AC output power of 13.2kW, it ensures ample power supply for various applications.
3. Wide DC Input Range: Supports a maximum DC input power of 15kW, allowing flexibility in solar panel configurations.
4. Battery Compatibility: Compatible with both lead-acid and lithium-ion batteries, providing options for energy storage.
5. Advanced Protection Features: Includes overload protection, short-circuit protection, over-temperature protection, and anti-islanding protection for enhanced safety.
6. Grid-Tie Functionality: Enables seamless integration with the utility grid, allowing for excess energy export and grid backup.
7. LCD Display: Provides real-time monitoring of system performance and status for easy management.
8. Compact Design: Compact and lightweight design for easy installation and space-saving.
9. Colorful Touch LCD: Intuitive user interface with a colorful touch LCD for convenient operation.
10. IP65 Protection Degree: Ensures durability and resistance to dust and water ingress for outdoor installations.

Deye 12Kw Hybrid Solar Inverter Three Phase 48V -Hybrid On-grid 2 MPPT Description

Higher yield  / Safe & Reliable / Smart / User-friendly

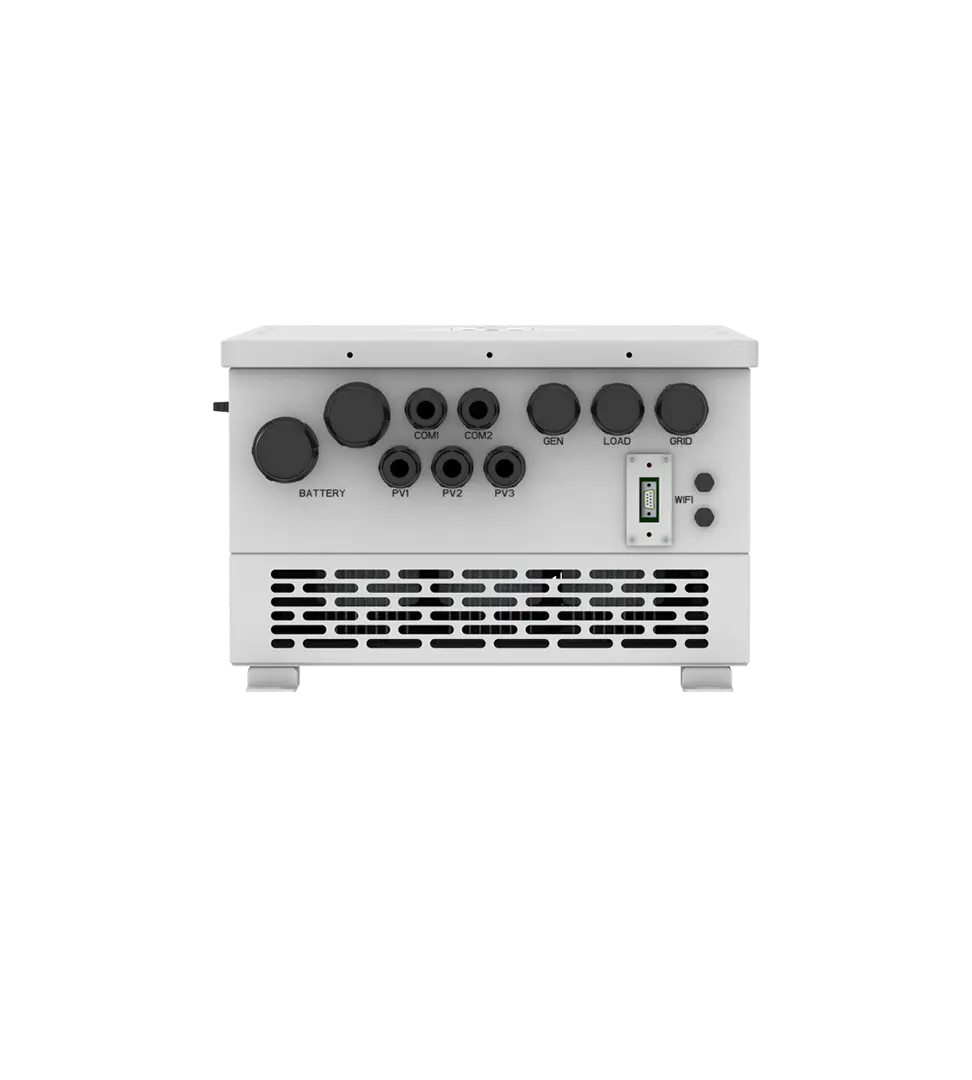

SUN 5/6/8/10/12K-SG is brand new three phase hybrid inverter with low battery voltage of 48V, ensuring the system safe and reliable. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.

It is equipped with RS485 / CAN port for battery communication

Deye 12Kw Hybrid Solar Inverter Three Phase 48V – Hybrid On-grid Remote shutdown function

Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shut down immediately when the accident occurs. Setting parameters and FW update remotely, which makes PV plant O&M easier.

• 48V low voltage battery, transformer isolation design
• 6 time periods for battery charging/discharging
• Max. charging/discharging current of 240A
• Max.10pcs parallel
• DC coupled and AC coupled to retrofit existing solar system
• Support storing energy from diesel generator
• Supports three-phase unbalanced output
• Unique Smart Load application and Grid peak shaving function

Deye 12Kw Hybrid Solar Inverter Three Phase 48V -Hybrid On-grid 2 MPPT Technical Specifications

Model	SUN-5K-SG04LP3-EU	SUN-6K-SG04LP3-EU	SUN-8K-SG04LP3-EU	SUN-10K-SG04LP3-EU	SUN-12K-SG04LP3-EU
Deye 12Kw | 48V Three Phase Solar Inverter Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	40~60V
Max. Charging Current (A)	120A	150A	190A	210A	240A
Max. Discharging Current (A)	120A	150A	190A	210A	240A
Charging Curve	3 Stages / Equalization
External Temperature Sensor	Yes
Charging Strategy for Li-Ion Battery	Self-adaption to BMS



Deye 12Kw Hybrid Solar Inverter Three Phase 48V PV String Input Data
Max. DC Input Power (W)	6500W	7800W	10400W	13000W	15600W
Rated PV Input Voltage (V)	550V(160V～800V）
Start-up Voltage (V)	160V
MPPT Range (V)	200V-650V
Full Load DC Voltage Range (V)	350V-650V
PV Input Current (A)	13A+13A			26A+13A
Max. PV ISC (A)	17A+17A			34A+17A
Number of MPPT / Strings per MPPT	2/1+1			2/2+1



Deye 12Kw Hybrid Solar Inverter Three Phase 48V AC Output Data
Rated AC Output and UPS Power (W)	5000W	6000W	8000W	10000W	12000W
Max. AC Output Power (W)	5500W	6600W	8800W	11000W	13200W
Peak Power (off grid)	2 times of rated power, 10 S
AC Output Rated Current (A)	7.6	9.1	12.1	15.2	18.2
Max. AC Current (A)	11.4	13.6	18.2	22.7	27.3
Max. Continuous AC Passthrough (A)	45A
Output Frequency and Voltage	50/60Hz;3L/N/PE 220/380Vac，230/400Vac
Grid Type	Three Phase
Current Harmonic Distortion	THD<3% (Linear load<1.5%)



Deye 12Kw | 48V Three Phase Solar Inverter Efficiency
Max. Efficiency	97.60%
Euro Efficiency	97.00%
MPPT Efficiency	99.90%



Deye 12Kw | 48V Three Phase Solar Inverter Protection
PV Input Lightning Protection	Integrated
Anti-islanding Protection	Integrated
PV String Input Reverse Polarity Protection	Integrated
Insulation Resistor Detection	Integrated
Residual Current Monitoring Unit	Integrated
Output Over Current Protection	Integrated
Output Shorted Protection	Integrated
Output Over Voltage Protection	Integrated
Surge protection	DC Type II / AC Type II



Deye 12Kw Hybrid Solar Inverter Three Phase 48V Certifications and Standards
Grid Regulation	CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11
Safety EMC / Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2



Deye 12Kw Hybrid Solar Inverter Three Phase 48V General Data
Operating Temperature Range (℃)	-45~60℃, >45℃ Derating
Cooling	Smart cooling
Noise (dB)	<45 dB
Communication with BMS	RS485; CAN
Weight (kg)	33.6
Size (mm)	422W×699.3H×279D
Protection Degree	IP65
Installation Style	Wall-mounted
Warranty	5 years

Deye 12Kw Hybrid Solar Inverter Three Phase -Hybrid On-grid 2 MPPT best deals only at Solarshop Africa

Checkout: Deye 12 Kw Hybrid ongrid three-phase inverter
