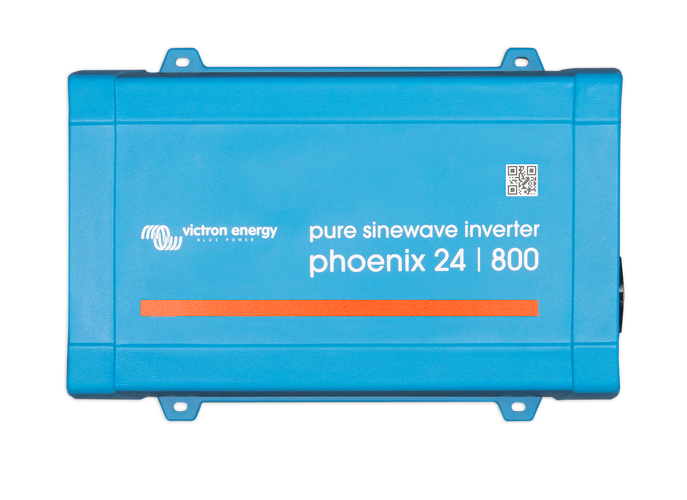

Victron Phoenix 800 VA 24 V Inverter transforms 24 V DC battery power into stable 230 V AC (or 120 V AC version, depending on market), delivering clean, pure sine wave output suitable for sensitive electronics, communication gear, and everyday appliances. Equipped with a VE.Direct interface for system monitoring and configuration, plus an ECO mode for energy saving, this compact inverter is ideal for off-grid solar, telecommunications, mobile installations, and backup power systems. Rugged protection features ensure reliability in challenging environments.
Key Features
-
Pure sine wave AC output — safe for sensitive devices (computers, audio, medical)
-
800 VA continuous output (approx. 640 W rated for mixed loads)
-
Surge / peak capability to handle startup loads
-
VE.Direct communication interface for monitoring, firmware updates, and parameter customization
-
ECO or standby mode — reduced power draw under light load
-
Adjustable low-voltage alarm, cut-off, and dynamic cut-off behavior
-
Output voltage window selectability and frequency options (50 Hz / 60 Hz)
-
Protection: over-load, short circuit, over/under voltage, temperature
-
Very low idle consumption (< 10 W, < 1 W in ECO mode)
-
Compact and durable design for flexible installation
Technical Data Table
| Parameter | Specification |
|---|---|
| DC Input Voltage | 24 V (nominal) |
| Input Range | ~18.6 to 34.0 V DC |
| Continuous Output (VA) | 800 VA |
| Continuous Output (W for mixed loads) | ~640 W |
| Surge / Peak Output | Typically ~1,600 W (2×) |
| Output Voltage (Nominal) | 230 V AC ±3 % (or region variant) |
| Output Frequency | 50 Hz (optionally 60 Hz in some markets) |
| Efficiency (Peak) | > 90 % (typical) |
| No-Load / Idle Consumption | < 10 W (less than 1 W in ECO mode) |
| Protections | Overload, short circuit, over/under voltage, overtemperature |
| Communication Interface | VE.Direct |
| Modes | ECO / Standby modes, dynamic cut-off, customizable thresholds |
| Dimensions / Weight | As per standard Victron Phoenix 250–1200 VA range (see official datasheet) |
| Warranty | 5 years (typical for Phoenix series) |
